MOPAR/DANA 60,2.36",REAR PB,13" DRILLED ROTORS,RED

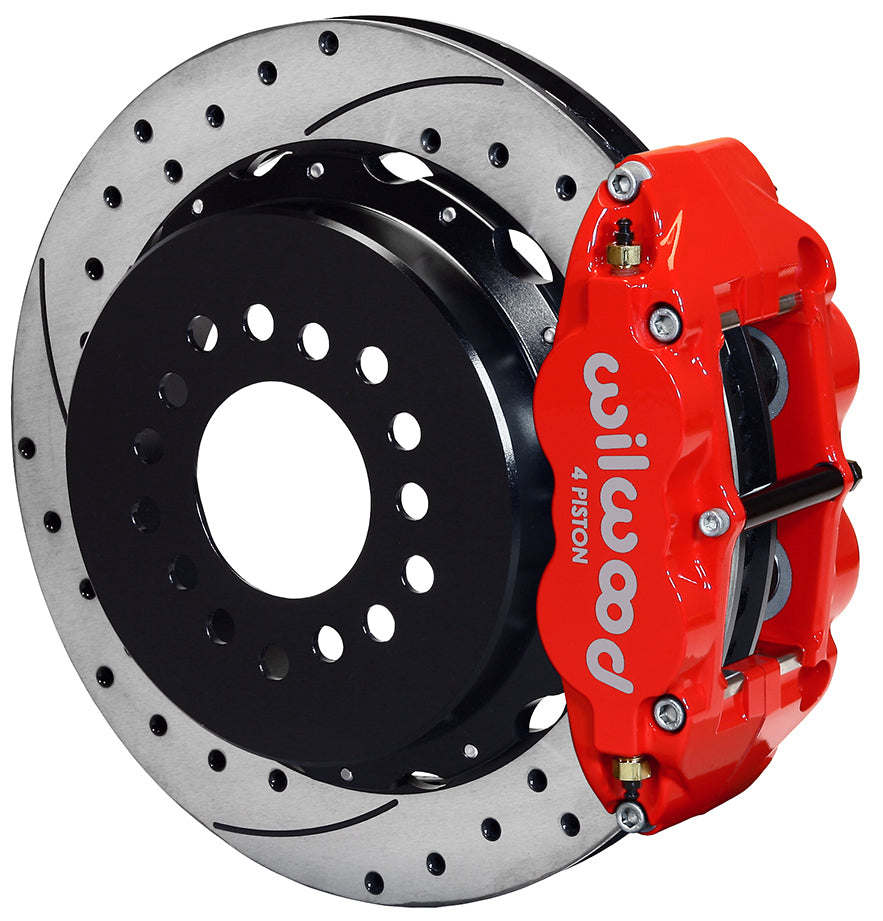

Brand New Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit Featuring 12.88" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-9222-DR).

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

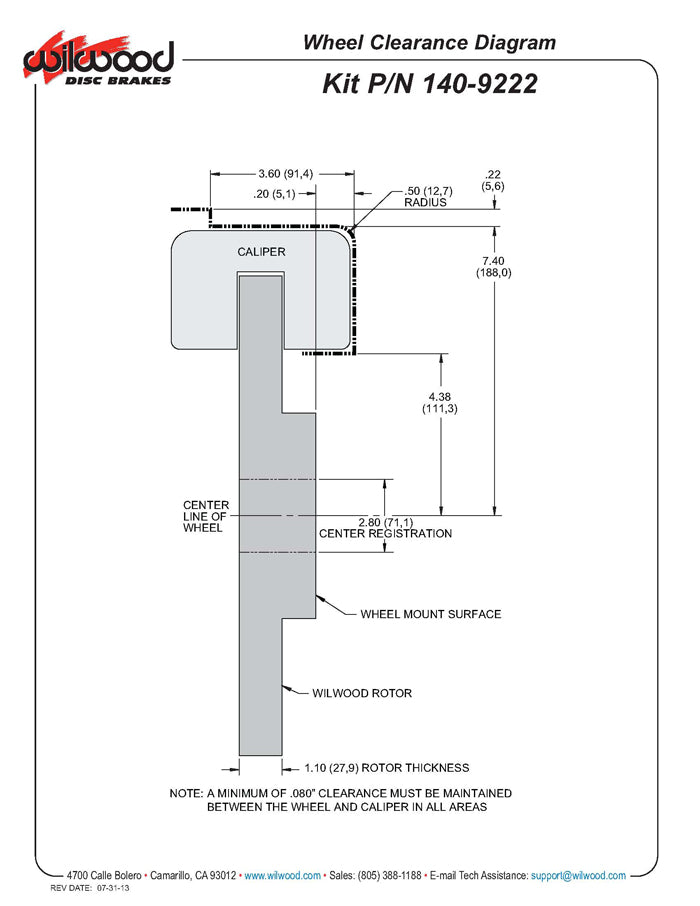

NOTE: This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.36".

Compatible with:

• Mopar 8-3/4 & Dana 60 Rear End with Non-Adjustable Snap Ring Style Bearings (MOPAR MO400,STRANGE A1022, MOSER 9400M)

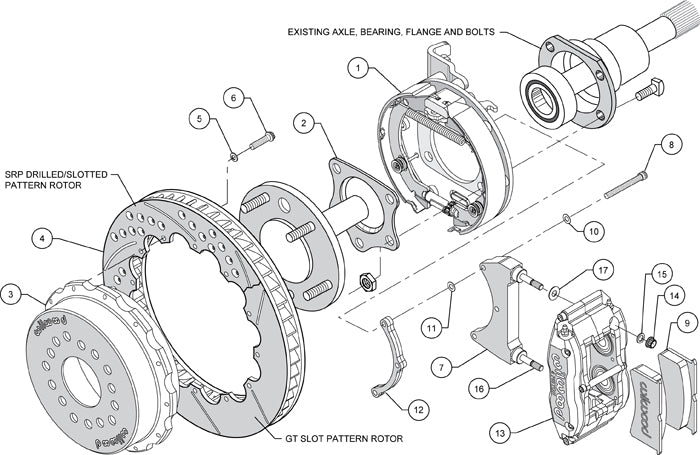

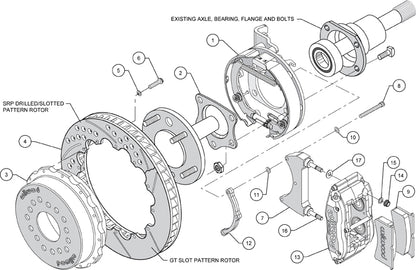

• 3.188"x1.594"x2.203" Mounting Pattern &  2.36" Axle Offset (See Diagram Pictures)

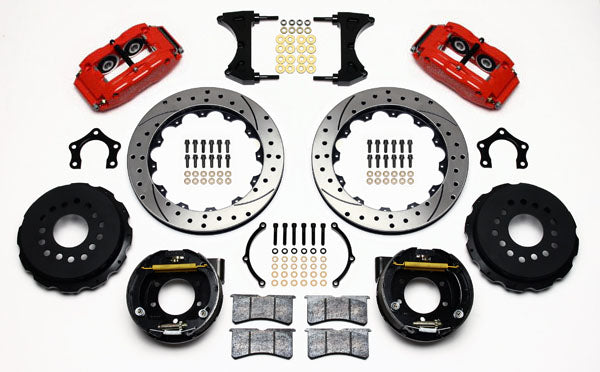

Kit includes:

• 4 Piston Forged Superlite Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 62 lbs.

You can view and download the assembly/instruction booklet here.
