TOE PLATES,PER PAIR

TOE PLATES,PER PAIR

LON 79500

$84.99
$84.99
View full details

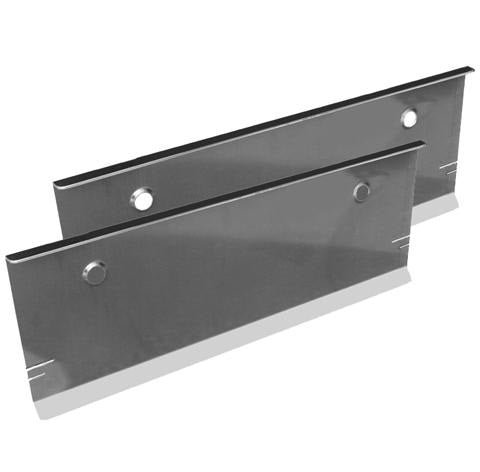

  • PAIR OF BRAND NEW LONGACRE TOE-IN PLATES
  • QUICKEST AND SIMPLEST WAY TO MEASURE TOE-IN
  • REST ONE OF THESE PLATES AGAINST THE TIRE ON EACH SIDE AND MEASURE TOE DIRECTLY USING THE 2 TAPE MEASURES, WHICH ARE INCLUDED
  • FOLDED DESIGN IS RIGID FOR ACCURACY AND STAYS PUT AGAINST THE TIRE
  • INSTRUCTIONS:
    *THIS IS A FAST WAY TO CHECK / SET FRONT END TOE
    *IT IS AFFECTED BY WHEEL OR TIRE RUNOUT
    *BE CERTAIN WHEELS RUN TRUE AND TIRES HAVE NO BULGES
    *TURN WHEELS TO STRAIGHT AHEAD - SHOULD BE DONE ON LEVEL GROUND; SET CASTER AND CAMBER FIRST
    *LEAN PLATES UP AGAINST WHEELS - FOLDED LIP GOES TO THE OUTSIDE; BE SURE THE ENTIRE PLATE IS UP AGAINST THE WHEEL
    *MEASURE FRONT WIDTH, THEN REAR - USE THE SLOTS FOR THE TAPE MEASURE; SUBTRACT ONE FROM THE OTHER FOR TOE; LARGER FRONT WIDTH MEANS TOE-OUT
    • Toe-In Gauge Parts
