Brand New 3" Aluminum Driveshafts

  • SHAFTS ARE 3" IN DIAMETER
  • LENGTH IS MEASURED CENTER OF U-JOINT TO CENTER OF U-JOINT, SHOWN IN THE IMAGE BELOW:

  • IF YOUR OLD DRIVESHAFT ISN'T AVAILABLE, OR THIS SHAFT WILL BE INSTALLED IN A NEW CAR, YOU CAN USE THE "A" MEASUREMENT SHOWN IN THE IMAGE BELOW:

  • THIS MEASUREMENT MUST BE TAKEN WITH THE CAR AT RIDE HEIGHT.
    ***IF YOU USE THE "A" DIMENSION, MAKE SURE TO LET US KNOW WHEN ORDERING, AS THIS MEASUREMENT WILL HAVE TO BE CONVERTED TO THE CENTER-TO-CENTER LENGTH
  • LIGHTWEIGHT ALUMINUM CONSTRUCTION
  • WEIGHS 40% LESS THAN STEEL
  • PRECISION BALANCED
  • EACH SHAFT INCLUDES:

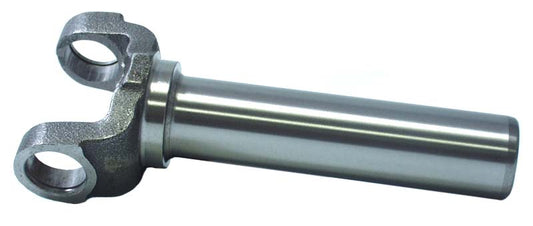

    NEW 27 SPLINE YOKE (#699-769) &
    NEW 1310 SERIES (1 1/16" X 3 7/32") U-JOINTS
  • WE HAVE SEVERAL OTHER YOKES TO FIT NUMEROUS TRANSMISSIONS, AS WELL AS A NUMBER OF CONVERSION U-JOINTS TO CONVERT THESE 1310 SHAFTS TO OTHER SERIES
  • ALUMINUM DRIVESHAFTS ON CARS THAT REGULARLY RUN ON 3 WHEELS MUST HAVE THE YOKE CLEARANCED FOR PROPER TRAVEL OR THE DRIVESHAFT WILL BE DAMAGED

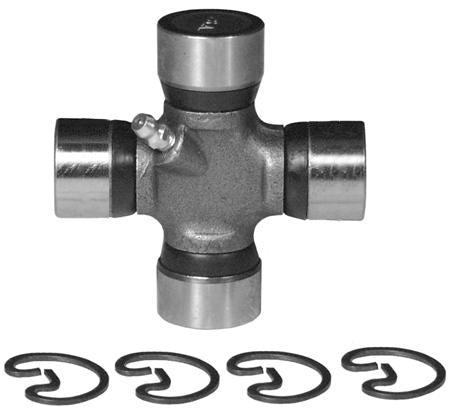

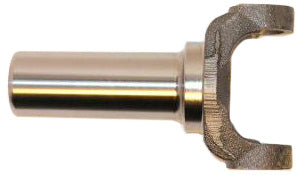

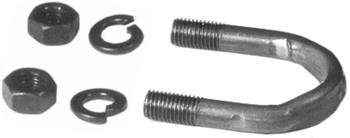

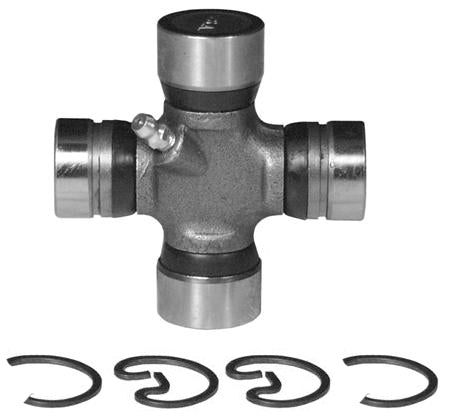

Accessories & Individual Parts
