WWE PRO SPINDLE,5x5",FRONT,DP6,12.19,RED

Brand New Wilwood Premium Big Brake 6 Piston Dynapro Bolt-On Front 5x5" Hub & 12.19" Disc Brake Kit (Part #140-14533-R) for Both Front Wheels.

This kit fits Wilwood's WWE Pro Spindles (#830-10832 Stock Height or #830-9807 2" Drop).  Wilwood’s ProSpindle is specifically designed for use in fabricated A-arm suspensions on kit cars, street rods, drag cars and other custom or race applications that are configured around Pinto/Mustang ll suspension geometry. Those spindles use common Pinto and Mustang ll tie rod ends, ball joints, wheel bearings and seals.  We do have those spindles available (Stock Height & 2" Drop).  This brake kit is only designed for use with the WWE Pro Spindles. It won't fit other spindles.

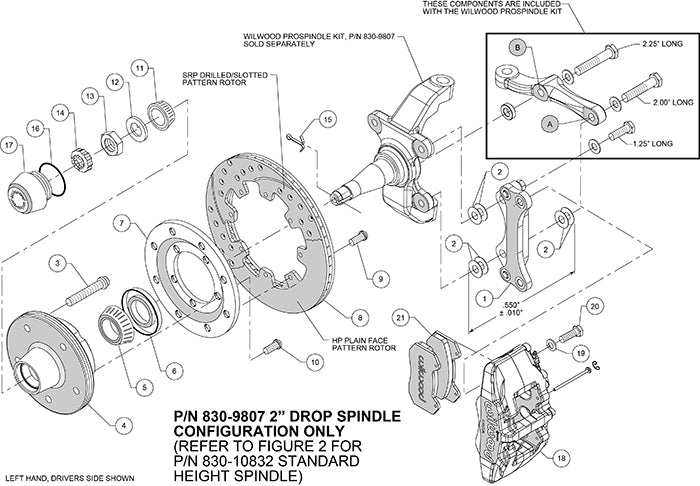

See the list, the diagram, & the assembly booklet below for a detail of the parts included with this brake kit.

Features Powder-Coated Red Calipers.

Fits:

• Vehicles equipped with Wilwood WWE Pro-Spindles (#830-10832 Stock Height or #830-9807 2" Drop), with a 5x5" bolt pattern on the wheels

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods.  The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits.  These kits are specially designed for 5 x 5.00" bolt circle wheels.  DynaPro 6 kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines.

These kits require at least 16" diameter wheels.

Kit includes parts for both front wheels:

• .810" Thick x 12.19" O.D. Rotors
• Dynapro 6 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hubs - 5x5" bolt pattern
• Bearings, Seals, Washers, Studs, &
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 53 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
