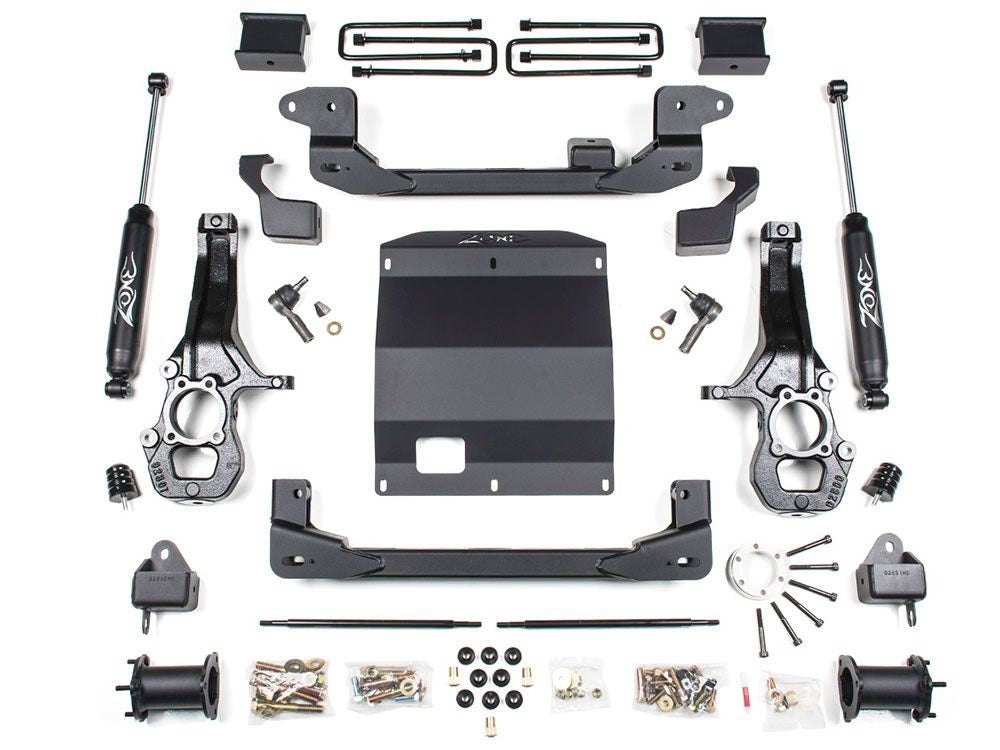

ZONE 2015-2022 CHEVY COLORADO,GMC CANYON 5.5" SUSPENSION LIFT KIT,NITRO SHOCKS

ZONE 2015-2022 CHEVY COLORADO,GMC CANYON 5.5" SUSPENSION LIFT KIT,NITRO SHOCKS

SKU:STU ZONC39N

Regular price $1,347.60
Regular price Sale price $1,347.60
View full details

Brand New Zone Offroad 5.5" Suspension Lift Kit with Zone Nitro Shocks (Part #ZONC39N).

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning.

A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Notes:

  • Factory wheels cannot be reinstalled.
  • Fits Gas and Diesel models.
  • Inner fender trimming may be required.
  • The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel maybe experienced.
  • Will not fit ZR2 Models.

Fits:

  • Chevrolet:
    • 2015-2022 Colorado
  • GMC:
    • 2015-2022 Canyon

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.
  • Rear lift block and longer u-bolts for easy installation and level stance.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 5.5"
  • Rear Lift Height: 4"
  • Front Lift Method: Strut Spacers
  • Rear Lift Method: Lift Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 5.25"
  • Max Tire Size: 305 / 55
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 295 / 65
  • Wheel Size 3: 17 x 8.5
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 295 / 65
  • Cutting Required: See Notes
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
