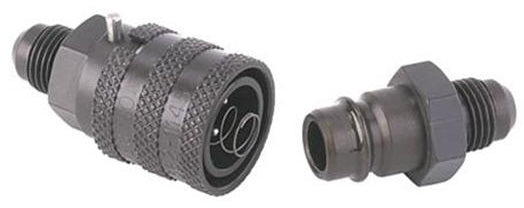

MAIN BYPASS VALVE,Q/D,-6 AN MALE

BRAND NEW KINSLER QUICK DISCONNECT ANO-QD MAIN JET CAN, BYPASS VALVE (OR FUEL CHECK VALVE) (PART #3112).

FEATURES:

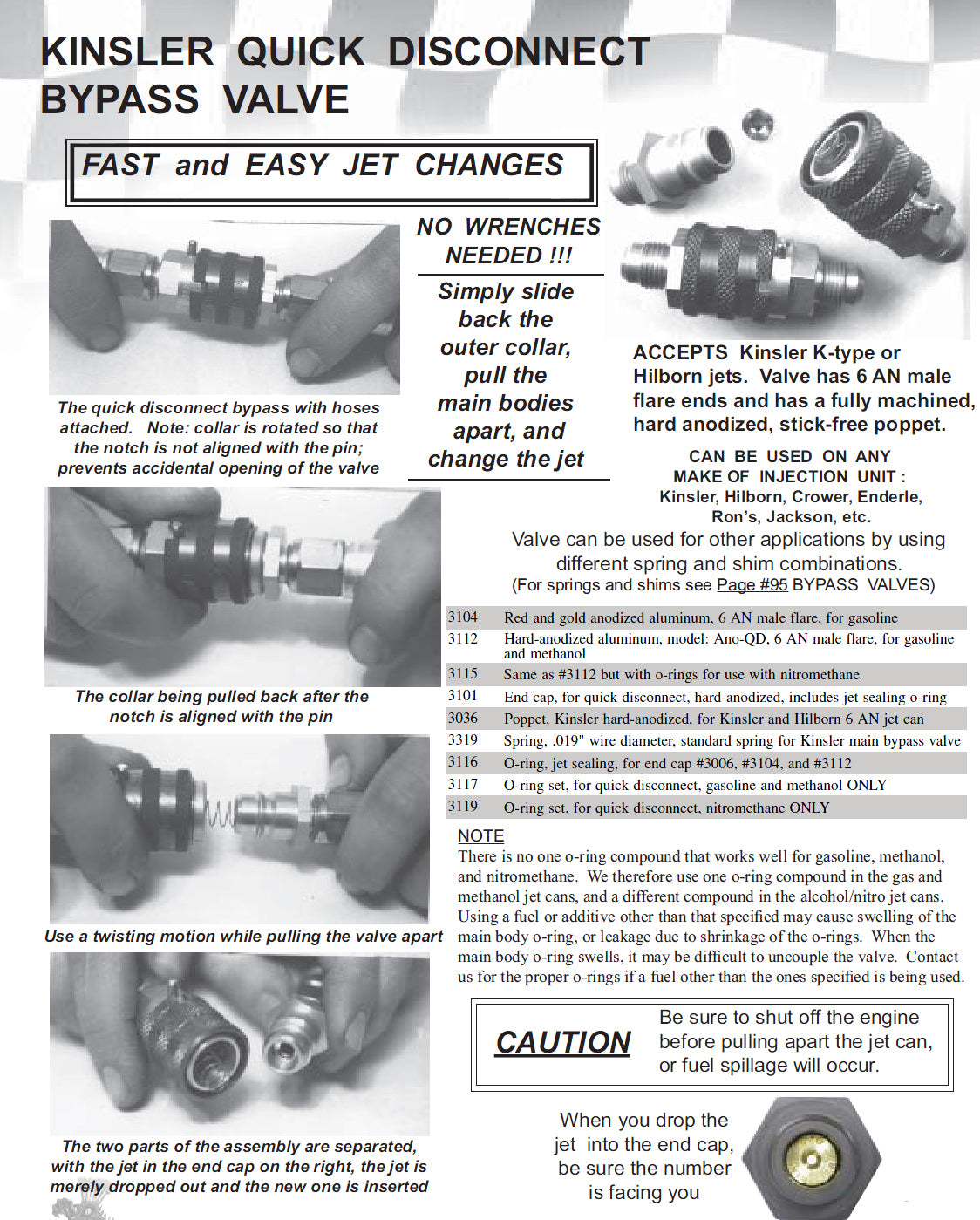

• ALLOWS FOR FAST EASY JET CHANGES WITH NO WRENCHES YOU SIMPLY SLIDE BACK THE OUTER COLLAR, PULL THE MAIN BODIES APARTS, AND CHANGE THE JET (SEE THE DIAGRAMS SHOWN)

• HARD-ANODIZED ALUMINUM

• -6 AN ENDS

• INCLUDES POPPET, SPRING AND SHIMS

• FOR GASOLINE AND METHANOL

• YOU CAN SEE KINSLERS DETAILED BREAKDOWN OF MAIN BYPASS VALVES, INCLUDING CHARTS AND TIPS, HERE, AS WELL AS THEIR INFORMATION ON THE QUICK DISCONNECT VALVES HERE.

WE HAVE MORE PARTS AVAILABLE FOR THIS VALVE:

INCLUDING:
• THE ANO-K STANDARD MAIN BYPASS VALVE

• THE SECONDARY BYPASS VALVE

• THE HIGH FLOW SECONDARY VALVE

• THE LIGHT SPRING KIT

• THE HEAVY SPRING KIT

• THE FUEL PILLS, OR K-JETS

• AS WELL AS OTHER KINSLER BYPASS VALVES
