KIT,CONICAL SPRING,.660+ LIFT,09-UP 5.7 EAGLE,6.2 HELLCAT,6.4 APACHE HEMI,STEEL

Brand New Edelbrock .660" Lift Conical Spring Kit with Chrome Moly Retainers for 2009+ Dodge 5.7L, Eagle 6.2L, & Hellcat 6.4L Apache HEMI (Part #7230CC-KIT).

COMP Cams .660” Lift Conical Valve Spring Kits for Dodge Gen IV HEMIs provide the proven RPM stability and performance of the #7230 conical spring in convenient kit options.

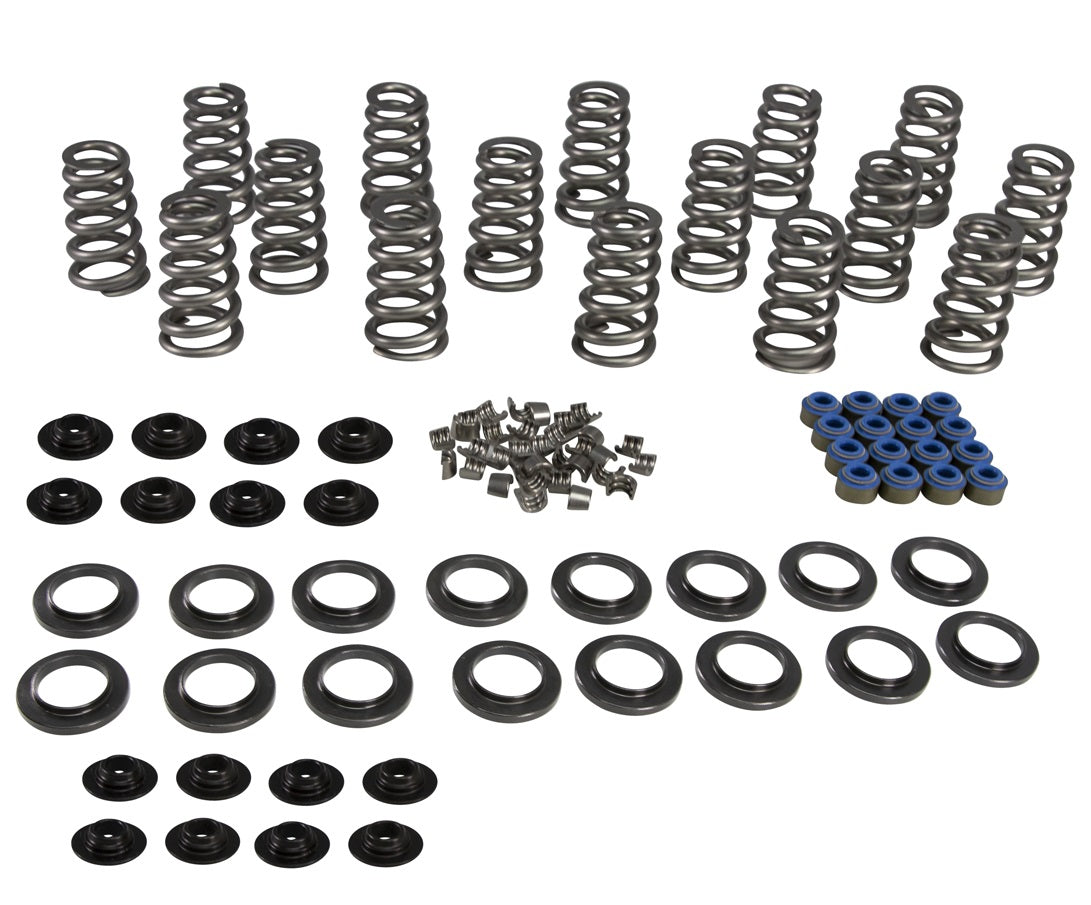

Kit Includes:

• Retainers Part #: 761-16

• Valve Locks Part #: 607-16

• Spring Seats Part #: 4678-16

• Valve Seals Part #: 531-16

• Spring Part #: 7230-16

Specs:

• Retainer Material: Chrome Moly Steel

• Max Lift: 0.66

• Installed Height: 1.9

• Coil Bind Height: 1.175

• O.D. of Inner/Outer: 1.060/1.332

• I.D. of Inner/Outer: .660/.932
• Valve Lockup Type: 8mm Triple Groove
• Spring Style: Conical
• Spring Rate: 519
• Seat Pressure: 145

• Make: Dodge

You can view and download the complete assembly instruction booklet here.
