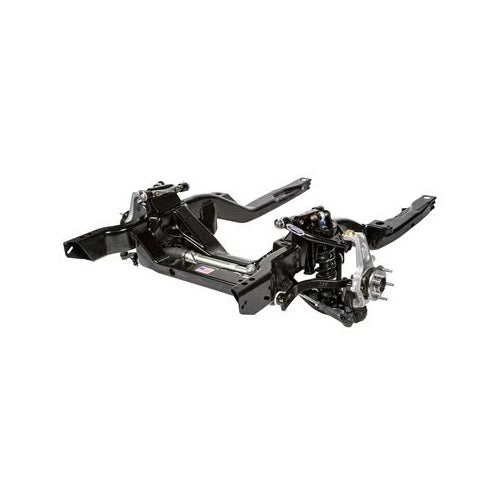

HYD SUB SBC/LS SA ASSY PC 67-69F,68-74X

Brand New Detroit Speed Hydroformed Subframe, Single Adjustable Shocks, Black Powder Coated Finish, Compatible with GM Small Block Chevy LS Engines (Part #032004-SDS).

Detroit Speed's front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing Detroit Speed's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength. Spring Rate: 550lbs/in Spring Free Length: 8inUp to a 10" wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2, and LS7 engines have been designed as a direct bolt-in into this subframe. Our subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product! Single Adjustable Shock: Includes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street.

NOTE:  Subframe must ship freight. Must use at least 17" wheels that require a minimum inside wheel diameter of 16.250". For competition applications, the DSE rack & pinion fluid transfer conversion kit will replace the hardlines on your DSE rack & pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.

Compatible with:

• Chevrolet:
  • 1967-1969 Camaro
  • 1968 Chevy II
  • 1969-1974 Nova
• Pontiac:
  • 1967-1969 Firebird
  • 1971-1974 Ventura
• Oldsmobile:
  • 1973-1974 Omega
• Buick:
  • 1973-1974 Apollo

Features:

• Hydroformed Subframe Blends the Benefits of OEM Technology and Aftermarket Performance into One Product
• Bolt-In Replacement for the Original Stock Subframe, Featuring Stamped Main and Secondary Cross-Members for Structural Rigidity
• Unique DSE Suspension Geometry for Improved Handling and Ride Quality
• Ideal for Use in Street Vehicles and on the Track
• Choose from Non-Adjustable, Single Adjustable, Double Adjustable, or Double Adjustable Remote Reservoir Coil-Over Shocks
• Choose from Springs for Small Block/LS/LT Engines (550 lbs/in), or Big Block Engines (650 lbs/in)
• Choose from Powder Coated or Bare Subframe Finish

Specs:

• Brand: Detroit Speed
• Finish: Black Powdercoated
• Engine: Small Block/LS
• Finish: Powdercoated
• Product Type: Hydroformed Subframe
• Shock Type: Single Adjustable
• Spring Free Length: 8in
• Spring Rate: 550lbs/in

You can view and download the complete assembly instruction booklets for this subframe here.
