CROSSMEMBER,63-72 C-10,TRAILING ARM TYPE,BOLT ON 3 POSITION

CROSSMEMBER,63-72 C-10,TRAILING ARM TYPE,BOLT ON 3 POSITION

568-7001

$199.99
$199.99

Yes, we have this item in stock and ready to ship immediately!
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

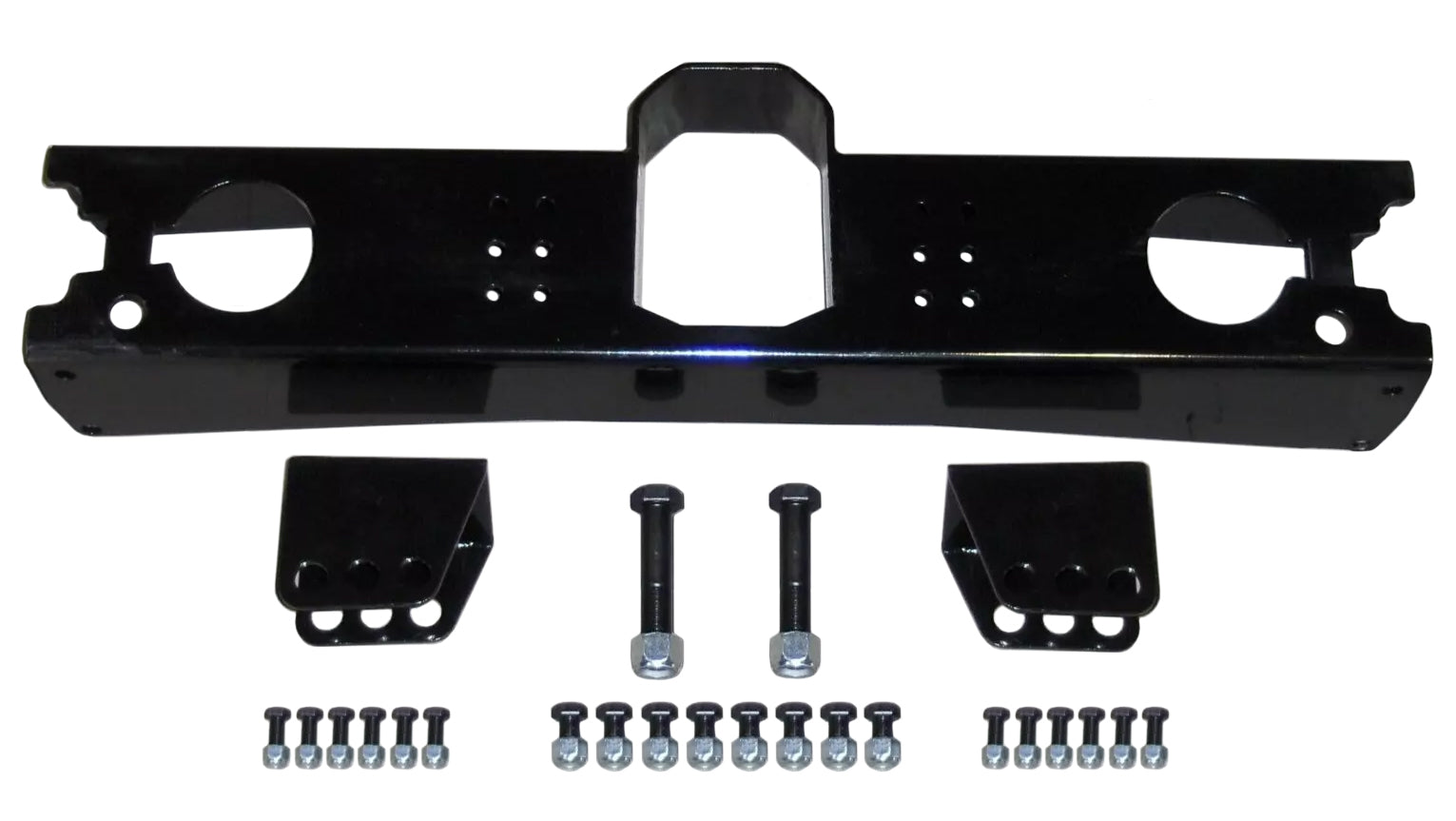

Brand New Southwest Speed Trailing Arm Crossmember for 1963-1972 Chevy & GMC Trucks (SWS Part #568-7001).

This crossmember is specifically designed for 1963-1972 GM trucks that have a 5" or more drop. It will increase the ground clearance on your lowered truck. Brackets allow for the use of 3 different trailing arm settings.

Features:

  • Includes mounting hardware pictured
  • Black Powder Coated to resist corrosion
  • Hoop design eliminates any interference with driveshaft on lowered trucks
  • Bolt in directly to your stock location
  • Bolt-on 3-Position Anti-Squat Brackets
  • Laser cut 1018 chassis grade steel, .188" thickness
  • No welding required

Notes:

  • Designed for short bed applications with one-piece driveshafts and 5" or more drop. Long bed applications require drilling and mounting of OE carrier bearing bracket.

Applications:

  • Chevrolet:
    • 1963-1972 C10 Pickup
    • 1963-1972 C20 Pickup
    • 1963-1972 C30 Pickup
  • GMC:
    • 1963-1966 1000 Pickup
    • 1963-1966 1500 Pickup
    • 1963-1966 2500 Pickup
    • 1963-1966 3000 Pickup
    • 1963-1966 3500 Pickup
    • 1967-1972 C15/C1500 Pickup
    • 1967-1972 C25/C2500 Pickup
    • 1967-1972 C35/C3500 Pickup
You can view and download the complete assembly instruction booklet here.
