CROSSMEMBER,63-72 C-10,TRAILING ARM TYPE,BOLT ON 5 POSITION

CROSSMEMBER,63-72 C-10,TRAILING ARM TYPE,BOLT ON 5 POSITION

568-700

$199.99
$199.99

Yes, we have this item in stock and ready to ship immediately!
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

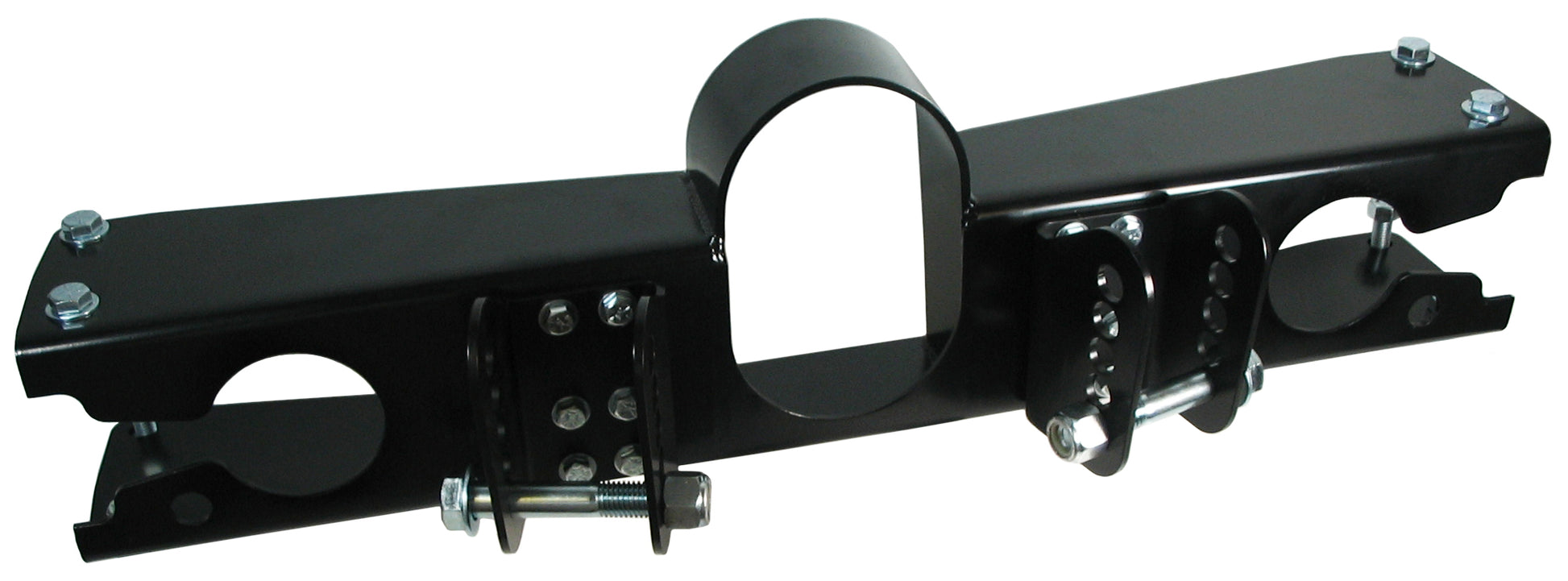

Brand New Southwest Speed Trailing Arm Crossmember for 1963-1972 Chevy & GMC Trucks (SWS Part #568-700).

This crossmember is specifically designed for 1963-1972 GM trucks that have a 5" or more drop. It will increase the ground clearance on your lowered truck. Bolt on mounts allow for the use of 5 different trailing arm settings. Lower hole is for factory trailing arm position and is adjustable for up to 4 degrees of anti-squat.

Features:

  • Includes mounting hardware pictured
  • Black Powder Coated to resist corrosion
  • Hoop design eliminates any interference with driveshaft on lowered trucks
  • Bolt in directly to your stock location
  • 5-Position Anti-Squat Brackets
  • Adjustable from OE position up to 4 degrees anti squat adjustment
  • Laser cut 1018 chassis grade steel, .188" thickness
  • No welding required

Notes:

  • Designed for short bed applications with one-piece driveshafts and 5" or more drop. Long bed applications require drilling and mounting of OE carrier bearing bracket.

Applications:

  • Chevrolet:
    • 1963-1972 C10 Pickup
    • 1963-1972 C20 Pickup
    • 1963-1972 C30 Pickup
  • GMC:
    • 1963-1966 1000 Pickup
    • 1963-1966 1500 Pickup
    • 1963-1966 2500 Pickup
    • 1963-1966 3000 Pickup
    • 1963-1966 3500 Pickup
    • 1967-1972 C15/C1500 Pickup
    • 1967-1972 C25/C2500 Pickup
    • 1967-1972 C35/C3500 Pickup
You can view and download the complete assembly instruction booklet here.
