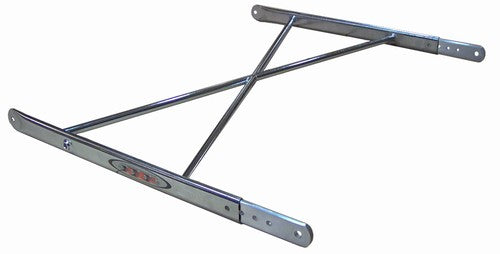

TOP WING TREE,AERO TUBE,PLATED

TOP WING TREE,AERO TUBE,PLATED

XXX SCTW0011

$89.99
$89.99
View full details
  • TOP WING TREE. AERO (SQUISHED TUBE). PLATED 4130 CHROME MOLY. ALUMINUM ADJUSTERS. 3/4" ADJUSTMENT HOLES, WITH A TOTAL OF 3" OF ADJUSTMENT. "X" DESIGN FOR LATERAL AND HORIZONTAL STRENGTH. ADJUSTER PINS NOT INCLUDED.

    • TECHNICAL SPECS
  • WIDTH AT TOP: 26 1/4"
  • WIDTH AT BOTTOM: MIN: 26 1/4"
  • HEIGHT: MIN: 18 1/4". MAX: 21 1/4".
  • ADJUSTMENTS: 3/4"
  • WING SLIDER SPUD: 5 1/2" FROM TOP MOUNT (CENTER TO CENTER).
  • MATERIAL: 4130 CHROME MOLY
  • ADJUSTER MATERIAL: ALUMINUM
  • WING SLIDER MOUNT: 3/8"
  • WING MOUNTS: 3/8"
  • FINISH: PLATED
  • TOTAL WEIGHT: 3.75 LBS
    • Sprint Car Top Wing
