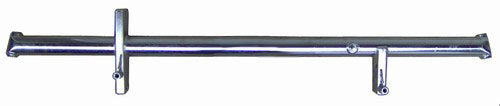

FRONT AXLE,2 1/4 X 53,PLATED

FRONT AXLE,2 1/4 X 53,PLATED

XXX SCFA0011

$189.99
$189.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • CHROME PLATED 4130 CHROMOLY
  • JIG BUILT FOR QUALITY & EXACT FIT
  • AXLE KING PIN BOSSES ARE FACTORY HONED
  • AXLE DIAMETER: 2 1/4"
  • AXLE WALL THICKNESS: .120"
  • LENGTH: 53" CENTER OF KING PIN BOSS TO CENTER OF KING PIN BOSS
  • THREADED PANHARD BAR STUD
  • THREADED SHOCK MOUNTS
  • APPROXIMATE WEIGHT OF 15.5 LBS.

    • DIMENSIONS FOR THE DIAGRAM BELOW:
  • A: 53"
  • B: 12 DEGREES OF KING PIN INCLINATION ON THE RIGHT FRONT
  • C: 9 DEGREES OF KING PIN INCLINATION ON THE LEFT FRONT

  • ALSO FEATURES 15 DEGREES OF RIGHT FRONT POSITIVE CASTER AND 12 DEGREES OF LEFT FRONT POSITIVE CASTER. ALSO HAS A 2 1/2" RIGHT OFFSET AND A 1/2" LEFT OFFSET
  • FITS MOST POPULAR SPRINT CAR CHASSIS, INCLUDING TRIPLE X, MAXIM, EAGLE, J&J
