CHASSIS KIT,RACER,BODY,TIN,AXLE,NERFS

CHASSIS KIT,RACER,BODY,TIN,AXLE,NERFS

XXX MDCH1002

$3,999.99
$3,999.99
This item requires an additional shipping fee of $350 over standard shipping.
View full details

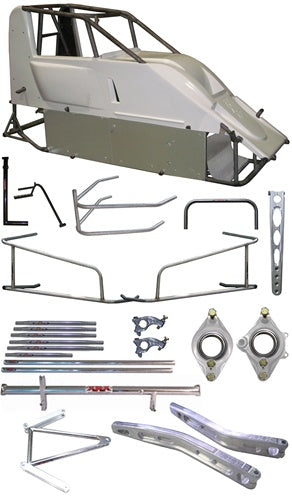

  • XXX MIDGET "RACER" CHASSIS KIT
  • KIT INCLUDES:
    *CHASSIS WITH TORQUE TUBE HOOP
    *NOSE
    *HOOD
    *LEFT ARM GUARD
    *RIGHT ARM GUARD
    *FLOOR PAN
    *LEFT SIDE KICK PANEL
    *RIGHT SIDE KICK PANEL
    *LEFT SIDE FRONT PANEL
    *DASH
    *RADIUSED FRONT AIR BOX
    *RADIATOR TRAY
    *BRAKE PEDAL
    *THROTTLE PEDAL
    *FRONT BUMPER
    *LEFT NERF BAR, 3 POINT
    *RIGHT NERF BAR, 3 POINT
    *REAR BUMPER, NO BRACES
    *FRONT AXLE, 44"
    *FRONT RADIUS RODS, 17"
    *PANHARD BAR, 17"
    *LEFT REAR RADIUS ROAD, 29 1/2"
    *RIGHT REAR RADIUS ROD, 30 1/2"
    *COMPLETE BIRDCAGE SET
    *TORSION BAR STOPS
    *LEFT REAR TORSION ARM
    *RIGHT REAR TORSION ARM
    *JACOBS LADDER, 14" COMPLETE
    *DRAG LINK, 39"
    *TIE ROD, 40"
    *PITMAN ARM
  • MADE FROM HIGH-GRADE 4130 CHROMEMOLY TUBING THAT IS PRE-TESTED FOR CHEMICAL COMPOSITION, HARDNESS, & STRENGTH
  • INCLUDES DZUS SPRINGS ALREADY ON CHASSIS
  • THE TRIPLE X MIDGET IS A GROUND-UP DESIGN, BUT IS BASED ON DIMENSIONS OF THE MOST POPULAR CHASSIS ON THE MARKET WITH THE EXACT PICKUP POINTS, MOTOR PLATE LOCATION, TORSION TUBE LOCATION, ETC.

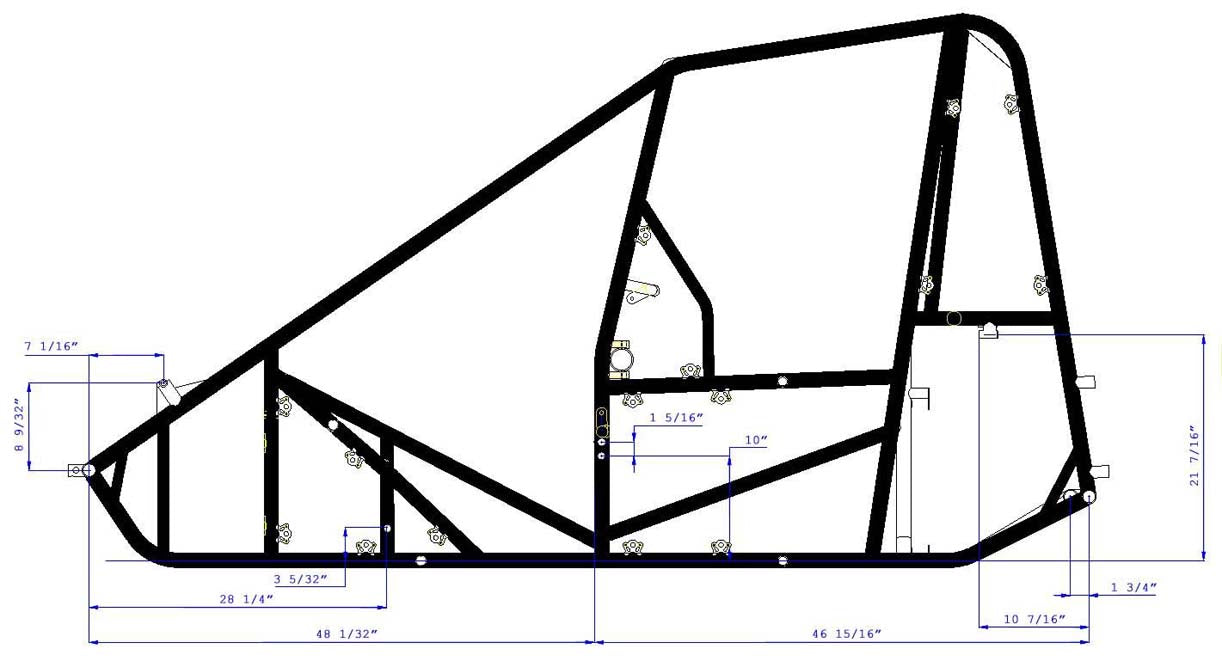

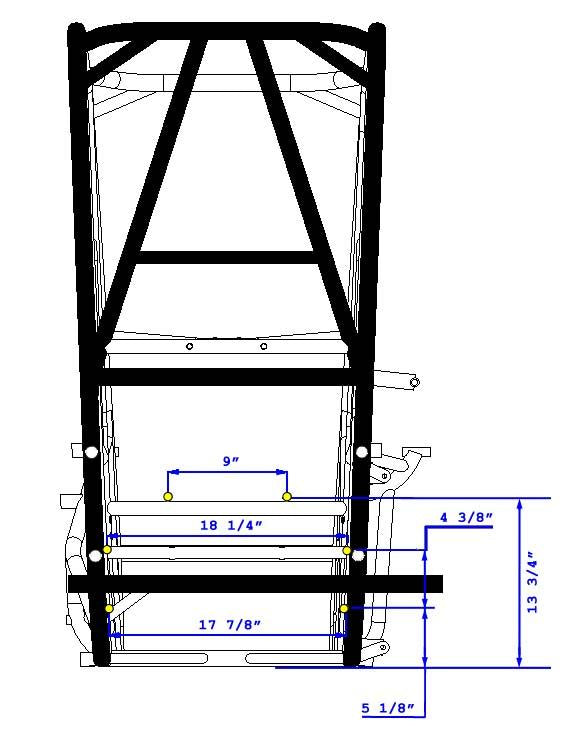

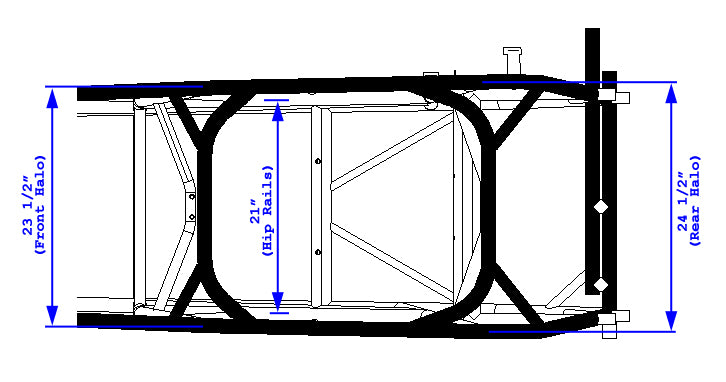

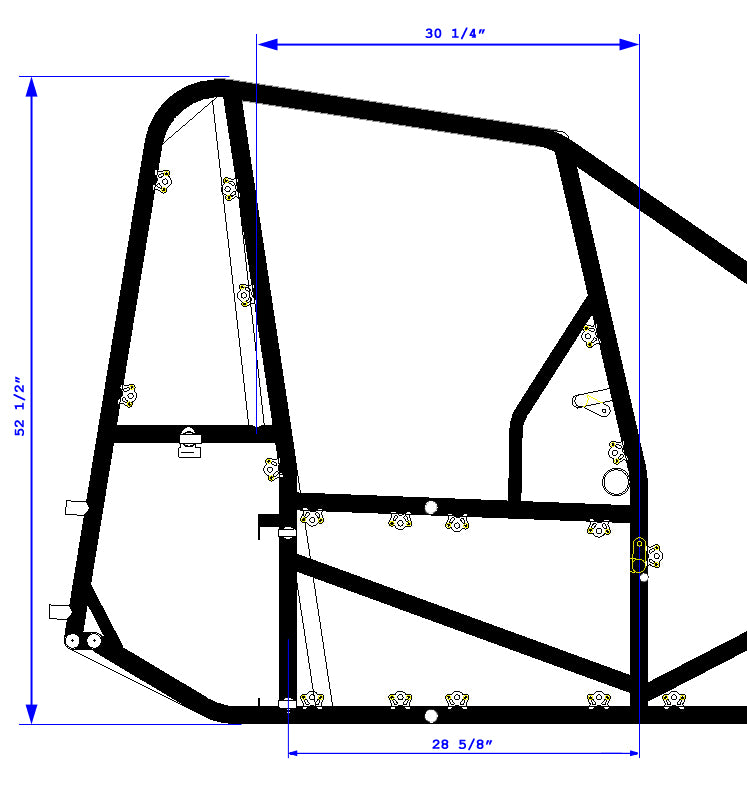

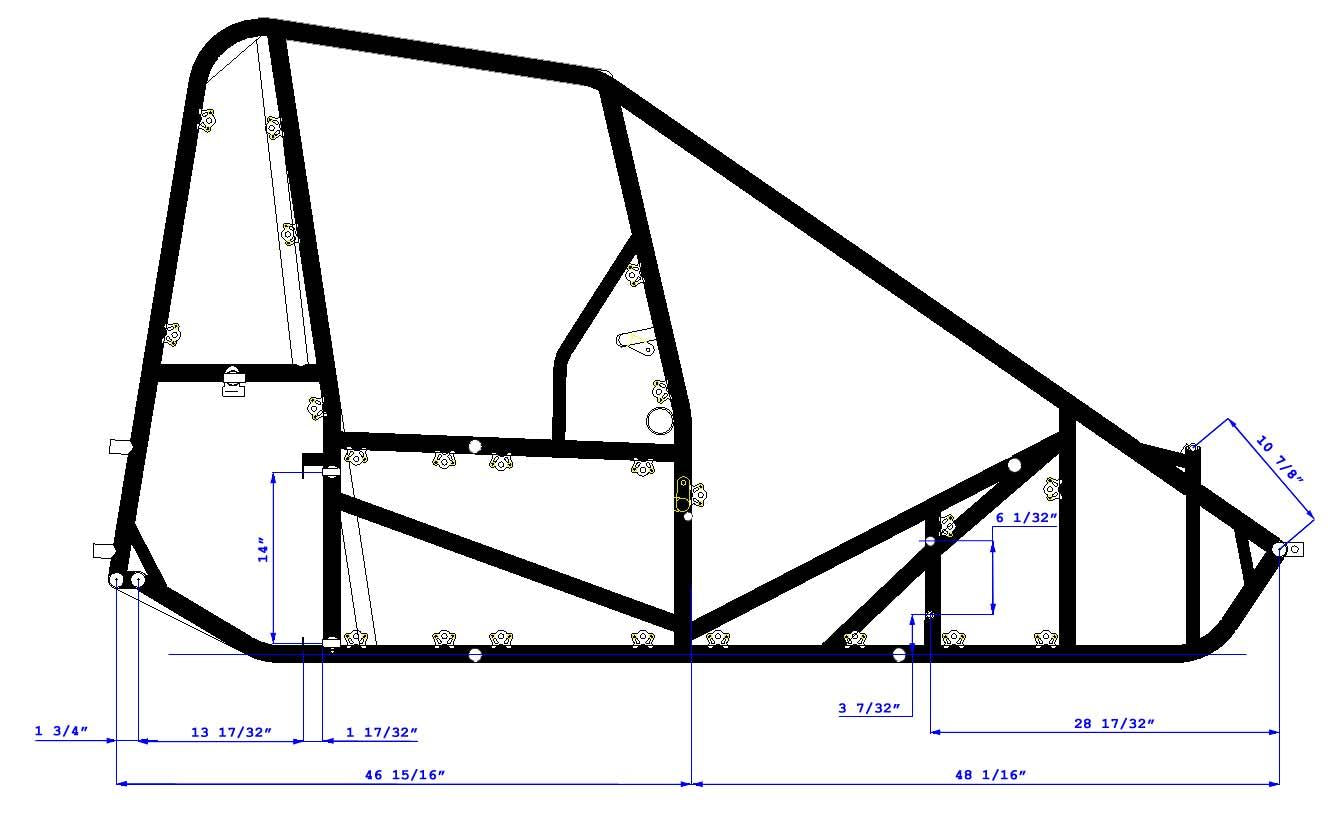

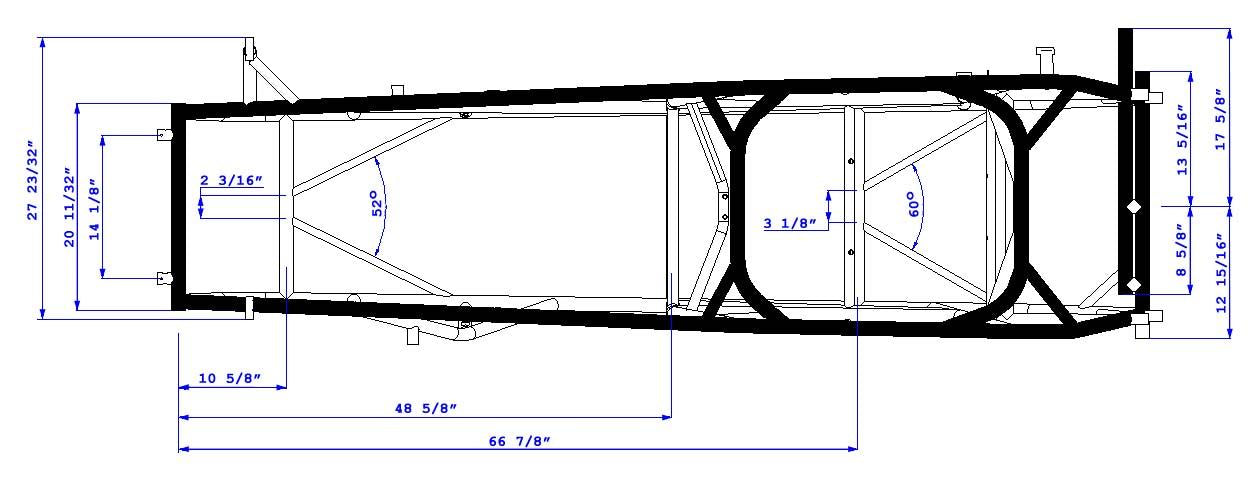

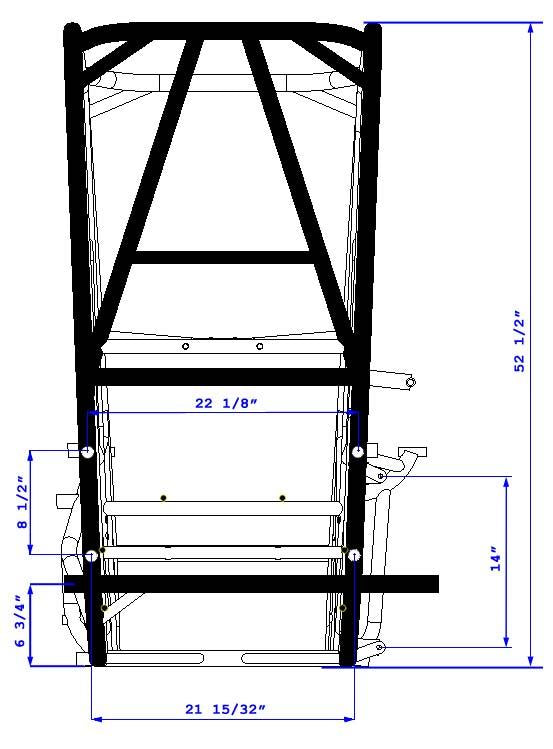

  • YOU CAN CLICK ON THE DIAGRAMS BELOW TO SEE THE DETAILED DIMENSIONS ON THE CHASSIS



    • Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View
