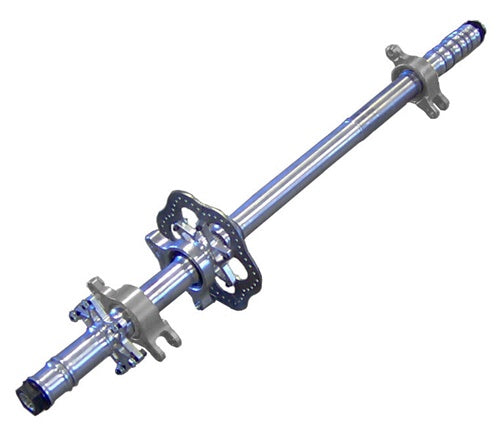

COMPLETE REAR AXLE ASSEMBLY,1 7/8 X 52

COMPLETE REAR AXLE ASSEMBLY,1 7/8 X 52

XXX 600SU9000

$1,049.99
$1,049.99
View full details

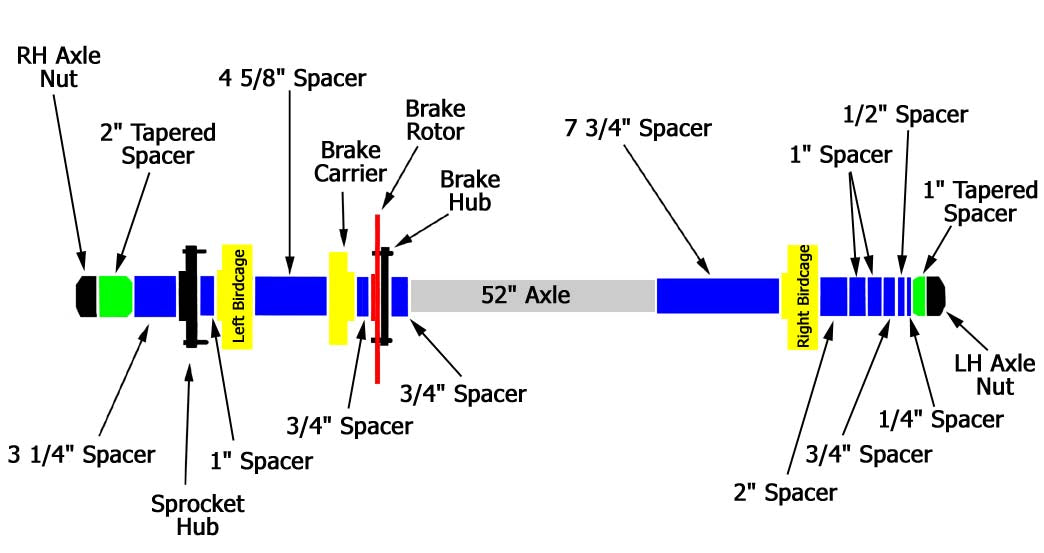

  • COMPLETE REAR END KIT INCLUDES:
  • REAR AXLE
    • * LIGHTWEIGHT ALUMINUM
    * SIZE: 52"
    * CENTER SPACE: 14 1/8"
    * CENTER DIAMETER: 1 7/8"
    * SPLINE DIAMETER: 1 3/4"
    * WALL THICKNESS: 0.45"
  • SPLINED AXLE NUTS (LEFT & RIGHT)
  • BRAKE ROTOR HUB
    • *POLISHED ALUMINUM
    *1/4"-28 OUTER HOLE SIZE
  • BRAKE ROTOR
    • *ULTRALIGHT STEEL
    *DIAMETER: 9 1/2"
    *THICKNESS: 3/16"
    *APPROXIMATE WEIGHT: 1.6 LBS
  • BRAKE BIRDCAGE
    • *ALUMINUM CARRIER
    *INCLUDES BEARING, SNAP RING, AND BOLTS
    *SPLIT: 6" CENTER OF TORSION BAR MOUNT TO CENTER OF RADIUS ROD MOUNT
  • LEFT BIRDCAGE (OR BEARING CARRIER)
    • *CNC MACHINED CARRIER
    *DOUBLE BEARING
    *INCLUDES BEARINGS & SNAP RING
    *SPLIT: 6" CENTER OF TORSION BAR MOUNT TO CENTER OF RADIUS ROD MOUNT
  • RIGHT BIRDCAGE (OR BEARING CARRIER)
    • *CNC MACHINED CARRIER
    *DOUBLE BEARING
    *INCLUDES BEARINGS & SNAP RING
    *SPLIT: 6" CENTER OF TORSION BAR MOUNT TO CENTER OF RADIUS ROD MOUNT
  • SPROCKET HUB
    • *POLISHED ALUMINUM
    *5/16"- 20 OUTER HOLE SIZE
  • AXLE SPACERS (12)
    • *1/4"
    *1/2"
    *3/4"(3)
    *1"(3)
    *2"
    *3 1/4"
    *4 5/8"
    *7 3/4"
  • TAPERED AXLE SPACERS (2)
    • *1"
    *2"
  • FITS TRIPLE X, PMP, AND NUMEROUS OTHER MICRO-SPRINT & MINI-SPRINT CHASSIS



    • Click Picture
    For Larger View

    Micro/Mini-Sprint Rear Ends
