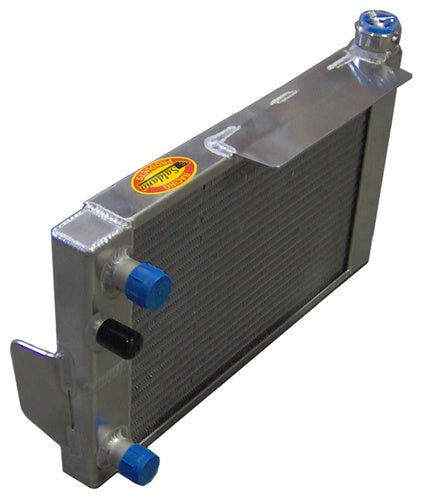

RADIATOR,10 X 17 1/2 X 1 3/4

MICRO/MINI SPRINT RADIATOR. STAND UP. SINGLE ROW. CROSS FLOW. 1" SLIP-ON TUBE OR DASH-8 INLET. 1" SLIP-ON TUBE OUTLET. SIDE BRAKETS TO DZUS TO FRAME TABS. COMPLETE WITH TABS ACROSS TOP TO FIT XXX ELECTICAL PANEL.

TECHNICAL SPECS

STYLE: STAND UP, CROSS FLOW

INLET: 1" PIPE, AND/OR DASH-8 FITTING

OUTLET: 1" PIPE

DIMENSIONS (NOT MEASURING FITTINGS, BRACKETS, ETC): 18" WIDE X 10" TALL X 1 3/4" THICK

TOTAL WEIGHT: 2 LBS

RECOMMENDED CAP PRESSURE: 22 - 24 LBS
