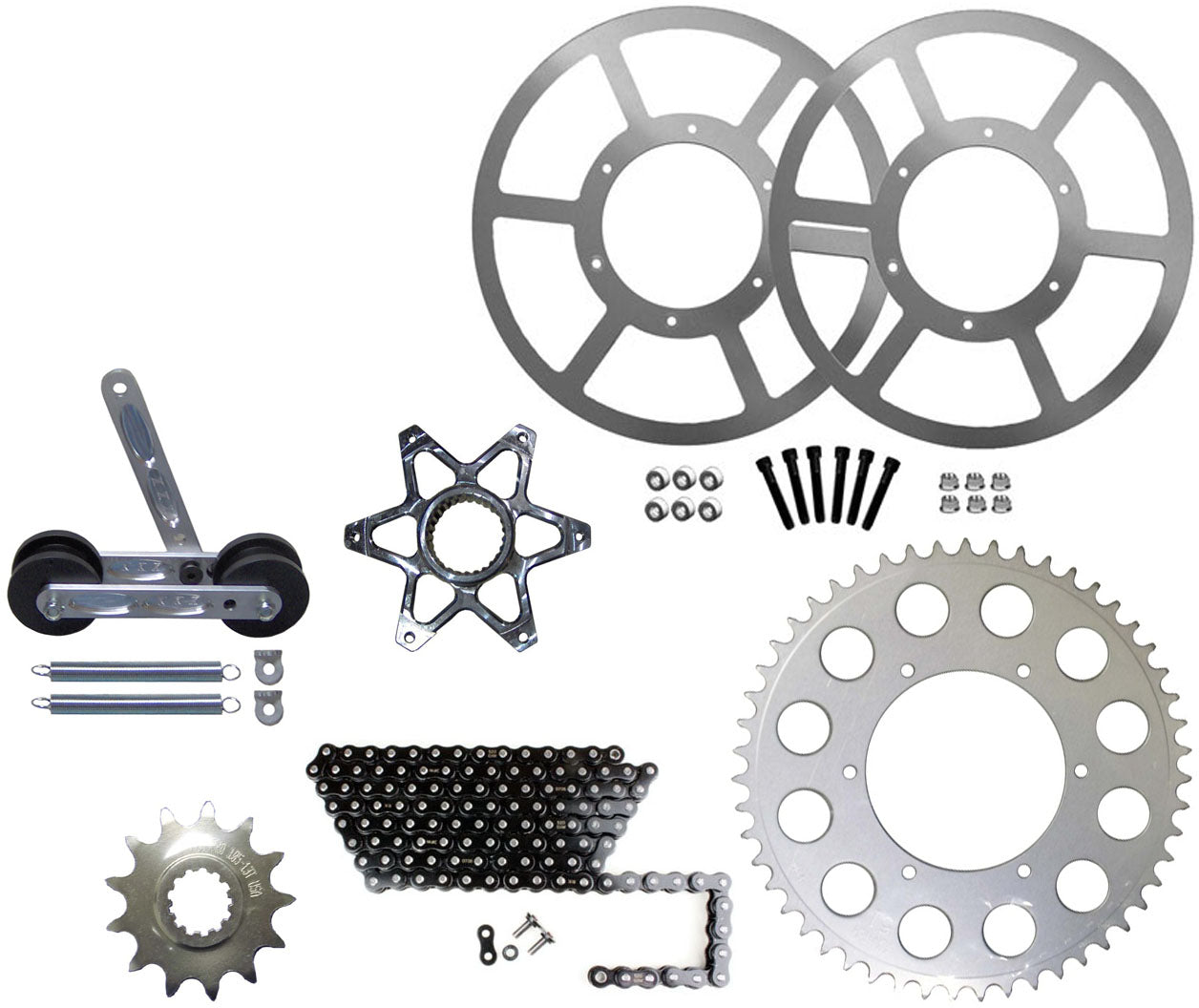

FULL CHAIN & SPROCKET KIT,MICRO SPRINT

THIS KIT FITS TRIPLE X, PMP, AND NUMEROUS OTHER MICRO-SPRINT AND MINI-SPRINT CHASSIS. THE COMPLETE KITS WEIGHS APPROXIMATELY 5.0 LBS.

INCLUDES:

FRONT SPROCKET(PART #XXX 600DL9813):

MATERIAL: STEEL

INSIDE SPLINE COUNT: 13 SPLINE

OUTSIDE TOOTH COUNT: 13 TOOTH

FITS YAMAHA R6 AND SEVERAL OTHER MINI-SPRINT & MICRO-SPRINT MOTORS WITH A 13 SPLINE SPROCKET SHAFT

130 LINK GOLD CHAIN (PART #XXX 600DL0001):

HIGH PERFORMANCE, LIGHTWEIGHT, & LOW FRICTION

PROVIDES THE HIGHEST WEAR RESISTANCE, TENSILE STRENGTH, & IMPACT RESISTANCE

NON-O-RING DESIGN

MASTER LINK INCLUDED

AVERAGE TENSILE STRENGTH: 8,100 LBS

LENGTH: 130 LINKS

COLOR: GOLD

CHAIN TENSIONER KIT (PART #XXX 600DL0002):

COMES COMPLETE WITH BEARINGS, SPRINGS, & SPRING CLIPS

FEATURES DOUBLE BEARINGS ON EACH ROLLER

DESIGNED TO FLOAT WITH NATURAL CHAIN MOTION TO ALLOW THE CHAIN TO MOVE FREELY & NOT BIND

APPROXIMATE TOTAL WEIGHT: 1.0 LBS.

REAR SPROCKET (PLEASE SPECIFY WHICH SPROCKET YOU WANT AT CHECKOUT):

LIGHTWEIGHT ALUMINUM

6 BOLT X 5 1/4" BOLT PATTERN WITH 5/16" HOLES

5 DIFFERENT SPROCKETS TO CHOSE FROM:

-51 TOOTH (PART #XXX 600DL9951)

-52 TOOTH (PART #XXX 600DL9952)

-53 TOOTH (PART #XXX 600DL9953)

-54 TOOTH (PART #XXX 600DL9954)

-55 TOOTH (PART #XXX 600DL9955)

REAR SPROCKET SPLINED HUB (PART #XXX 600SU0181):

LIGHTWEIGHT ALUMINUM

1 7/8" SPLINES FOR 1 7/8" REAR AXLES

6 BOLT X 5 1/4" BOLT PATTERN

5/16"-20 OUTER HOLE SIZE

SPROCKET CHAIN GUIDE KIT (PART #XXX 600SU0195):

LIGHTWEIGHT ALUMINUM

2 DISCS GUIDE CHAIN ONTO SPROCKET

OUTSIDE DIAMETER: 12"

MOUNTING HOLE SIZE: 5/16"

COMPLETE KIT COMES WITH DISCS, SPACERS, BOLTS, AND NUTS
