BRAKE PEDAL ONLY,XPRS

BRAKE PEDAL ONLY,XPRS

XXX 600CH2020

$47.99
$47.99
View full details

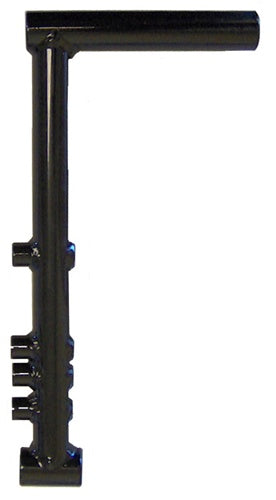

  • 600 SPRINT XRPS BRAKE PEDAL ONLY
  • LIGHTWEIGHT 4130 CHROMOLY CONSTRUCTION
  • FEATURES MULTIPLE BOSSES (OR SPUDS) FOR MANY DIFFERENT CONFIGURATIONS

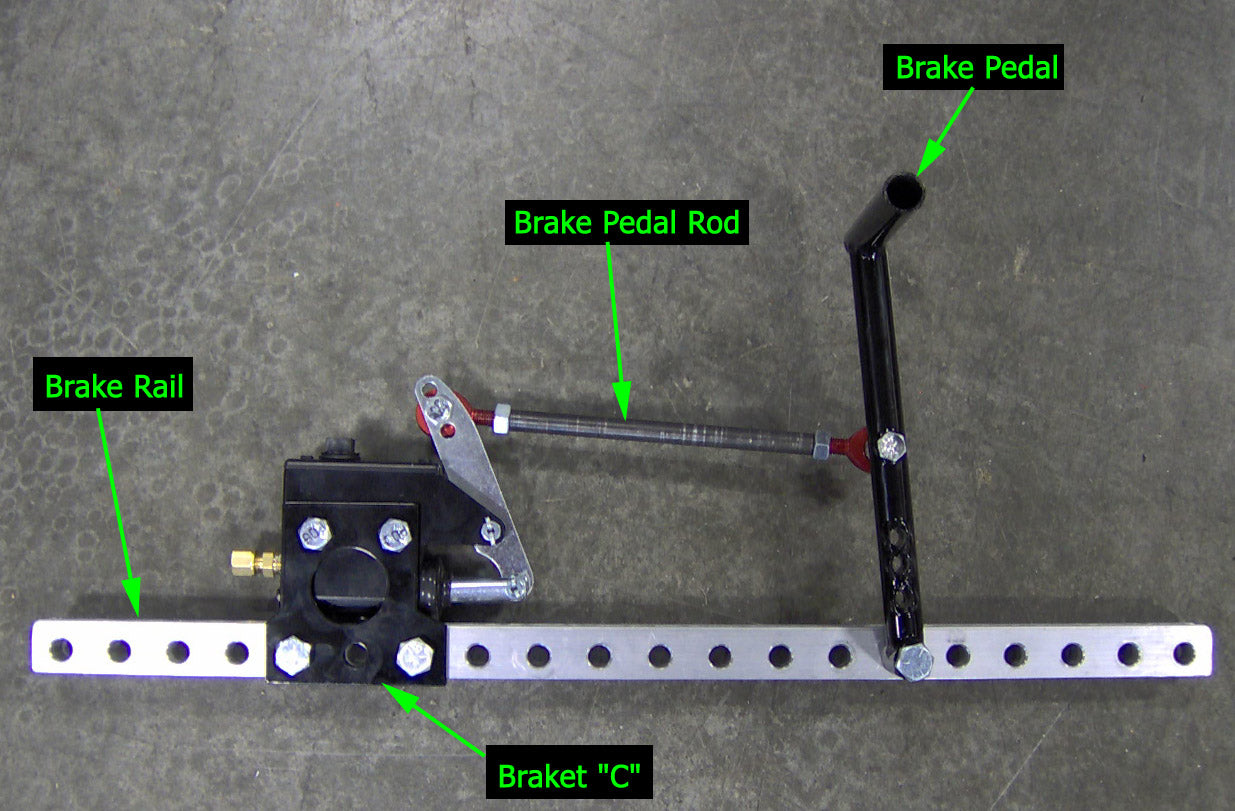

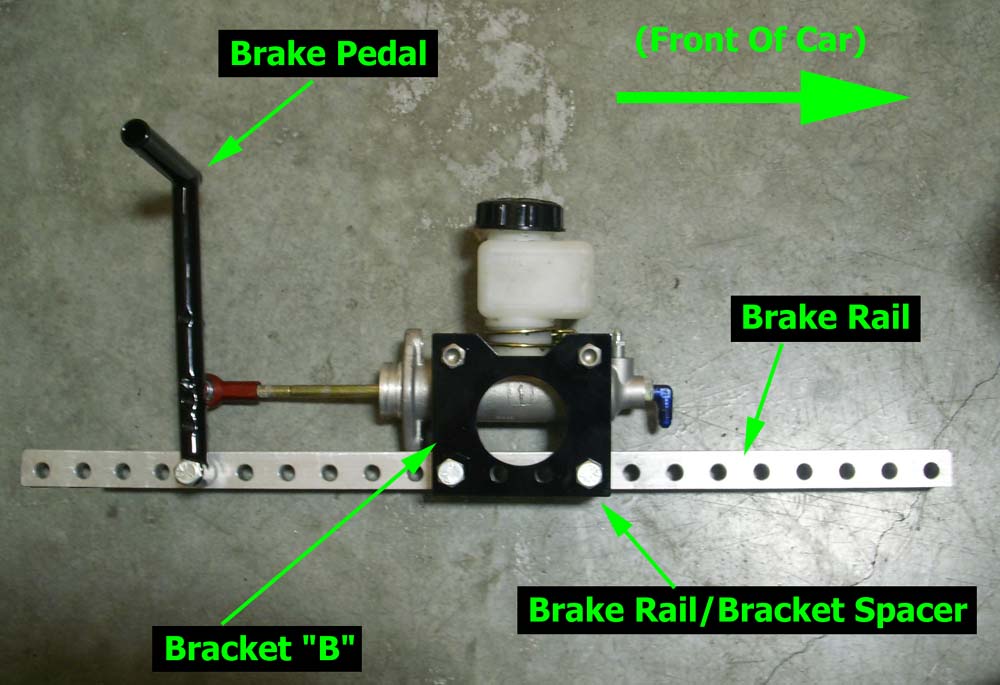

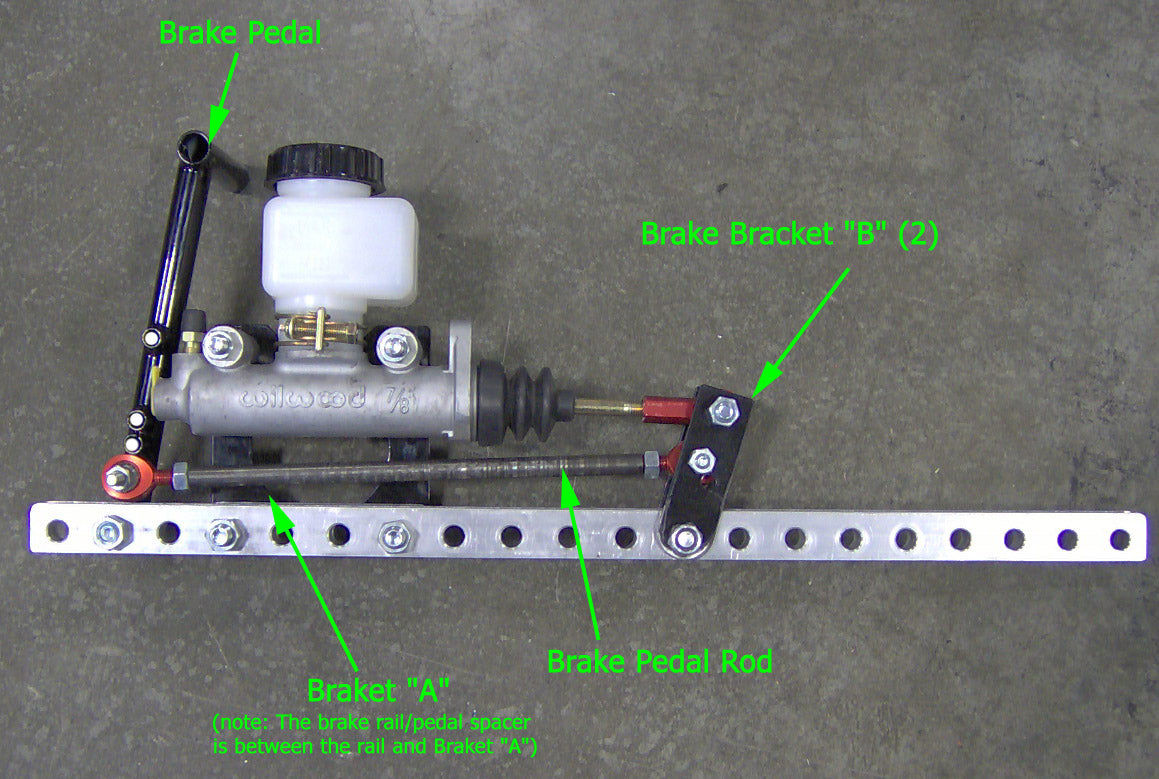

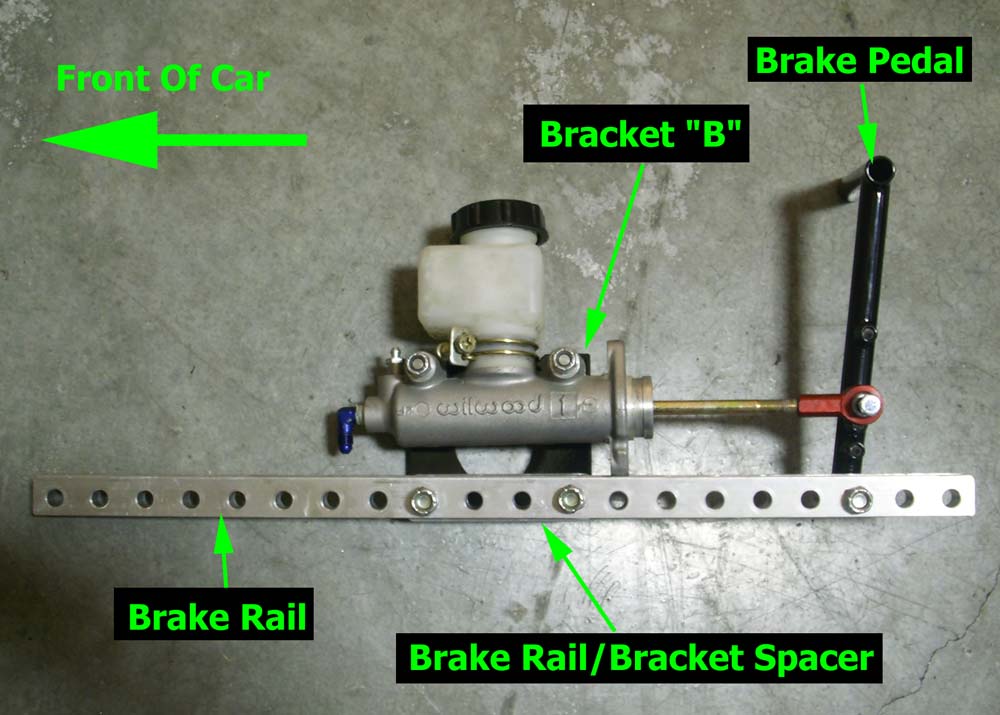

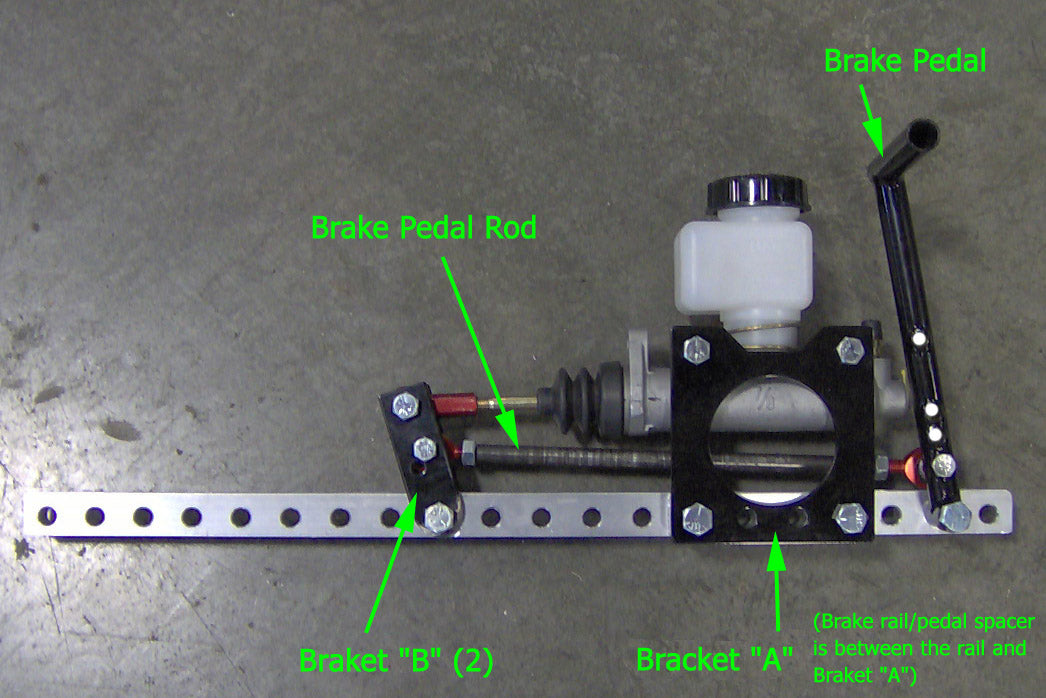

  • DESIGNED FOR USE WITH THE TRIPLE X PEDAL RAIL SYSTEM, WHICH IS ENGINEERED TO ELIMINATE THE STRUGGLE WITH SOLID MOUNTED, SINGLE POSITION PEDALS
  • THE XXX PEDAL RAIL SYSTEM IS SIMPLE, LIGHTWEIGHT, COST EFFECTIVE, AND MOST IMPORTANTLY FULLY ADJUSTABLE UP TO 14"
  • SPECS:
    *MATERIAL: 4130 CHROMOLY
    *PEDAL BOSS: 3/8" I.D. x 1" WIDE
    *LENGTH: 7 1/4" FROM CENTER OF BOSS TO TOP OF PEDAL
    *MASTER CYLINDER BOSSES: 5/16" I.D. x 1 1/2" WIDE
    *HEIGHTS OF MASTER CYLINDER BOSSES: 1", 1 1/2", 2", & 3 1/2" CENTER OF BOSS TO CENTER OF BOSS
    *PEDAL WIDTH: 3 1/2"
    *FINISH: BLACK POWDER COATING
    *APPROXIMATE WEIGHT: 0.3 LBS.



    • Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View



    Click Picture
    For Larger View
