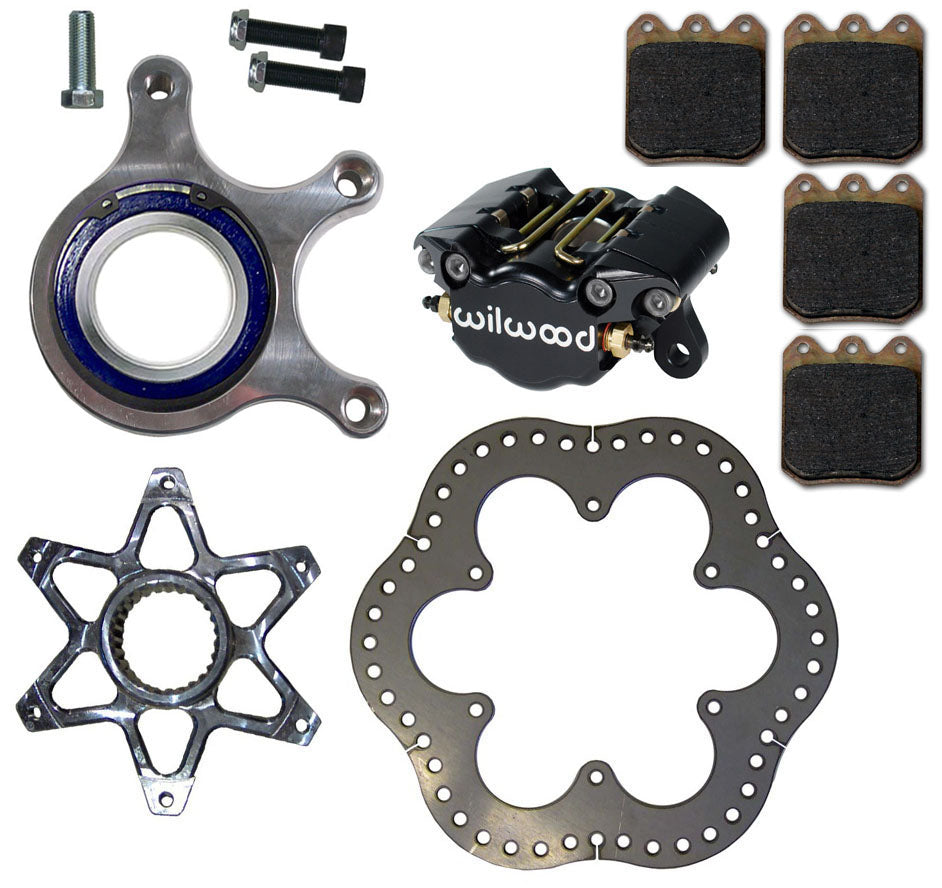

REAR BRAKE SET,CALIPER,BIRDCAGE,ROTOR,MT

REAR BRAKE SET,CALIPER,BIRDCAGE,ROTOR,MT

XXX 600BKREARKT

$379.99
$379.99
View full details
ULTRALIGHT REAR BRAKE ROTOR (PART #XXX 600BK0001):
  • THIS DRILLED & SCALLOPED ROTOR IS DESIGNED TO REDUCE CRUCIAL ROTATING WEIGHT
  • MATERIAL: STEEL
  • OUTSIDE DIAMETER: 9 1/2"
  • BOLT PATTERN: 6 BOLT X 5 1/4"
  • BOLT SIZE: 1/4"
  • ROTOR THICKNESS: 3/16"

    • SPLINED BRAKE ROTOR HUB (PART #XXX 600SU0180):
  • MATERIAL: ALUMINUM
  • BOLT PATTERN: 6 BOLT X 5 1/4"
  • BOLT HOLES: 1/4"-28

    • BRAKE BEARING CARRIER (OR BIRDCAGE) (PART #XXX 600BK0002):
  • CNC MACHINED BRAKE BEARING CARRIER
  • COMES COMPLETE WITH BEARING, SNAP RING, SPLINED BEARING INSERT, & BOLTS
  • CALIPER MOUNTING FLANGE MEASURES 3 1/4" CENTER TO CENTER, WHICH FITS WILWOOD DYNAPRO SINGLE CALIPERS
  • BRAKE ROD MOUNT IS 3" FROM THE CENTER OF THE AXLE

    • WILWOOD DYNAPRO SINGLE CALIPER (PART #WIL 120-9688LP):
  • FITS 3/16" THICK ROTORS
  • FEATURES TWO. 1.38" PISTONS & A 3 1/4" MOUNTING PATTERN
  • WILWOODS DYNAPRO SINGLE BILLET CALIPER (DPS) REPRESENTS THE NEWEST GENERATION OF CALIPERS AVAILABLE AS AN UPGRADE OR REPLACEMENT FOR APPLICATIONS PREVIOUSLY USING THE LONG-STANDING DYNALITE SINGLE (DLS) MODEL SERIES. DPS CALIPERS COMBINE SUPERIOR STRENGTH WITH SEVERAL NEW PERFORMANCE ENHANCEMENTS TO MAKE THESE THE BEST "DYNA" SERIES CALIPERS EVER BUILT. THE DPS IS PERFECT FOR COMPACT HIGH PERFORMANCE BRAKING. THE TWO PISTON CALIPER IS RIGID, LIGHTWEIGHT AND HOLDS A .50" THICK, 1.1 CUBIC INCH BRAKE PAD. INTERNAL FLUID PASSAGE AND MULTIPLE BLEED FITTINGS PERMIT SEVERAL MOUNTING OPTIONS. HIGH TEMPERATURE SQUARE PISTON SEALS CONTROL PISTON RETRACTION WHILE THE HEAVY WALL STAINLESS STEEL DEEP CUP PISTONS REDUCE HEAT TRANSFER FROM THE PAD TO THE BRAKE FLUID. CALIPERS ACCEPT 1/8-27 NPT INLET FITTING AND COME STANDARD WITH OUR EXCLUSIVE QUICK-E-CLIP PAD RETAINER.

    • WILWOOD DYNAPRO SINGLE HIGH PERFORMANCE RACING BRAKE PADS (PART #WIL 15Q-10144K):
  • THIS SET COMES WITH 4 PADS, WHICH WILL GIVE YOU AN EXTRA SET TO REFRESH THE BRAKING SYSTEM IN THE FUTURE
  • POLYMATRIX Q COMPOUND
  • ENHANCED FRICTION CERAMIC FORMULA FEATURES THE LOWEST NOISE & DUST PROPERTIES AVAILABLE FROM A PERFORMANCE COMPOUND PAD
  • IMPROVED FRICTION OVER STANDARD REPLACEMENT PAD COMPOUNDS
  • GIVES SMOOTH ENGAGEMENT, LONG SERVICE LIFE, INCREASED FADE RESISTANCE, & QUICK RECOVERY TIME
