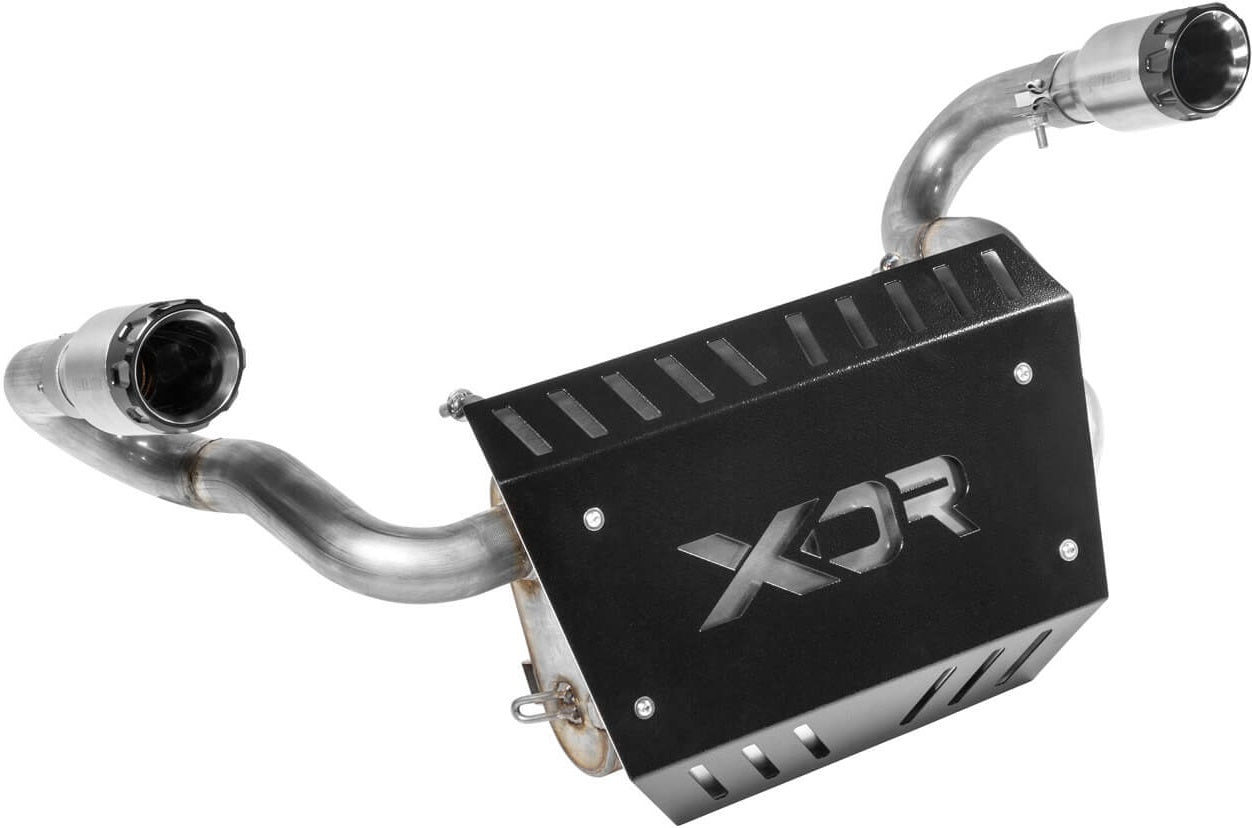

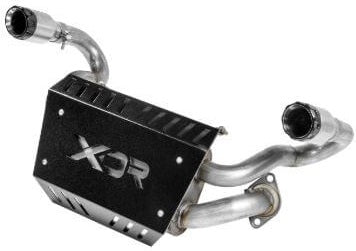

OFF-ROAD COMPETITION EXHAUST,2018 RZR XP,DOR

OFF-ROAD COMPETITION EXHAUST,2018 RZR XP,DOR

XDR 7523

$1,089.95
$1,089.95
View full details

BRAND NEW XDR OFF-ROAD COMPETITION EXHAUST SYSTEM, DOUBLE WALL PIPE STYLE, DOR EXIT, COMPATIBLE WITH 2014 POLARIS RZR XP 1000 & XP4 1000

THIS NEW BOLT-ON XDR OFF-ROAD COMPETITION EXHAUST SYSTEM IS FOR THE 2018 POLARIS RZR XP 1000 & XP 4 1000. THE SYSTEM CONNECTS AT THE FACTORY FLANGED CONNECTION & HELD IN PLACE USING THE FACTORY RUBBER MOUNTS & SPRINGS. 409S STAINLESS STEEL CONSTRUCTION WITH A 2.5" MANDREL-BENT INLET TUBE FLOWING INTO THE XDR OFF-ROAD CROSS-FLOW PERFORMANCE MUFFLER WITH DUAL 2.25" MANDREL-BENT TAILPIPES TUCKED UP HIGH WITHIN THE REAR FENDERS PROVIDING A MODERATE TO AGGRESSIVE DEEP SOUND.

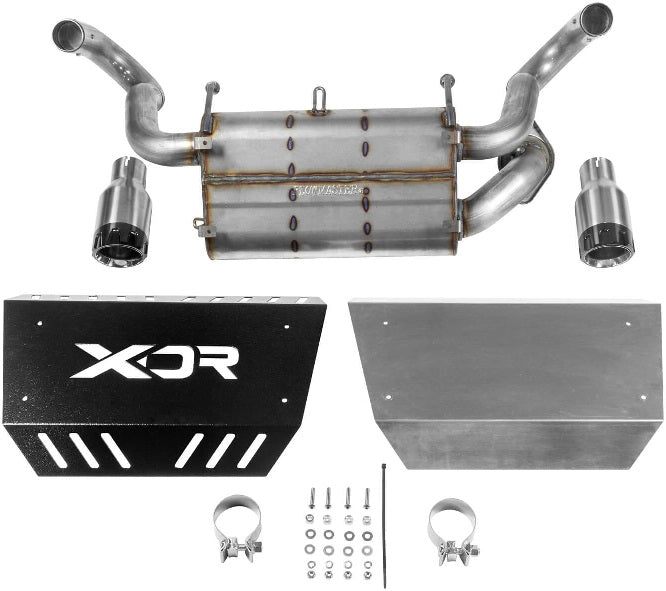

THE TAILPIPES ARE FINISHED OFF WITH A PAIR OF 3.50" DUAL WALL BRUSHED 304S STAINLESS STEEL TIPS WITH BLACK ANODIZED ALUMINUM ENDS. INCLUDES ALL HARDWARE AND INSTALLATION INSTRUCTIONS NECESSARY FOR A SIMPLE AT HOME INSTALLATION.

NOTE: FOR OFF-HIGHWAY COMPETITION USE ONLY.

COMPATIBLE WITH:

  • POLARIS:
    • 2018 RZR XP/XP4 1000

FEATURES:

  • HIGH PERFORMANCE XDR COMPETITION MUFFLER
  • HIGH CLEARANCE DUAL EXHAUST TAILPIPES
  • MODERATELY AGGRESSIVE DEEP SOUND
  • 409 STAINLESS STEEL CONSTRUCTION

SPECS:

  • BOLT HOLE DIAMETER: 0.64"
  • EXIT LOCATION: DOR
  • FLANGE LENGTH: 6.062"
  • FLANGE QUANTITY: 1
  • FLANGE THICKNESS: 0.984"
  • FLANGE WIDTH: 4.016"
  • MOUNTING HARDWARE: YES
  • MOUNTING HARDWARE INCLUDED: YES
  • MOUNTING HOLE SPACING: 4.72"
  • MOUNTING METHOD: BOLT ON
  • MUFFLER BODY WIDTH: 4"
  • MUFFLER BODY HEIGHT: 9.75"
  • MUFFLER BODY LENGTH: 17"
  • MUFFLER BODY MATERIAL: 409 STAINLESS
  • MUFFLER COLOR/FINISH: NATURAL
  • MUFFLER CONFIGURATION: SINGLE
  • MUFFLER INLET COUNT: 1
  • MUFFLER INLET INSIDE DIAMETER: 2.39"
  • MUFFLER INTERNAL: ABSORPTION
  • MUFFLER OUTLET: 2
  • MUFFLER OUTLET INSIDE DIAMETER: 2.14"
  • MUFFLER QUANTITY: 1
  • MUFFLER STYLE: TRANSVERSE
  • # OF BOLT HOLES PER FLANGE: 2
  • OVERALL EXHAUST SYSTEM DIAMETER: 2.25"
  • PIPE MATERIAL/TYPE: 409 STAINLESS
  • SYSTEM COLOR/FINISH: NATURAL
  • TIP CUT: ANGLE
  • TIP DIAMETER: 3.5"
  • TIP INCLUDED: YES
  • TIP LENGTH: 8.5"
  • TIP MATERIAL: 304 STAINLESS/ALUMINUM
  • TIP QUANTITY: 2
  • TIP SHAPE: ROUND
  • TIP STYLE: DOUBLE WALL
  • Y-PIPES INCLUDED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
