OFF-ROAD COMPETITION EXHAUST,16-18 RZR XP,DOR

OFF-ROAD COMPETITION EXHAUST,16-18 RZR XP,DOR

XDR 7514

$1,145.95
$1,145.95
View full details

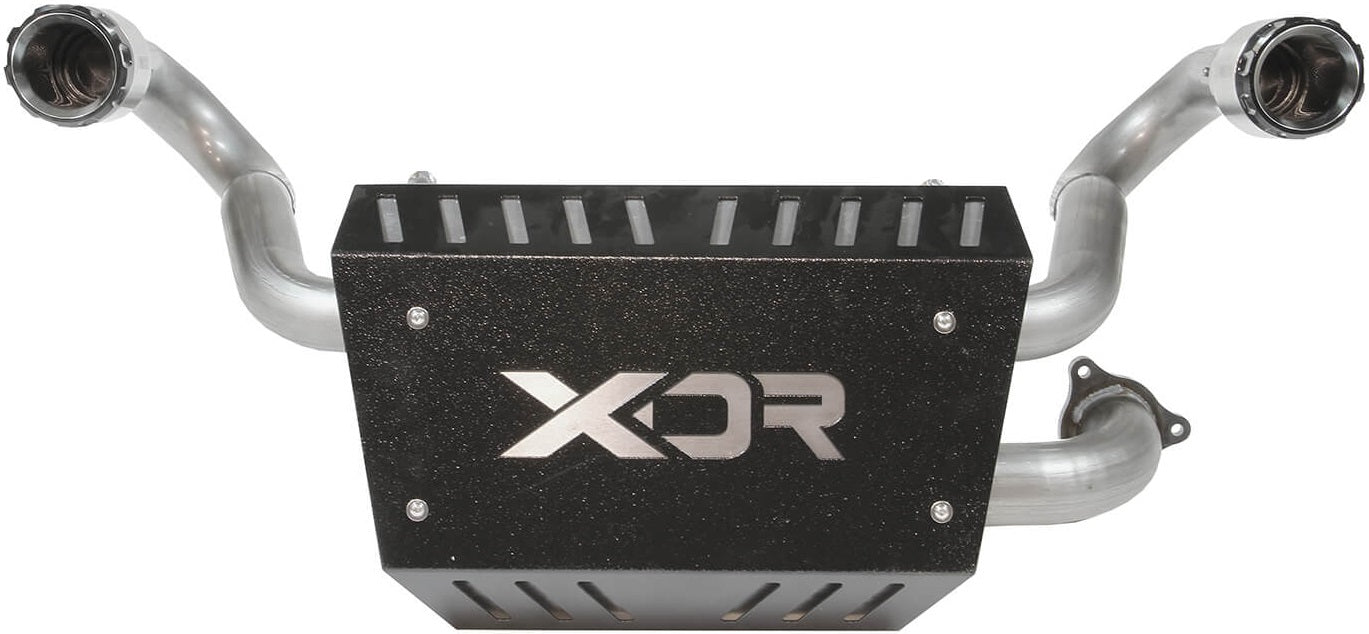

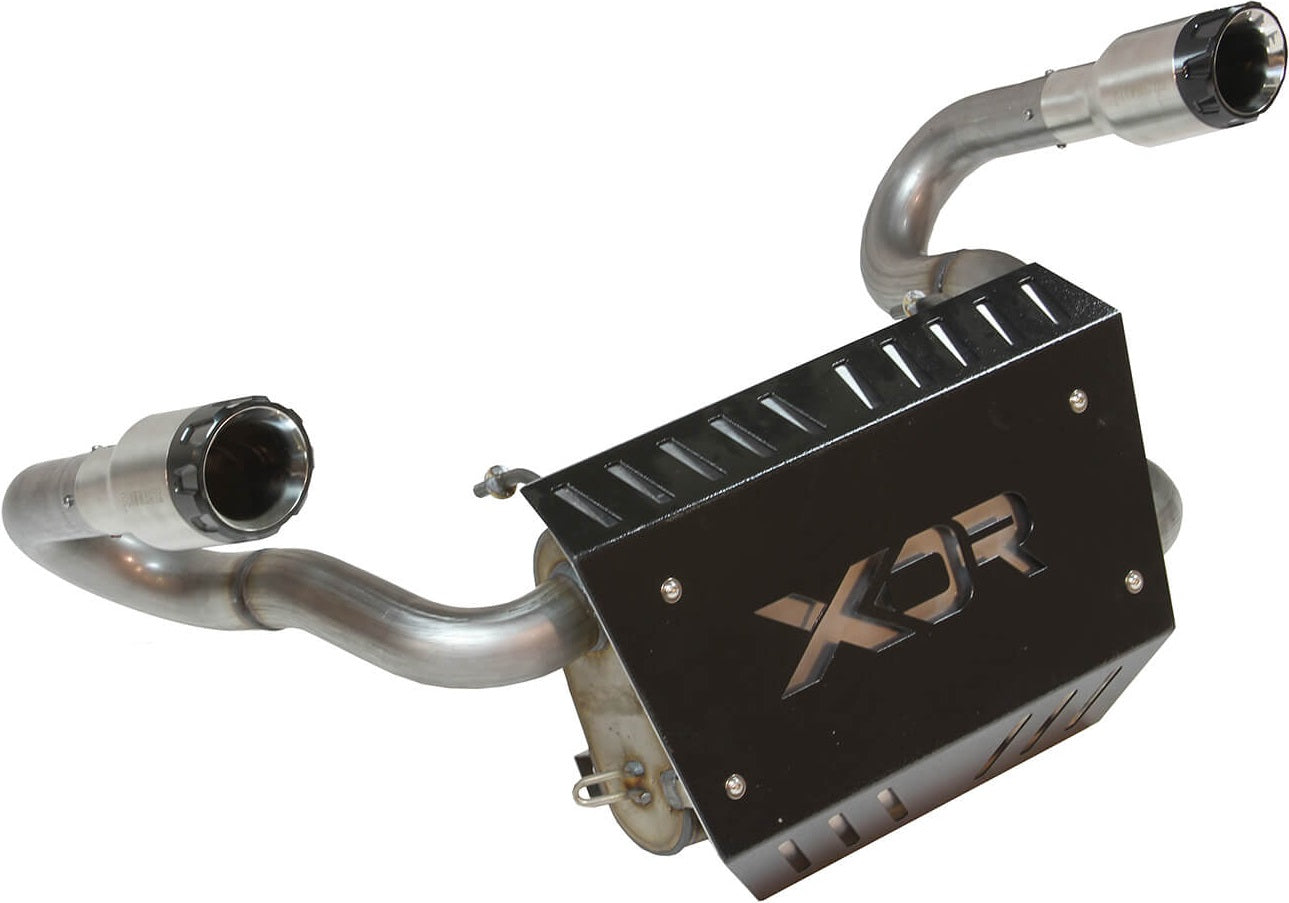

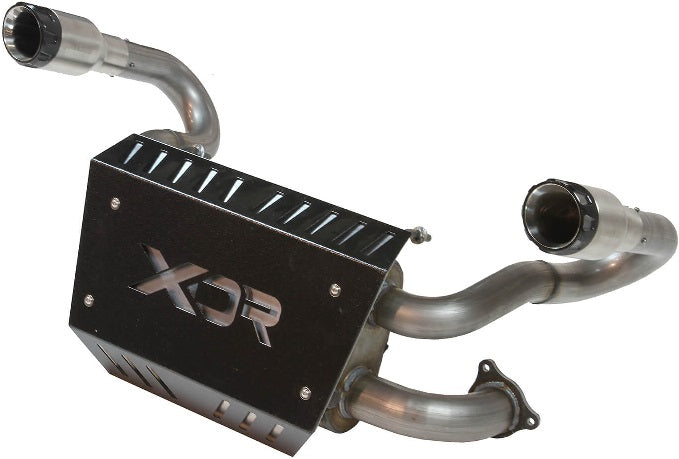

BRAND NEW XDR OFF-ROAD COMPETITION EXHAUST SYSTEM, DOR EXIT, COMPATIBLE WITH 2016-18 POLARIS RZR XP/XP4 TURBO

THIS NEW BOLT-ON XDR OFF-ROAD COMPETITION EXHAUST SYSTEM IS FOR THE 2016-2018 POLARIS RZR XP TURBO AND XP 4 TURBO. DOES NOT INCLUDE THE TURBO S MODELS. THE SYSTEM CONNECTS AT THE FACTORY FLANGED CONNECTION AND IS FIRMLY HELD IN PLACE USING THE FACTORY RUBBER MOUNTS AND SPRINGS.

FEATURES INCLUDE 409S STAINLESS STEEL CONSTRUCTION, A 2.25" MANDREL-BENT INLET TUBE FLOWING INTO THE XDR OFF-ROAD "STRAIGHT-THROUGH" CROSS-FLOW COMPETITION MUFFLER PROVIDING A DEEP MODERATE SOUND. DUAL 2.25" MANDREL-BENT TAILPIPES ARE TUCKED UP HIGH WITHIN THE REAR FENDERS & FINISHED OFF WITH A PAIR OF 3.50" TIPS WITH BLACK ALUMINUM END CAPS. INCLUDES ALL NECESSARY HARDWARE & INSTRUCTIONS FOR SIMPLE INSTALLATION.

NOTE: NOT COMPATIBLE WITH TURBO S MODELS.

NOTE: DOES NOT INCLUDE A CATALYTIC CONVERTER.

COMPATIBLE WITH:

  • POLARIS:
    • 2016-18 RZR XP/XP4 TURBO

FEATURES:

  • 3.50" BRUSHED DUAL WALL TIPS WITH BLACK ANODIZED ALUMINUM ENDS
  • HIGH PERFORMANCE XDR COMPETITION MUFFLER
  • HIGH CLEARANCE DUAL EXHAUST TAILPIPES
  • MODERATELY AGGRESSIVE DEEP SOUND
  • FULL STAINLESS STEEL CONSTRUCTION
  • QUICK & EASY INSTALLATION

SPECS:

  • BOLT HOLE DIAMETER: 0.375"
  • EXIT LOCATION: DOR
  • FLANGE LENGTH: 4.218"
  • FLANGE QUANTITY: 1
  • FLANGE THICKNESS: 0.375"
  • FLANGE WIDTH: 4.524"
  • MOUNTING HARDWARE: YES
  • MOUNTING HARDWARE INCLUDED: YES
  • MOUNTING HOLE SPACING: 3.624"
  • MOUNTING METHOD: BOLT ON
  • MUFFLER BODY HEIGHT: 9.75"
  • MUFFLER BODY LENGTH: 17"
  • MUFFLER BODY WIDTH: 4"
  • MUFFLER CONFIGURATION: SINGLE
  • MUFFLER INLET COUNT: 1
  • MUFFLER INLET INSIDE DIAMETER: 2.39"
  • MUFFLER INTERNAL DESCRIPTION: ABSORPTION
  • MUFFLER OUTLET: 2
  • MUFFLER OUTLET INSIDE DIAMETER: 2.14"
  • MUFFLER QUANTITY: 1
  • MUFFLER STYLE: TRANSVERSE
  • NUMBER OF BOLT HOLES PER FLANGE: 3
  • OVERALL EXHAUST SYSTEM DIAMETER: 2.25"
  • PIPE MATERIAL/TYPE: 409 STAINLESS
  • PRODUCT TYPE: EXHAUST SYSTEM KIT
  • SYSTEM COLOR/FINISH: NATURAL
  • TIP CUT: ANGLE
  • TIP DIAMETER: 3.5"
  • TIP LENGTH: 8.5"
  • TIP QUANTITY: 2
  • TIP SHAPE: ROUND
  • TIP STYLE: DOUBLE WALL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
