OFF-ROAD COMPETITION EXHAUST,15-17 RZR XP,DOR

BRAND NEW XDR OFF-ROAD PERFORMANCE EXHAUST SYSTEM, DOUBLE WALL PIPE STYLE, DOR EXIT, COMPATIBLE WITH 2014 POLARIS RZR XP 1000 & XP4 1000

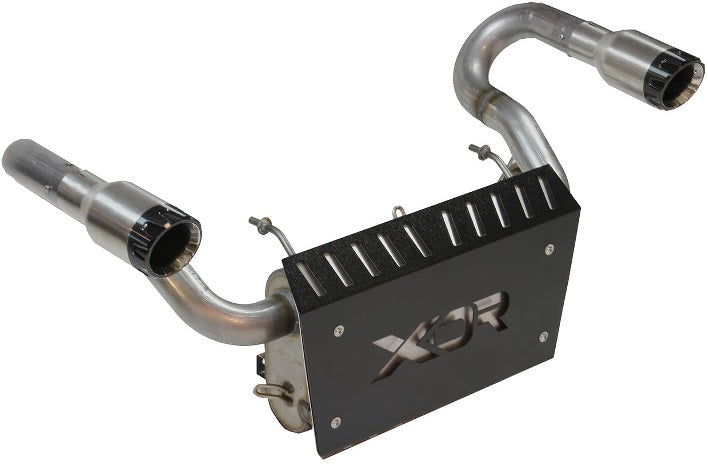

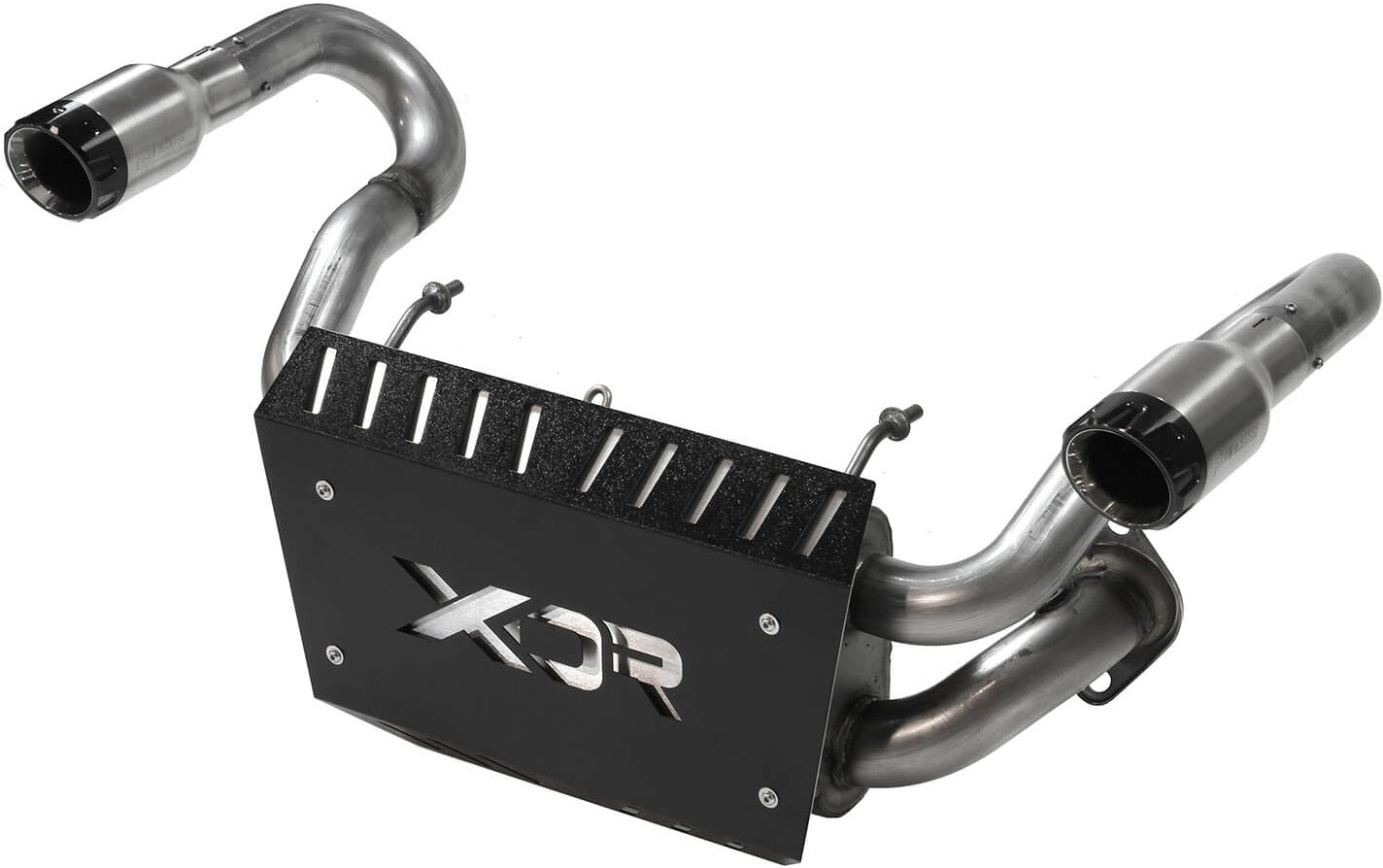

THIS NEW BOLT-ON XDR PERFORMANCE EXHAUST SYSTEM FOR THE 2015-2017 POLARIS RZR XP 1000 AND XP4 1000 WITH THE NATURALLY ASPIRATED ENGINE. THE SYSTEM CONNECTS AT THE FACTORY FLANGED CONNECTION AND IS FIRMLY HELD IN PLACE USING THE FACTORY RUBBER MOUNTS & SPRINGS.

FEATURES INCLUDE 409S STAINLESS STEEL CONSTRUCTION, A 2.50" MANDREL-BENT INLET TUBE FLOWING INTO THE "STRAIGHT-THROUGH" CROSS-FLOW XDR COMPETITION MUFFLER PROVIDING A DEEP MODERATE TO AGGRESSIVE SOUND LEVEL. THE DUAL 2.25" MANDREL-BENT TAILPIPES ARE TUCKED UP HIGH WITHIN THE REAR FENDERS & ARE FINISHED OFF WITH A PAIR OF 3.50" BRUSHED 304S STAINLESS STEEL TIPS WITH BLACK ALUMINUM END CAPS.

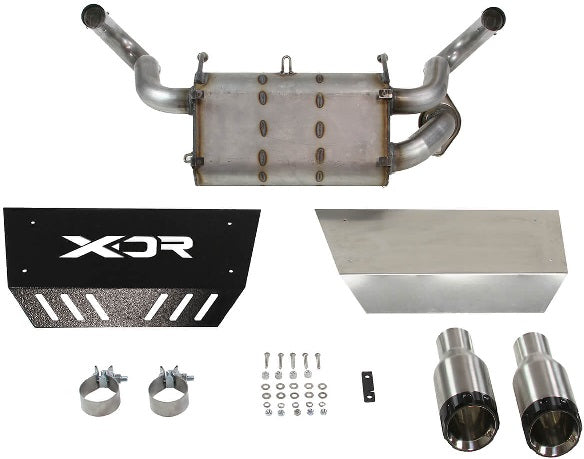

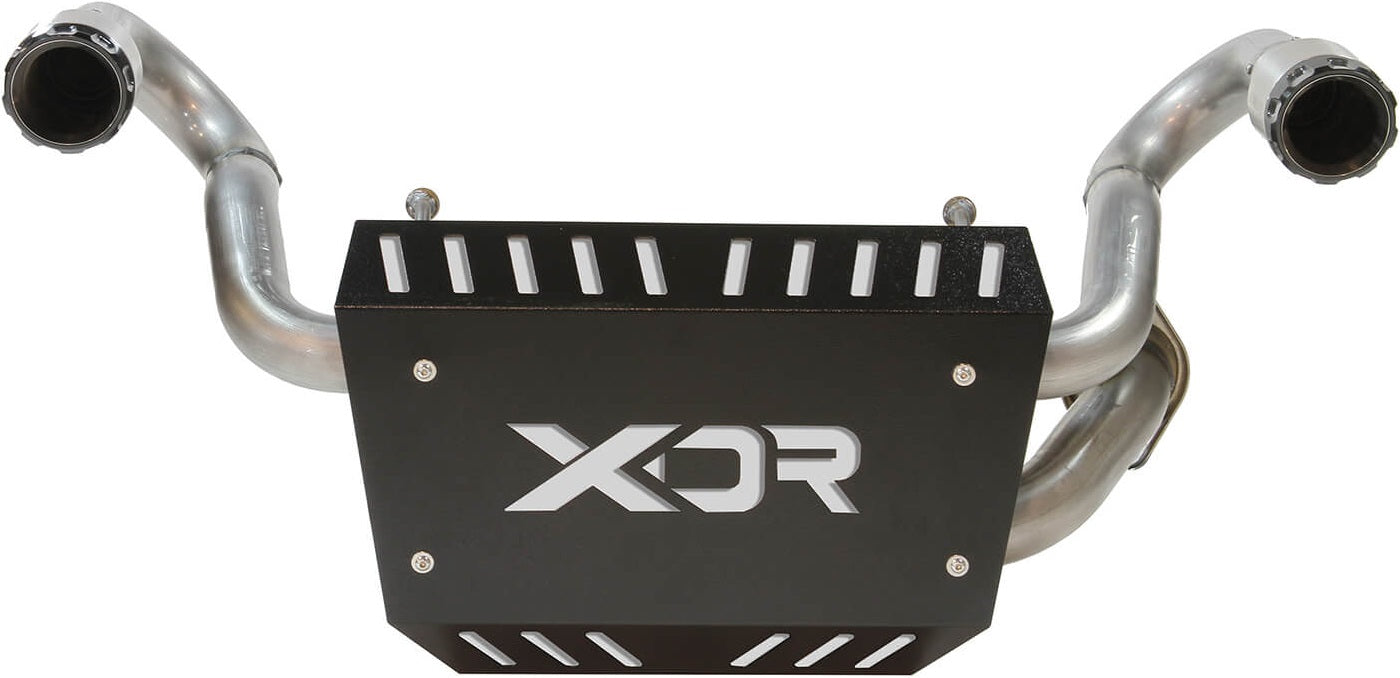

THE SYSTEM COMES WITH A CUSTOM BLACK POWDER COATED SHIELD SPORTING A LASER-CUT XDR LOGO IN THE SHIELD SHOWING EVERYONE BEHIND YOU WHY YOU ARE RZR SOUNDS SO GOOD. INCLUDES ALL NECESSARY HARDWARE AND DETAILED INSTRUCTIONS FOR A SIMPLE AT HOME INSTALLATION.

NOTE: DOES NOT INCLUDE CATALYTIC CONVERTER. COMPETITION USE ONLY.

COMPATIBLE WITH:

• POLARIS:
• 2015-2017 RZR XP/XP4 1000 WITH NATURALLY ASPIRATED ENGINE

FEATURES:

• 3.50" BRUSHED DUAL WALL TIPS WITH BLACK ANODIZED ALUMINUM ENDS
• HIGH PERFORMANCE XDR COMPETITION MUFFLER
• HIGH CLEARANCE DUAL EXHAUST TAILPIPES
• MODERATELY AGGRESSIVE DEEP SOUND
• STAINLESS STEEL CONSTRUCTION
• QUICK AND EASY INSTALLATION

SPECS:

• BOLT HOLE DIAMETER: 0.64"
• EXIT LOCATION: DOR
• FLANGE LENGTH: 6.062"
• FLANGE QUANTITY: 1
• FLANGE THICKNESS: 0.984"
• FLANGE WIDTH: 4.016"
• MOUNTING HARDWARE: YES
• MOUNTING HOLE SPACING: 4.72"
• MOUNTING METHOD: BOLT ON
• MUFFLER BODY HEIGHT: 9.75"
• MUFFLER BODY LENGTH: 17"
• MUFFLER BODY MATERIAL: 409 STAINLESS NATURAL
• MUFFLER BODY WIDTH: 4"
• MUFFLER CONFIGURATION: SINGLE
• MUFFLER INLET COUNT: 1
• MUFFLER INLET INSIDE DIAMETER: 2.39"
• MUFFLER INTERNAL DESCRIPTION: ABSORPTION
• MUFFLER OUTLET: 2
• MUFFLER OUTLET INSIDE DIAMETER: 2.14"
• MUFFLER QUANTITY: 1
• MUFFLER STYLE: TRANSVERSE
• # OF BOLT HOLES PER FLANGE: 2
• OVERALL EXHAUST SYSTEM DIAMETER: 2.25
• PIPE MATERIAL/TYPE: 409 STAINLESS
• PRODUCT TYPE: EXHAUST SYSTEMS / KITS
• TIP CUT: ANGLE
• TIP DIAMETER: 3.5"
• TIP LENGTH: 8.5"
• TIP MATERIAL: 304 STAINLESS/ALUMINUM
• TIP QUANTITY: 2
• TIP SHAPE: ROUND
• TIP STYLE: DOUBLE WALL
• Y-PIPES INCLUDED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
