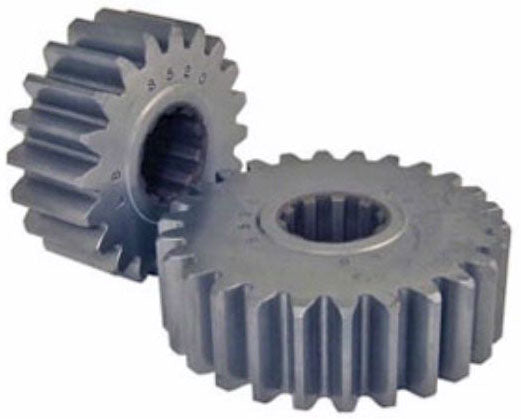

QUICKCHANGE GEARSET 1 3/8",10 SPLINE,#13, 20T/25T

QUICKCHANGE GEARSET 1 3/8",10 SPLINE,#13, 20T/25T

WIN 8513

$99.99
$99.99
View full details
  • TOOTH COUNT: 20/25
  • PREMIUM QUALITY WINTERS QUICKCHANGE GEARS
  • 10 SPLINE
  • PRECISION MATCHED SETS
  • TO FIGURE EXACT GEAR RATIO, 1ST GET THE SPUR RATIO

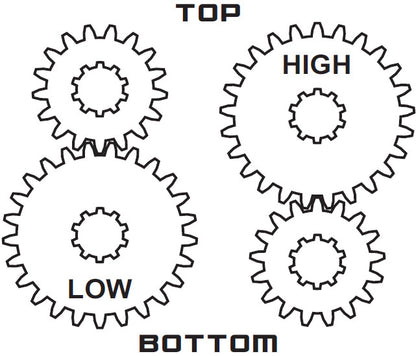

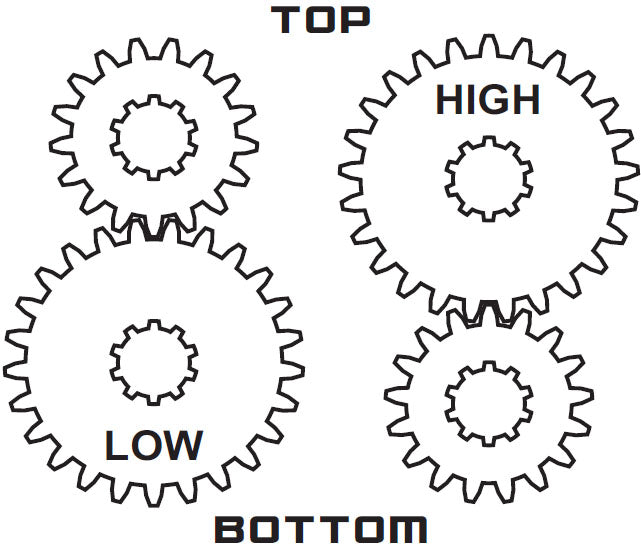

    *SPUR RATIO=TEETH ON TOP GEAR DIVIDED BY TEETH ON BOTTOM GEAR
  • THEN FIGURE THE GEAR RATIO
    *GEAR RATIO=SPUR RATIO X R&P RATIO

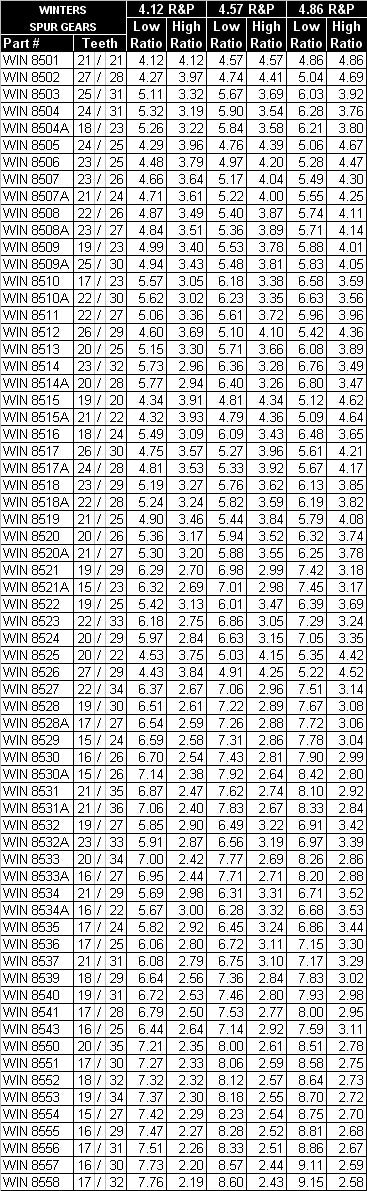

  • CLICK ON THE CHART AT THE RIGHT TO SEE THE RATIOS ON EACH GEAR SET INCLUDING THIS ONE
