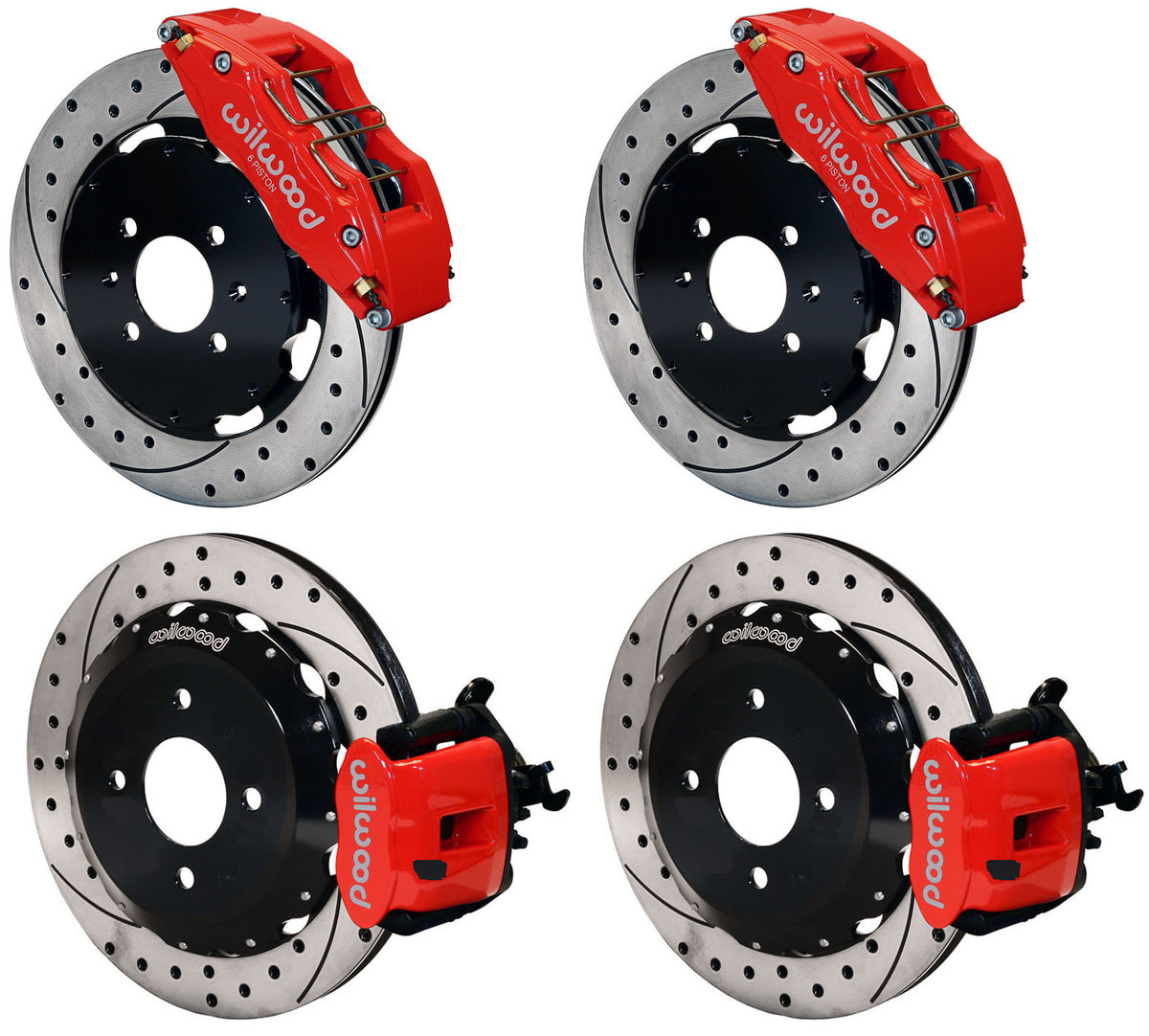

WILWOOD 93-00 HONDA CIVIC FULL DISC BRAKE KIT,2.46 OFFSET REAR
WILWOOD 93-00 HONDA CIVIC FULL DISC BRAKE KIT,2.46 OFFSET REAR
SKU:WIL 140-6163X5B
Couldn't load pickup availability
Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.
Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.
Brake Package Details: Click an arrow below to expand the specifications for each package.
12 Inch Rotors — WIL 140-6163X5
Complete Kit Includes:
- Forged Dynalite Bolt-on Front Hat & 12.19" Disc Brake Kit (Part #140-6163) for Both Front Wheels
- Combination Parking Brake Bolt-on Rear Hat & 12.19" Disc Brake Kit (Part #140-10209) for Both Rear Wheels
Fits:
-
Honda:
- Civic Coupe:
- 1993 EX with Automatic
- 1994-1995 EX with Automatic & Without ABS
- 1996 EX with ABS
- 1997-2000 EX, All
- Civic Hatchback:
- 1996-1997, All
- Civic Sedan:
- 1994-1995 LX with Automatic & with ABS
- 1996 LX with ABS
- 1996 EX with ABS
- 1997-2000 EX
- *These Are All for the 4 Lug Applications
- Civic Coupe:
For the Front, Forged Billet Dynalite Calipers, oversized 12.19" O.D. rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style. They are fully compatible with OE master cylinder output, while retaining the full factory ABS functions.
These Big Brake kits require at least 16" diameter wheels on the front and at least 17" diameter wheels on the rear.
Front Kit Includes Parts for Both Front Wheels:
- Forged Dynalite Calipers - Black or Red
Complete kit weighs approximately 74 lbs.
You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
12 Inch Rotors / 6-Piston Front — WIL 140-10735X5
Complete Kit Includes:
- Forged Dynapro 6 Piston Bolt-on Front Hat & 12.19" Disc Brake Kit (Part #140-10735) for Both Front Wheels
- Combination Parking Brake Bolt-on Rear Hat & 12.19" Disc Brake Kit (Part #140-10209) for Both Rear Wheels
Fits:
-
Honda:
- Civic Coupe:
- 1993 EX, All with Automatic Transmission
- 1994-1995 EX, All with Automatic Transmission and Without ABS
- 1996 EX, All with ABS
- 1997-2000 EX, All
- Civic Hatchback:
- 1996-1997, All
- Civic Sedan:
- 1996 EX, All with ABS
- 1997-2000 EX, All
- 1994-1995 LX, All with Automatic Transmission and with ABS
- 1996 LX, All with ABS
- Civic Coupe:
- *These Are All for the 4 Lug Applications
For the Front, Dynapro 6 forged billet calipers are combined with oversized 12.19" O.D. rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style. They are fully compatible with OE master cylinder output, while retaining the full factory ABS functions.
These Big Brake kits require at least 16" diameter wheels.
Front Kit Includes Parts for Both Front Wheels:
- Dynapro 6 Piston Calipers - Black or Red
Complete kit weighs approximately 78 lbs.
You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
Complete Kit Includes:
- Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
- Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
For the Rear, Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance for high performance applications.
These kits are the perfect complement wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.
Each kit is engineered specific for each vehicle.
Front Kit Includes Parts for Both Front Wheels:
- .810" Thick X 12.19" O.D. Rotors
- Caliper Mounting Brackets
- BP-10 Smart Compound Brake Pads
- Brake Hats
- All Hardware Necessary to Install the Complete Braking System on Both Front Wheels
Rear Kit Includes Parts for Both Rear Wheels:
- .810" Thick X 12.19" O.D. Rotors
- Combination Parking Calipers - Black or Red
- Caliper Mounting Brackets
- BP-10 Smart Compound Brake Pads
- Brake Hats
- All Hardware Necessary to Install the Complete Braking System on Both Rear Wheels
