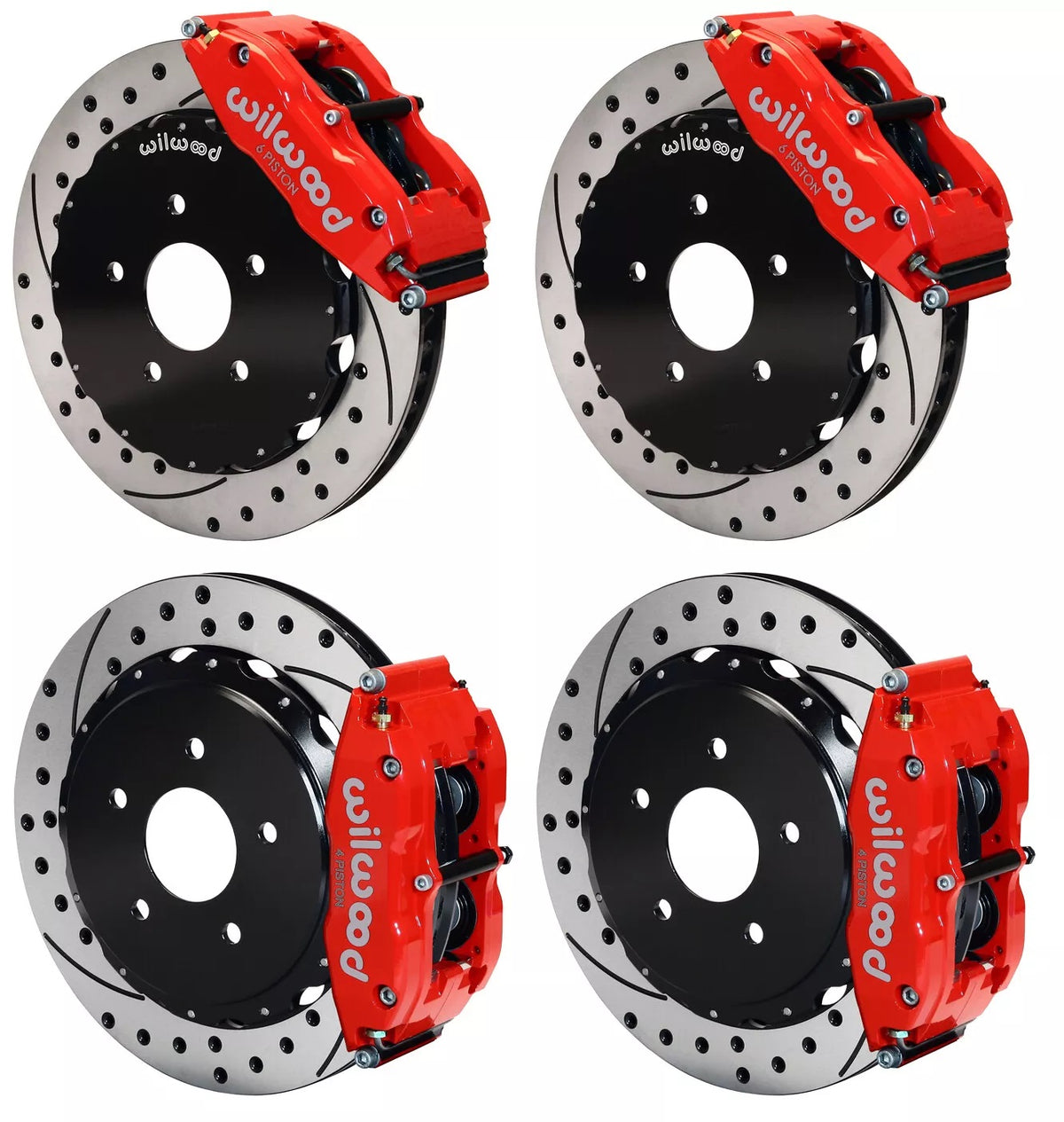

WILWOOD 85-87 CORVETTE,FULL DISC BRAKE KIT

Complete Kit Includes:

• Superlite 6R Bolt-on Front Hat & 12.88" Disc Brake Kit (Part #140-11918) for Both Front Wheels
• Superlite 4R Bolt-on Rear Hat & 12.88" Disc Brake Kit (Part #140-11920) for Both Rear Wheels

For the Front, the unsurpassed braking capacity of the SL6 forged billet 6-piston caliper serves as the base of these Big Brake kits. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.

For the Rear, Billet Superlite 4R Four piston calipers are combined with BP-20 compound pads and 13" rotors in this series of big brake kits for custom high performance street and show machines. This series of specialized kits retains full use of the OE parking brake, master cylinder output, and ABS where used.

Big Brake kits provide increased brake capacity and complementary style with wheel, tire, and suspension upgrades on high performance street/track machines, daily drivers, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 17" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• 1.10" Thick X 12.88" O.D. Rotors

Complete kit weighs approximately 101 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.

Complete Kit Includes:

• Superlite 6R Bolt-on Front Hat & 14.00" Disc Brake Kit (Part #140-11919) for Both Front Wheels
• Superlite 4R Bolt-on Rear Hat & 12.90" Disc Brake Kit (Part #140-11920) for Both Rear Wheels

For the Front, The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complementary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.

For the Rear, Forged Narrow Superlite 4R four piston calipers are combined with BP-20 compound pads and 1" rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUVs retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complementary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades.

These Big Brake kits require at least 18" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• 1.10" Thick X 14.00" O.D. Rotors

Complete kit weighs approximately 111 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.
