WILWOOD 73-83 CDP W/DISC SPINDLES FULL DISC BRAKE KIT

Complete Kit Includes:

• Forged Dynalite Pro Series Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-15465) for Both Front Wheels
• Low-Profile Dynapro Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11395) for Both Rear Wheels

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A, B, E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the Express purpose of maintaining the factory wheel position. This new kit does not widen the track from the original disc brake rotor assembly. Based on the venerable Forged Billet Dynalite (FDLI) caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 11.00" O.D. Rotors
• Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 88 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

Complete Kit Includes:

• Forged Dynalite Pro Series Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-15468) for Both Front Wheels
• Forged Dynalite Pro Series Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A, B, E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles. We have completely redesigned our Pro Series line of brake kits using a larger 12.19" rotor and new forged aluminum hubs with the Express purpose of maintaining the factory wheel position. This new kit does not widen the track from the original disc brake rotor assembly. Based on the venerable Forged Billet Dynalite (FDLI) caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation. FDLI Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 12.19" O.D. Rotors with Hats
• Forged Dynalite Calipers - Black or Red
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Bearing Retainers

Complete kit weighs approximately 96 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

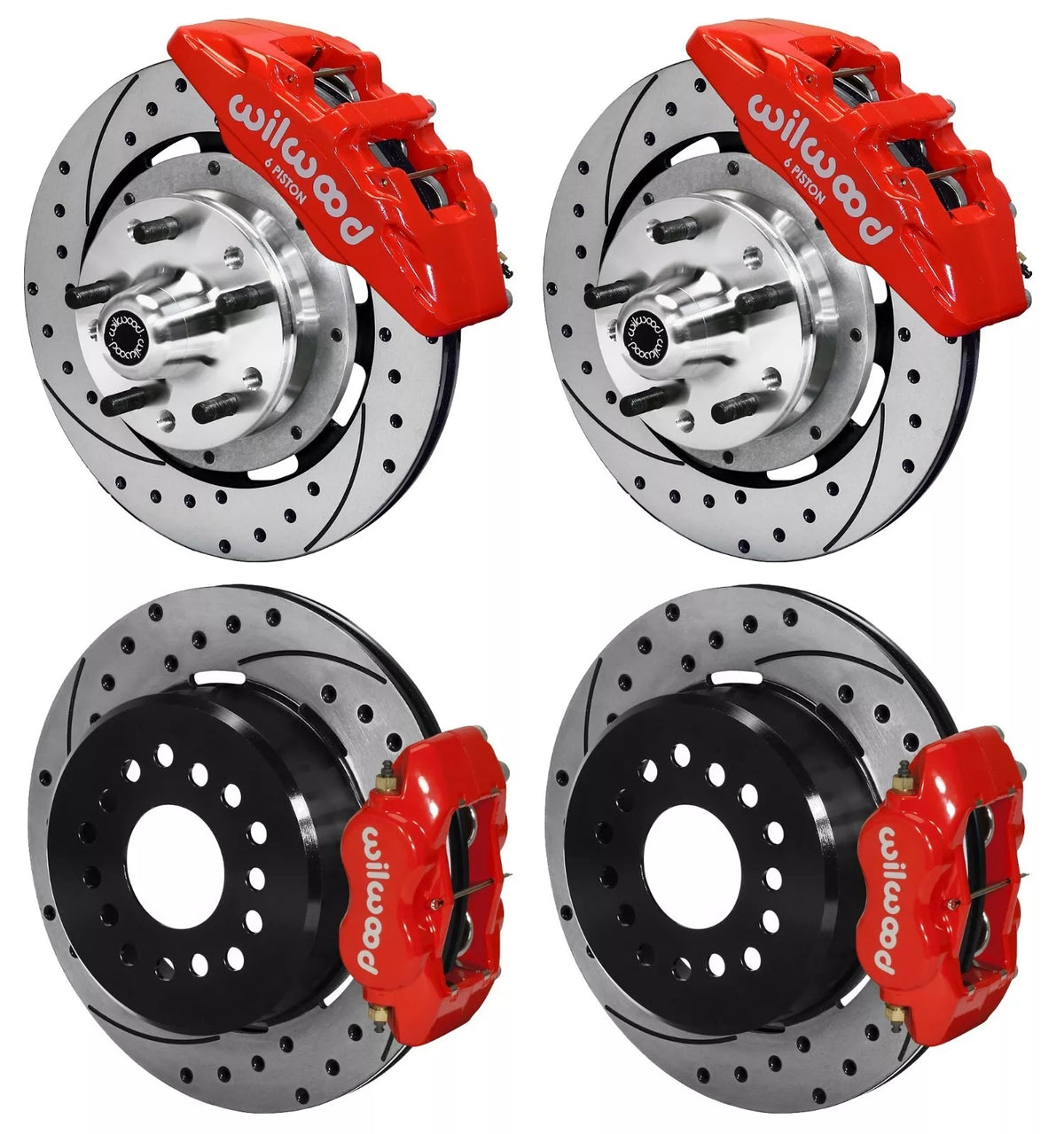

Complete Kit Includes:

• Forged Dynapro 6 Piston Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-17321) for Both Front Wheels
• Forged Dynalite 4 Piston Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

For the Front, Dynapro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits complement wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines.

For the Rear, This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Dynapro 6 Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 12.19" O.D. Rotors with Hats
• Forged Dynalite Calipers - Black or Red
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Bearing Retainers

Complete kit weighs approximately 97 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
