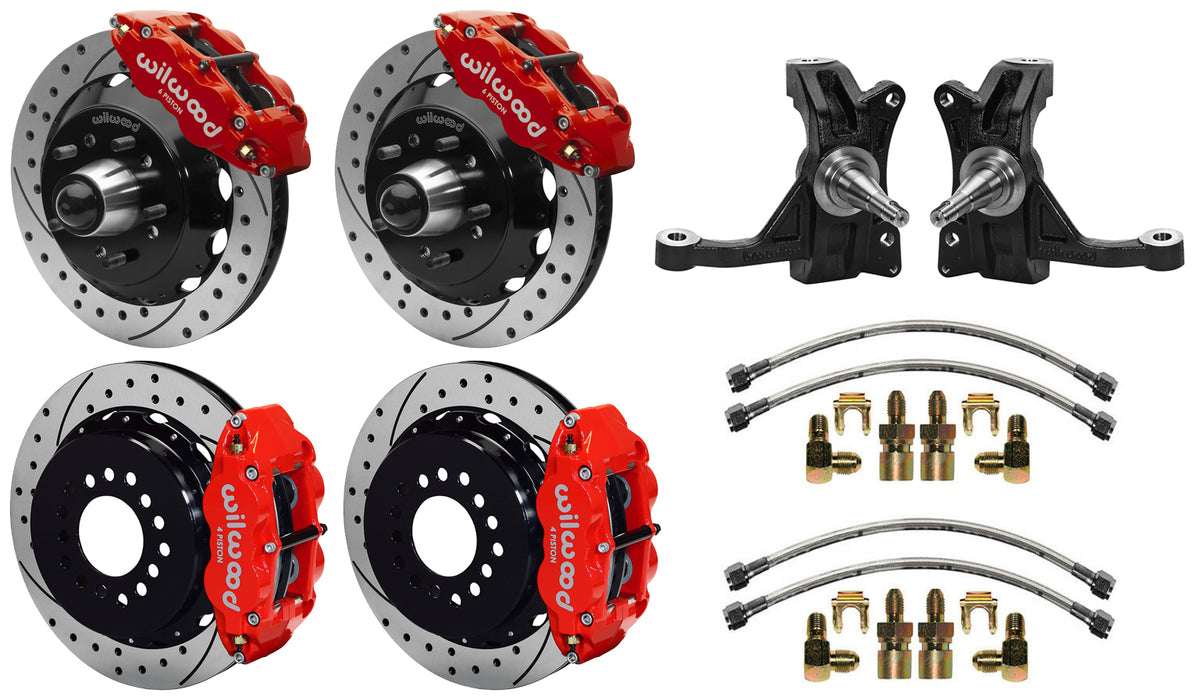

WILWOOD 71-87 CHEVY C10 FULL DISC BRAKE KIT & WILWOOD IRON DROP SPINDLES

Features Rotors and Black or Red Calipers.

This Combined Wilwood Kit by Southwest Speed Includes:

• Front 6 Piston, 12.19" Disc Brake Kit (#140-15940)
• Rear 4 Piston, 12.19" Disc Brake Kit (#140-10094)

For the front, Superlite big brake kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle truck rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 12.19" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• 1.10" Thick X 12.19" O.D. Rotors
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals

Rear Kit Includes Parts for Both Rear Wheels:

• 0.81" Thick X 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 155 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

This Combined Wilwood Kit by Southwest Speed Includes:

• Front 6 Piston, 13.06" Disc Brake Kit (#140-15941)
• Rear 4 Piston, 12.19" Disc Brake Kit (#140-10094)

For the front, Superlite big brake kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 13.06" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle truck rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 12.19" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 17" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• 1.25" Thick X 13.06" O.D. Rotors
• BP-20 Smart Compound Brake Pads
• Brake Hats, Hubs, Bearings, Seals

Rear Kit Includes Parts for Both Rear Wheels:

• 0.81" Thick X 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 148 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

This Combined Wilwood Kit by Southwest Speed Includes:

• Front 6 Piston, 13.06" Disc Brake Kit (#140-15941)
• Rear 4 Piston, 12.88" Disc Brake Kit (#140-10093)

For the front, Superlite big brake kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 13.06" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, forged narrow Superlite 4r rear disc kits provide the ultimate big brake solution where a parking brake is needed. FNSL4R four piston calipers, 13" two-piece rotors and high friction pads provide optimized and balanced braking to complement the front brakes. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 17" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• 1.25" Thick X 13.06" O.D. Rotors
• BP-20 Smart Compound Brake Pads
• Brake Hats, Hubs, Bearings, Seals

Rear Kit Includes Parts for Both Rear Wheels:

• 1.10" Thick X 12.88" O.D. Rotors
• Forged Superlite 4 Piston Calipers - Black or Red
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Brake Hats

Complete kit weighs approximately 178 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.
