WILWOOD 71-87 CHEVY C10 FRONT DISC BRAKE KIT & WILWOOD ALUM DROP SPINDLES
WILWOOD 71-87 CHEVY C10 FRONT DISC BRAKE KIT & WILWOOD ALUM DROP SPINDLES
SKU:WIL 140-15302X2-7187-B
Couldn't load pickup availability

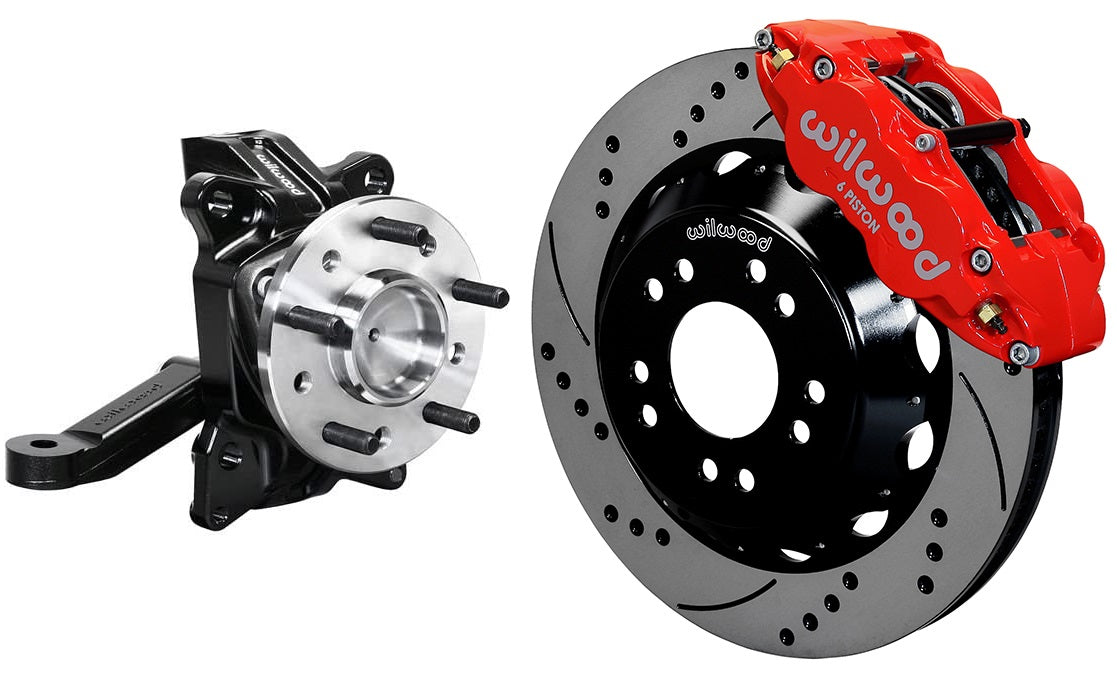

Brand New Wilwood Premium Big Brake Superlite Bolt-on Front Disc Brake Kit with Wilwood WWE 2 1/2" Drop Pro Spindles.
Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.
Brake Package Details: Click an arrow below to expand the specifications for each package.
12 Inch Rotors — WIL 140-15302X2-7187
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 12.19" Disc Brake Kit (Part #140-15302-DR) with Wilwood WWE 2 1/2" Drop Pro Spindles (Part #831-14202).
Superlite big brake front kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.
These kits require at least 16" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.10" Thick X 12.19" O.D. Rotors
- Forged Narrow Superlite 4 Piston Calipers - Black or Red
Complete kit weighs approximately 93 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
13 Inch Rotors — WIL 140-15303X2-7187
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 13" Disc Brake Kit (Part #140-15303-DR) with Wilwood WWE 2 1/2" Drop Pro Spindles (Part #831-14202).
Features Rotors and Black or Red Calipers.
Superlite big brake front kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 13.06" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.
These kits require at least 17" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 13.06" O.D. Rotors
- Forged Narrow Superlite 6 Piston Calipers - Black or Red
Complete kit weighs approximately 97 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
14 Inch Rotors — WIL 140-15304X2-7187
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 14" Disc Brake Kit (Part #140-15304-DR) with Wilwood WWE 2 1/2" Drop Pro Spindles (Part #831-14201).
Superlite big brake front kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged Superlite calipers, 14" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.
These kits require at least 18" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 14" O.D. Rotors
- Forged Narrow Superlite 6 Piston Calipers - Black or Red
Complete kit weighs approximately 104 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
Fits:
- 1971-1987 Chevy C10 and GMC C15 2WD Trucks and Suburbans
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
Includes the 2 1/2" drop modular spindles, steering arms, hubs, and bolts. Wilwood's ProSpindles are specifically designed for use with Wilwood's disc brake kits. They have a 2.50" drop for a more aggressive stance without affecting steering geometry. Constructed from a proprietary grade of forged aluminum with an integrated modular bearing hub assembly that supports both 5 x 4.75" and 5 x 5.00" wheel bolt circles. Direct mounting for radial caliper brackets create strong, zero-flex platform for brake mounting. They feature a black e-coating finish and 1/2"-20 wheel studs.
Kit Includes Parts for Both Front Wheels:
- Wilwood WWE 2 1/2" Drop Spindles
- Caliper Mounting Brackets
- BP-10 Smart Compound Brake Pads
- Hats
- All Bolts, Washers, and Shims Necessary to Install the Complete Braking System on Both Front Wheels
