WILWOOD 71-72 CHEVY C10 FRONT DISC BRAKE KIT & RIDETECH SPINDLES
WILWOOD 71-72 CHEVY C10 FRONT DISC BRAKE KIT & RIDETECH SPINDLES
SKU:WIL 140-10775X2-7172-B
Couldn't load pickup availability

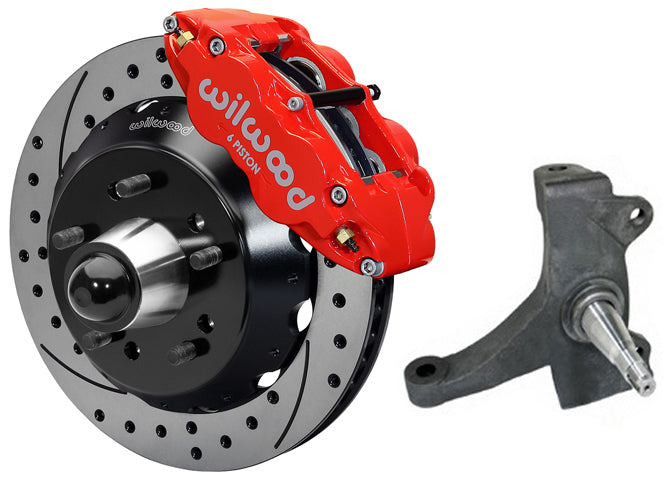

Brand New Wilwood Premium Big Brake Superlite Bolt-on Front Disc Brake Kit with Ridetech 2 1/2" Drop Spindles (Part #11359300).
Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.
Brake Package Details: Click an arrow below to expand the specifications for each package.
13 Inch Rotors — WIL 140-10775X2-7172
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 13" Disc Brake Kit (Part #140-10775) with Ridetech 2 1/2" Drop Spindles (Part #11359300).
Superlite big brake front kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 13.06" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.
These kits require at least 17" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 13.06" O.D. Rotors
Complete kit weighs approximately 83 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
14 Inch Rotors — WIL 140-10776X2-7172
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 14" Disc Brake Kit (Part #140-10776) with Ridetech 2 1/2" Drop Spindles (Part #11359300).
Superlite big brake front kits provide the added advantage of larger diameter brake rotors for american muscle trucks and rods. Forged narrow Superlite calipers, 14" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.
These kits require at least 18" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 14" O.D. Rotors
Complete kit weighs approximately 94 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
Fits:
- 1971-1972 Chevy C10 and GMC C15 2WD Trucks and Suburbans
- 1971-1972 Chevy Blazers and GMC Jimmys
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
Includes the 2 1/2" drop Ridetech spindles. They are precision-cast from high-quality ductile iron with 4140 chromoly CNC machined pins.
Kit Includes Parts for Both Front Wheels:
- Ridetech 2 1/2" Drop Spindles
- Forged Narrow Superlite 6 Piston Calipers - Black or Red
- Caliper Mounting Brackets
- BP-10 Smart Compound Brake Pads
- Hats, Hubs
- All Bolts, Washers, and Shims Necessary to Install the Complete Braking System on Both Front Wheels
