WILWOOD 69-70 IMPALA FULL DISC BRAKE KIT

WILWOOD 69-70 IMPALA FULL DISC BRAKE KIT

WIL 140-12040X4B

$2,369.99
$2,369.99
View full details

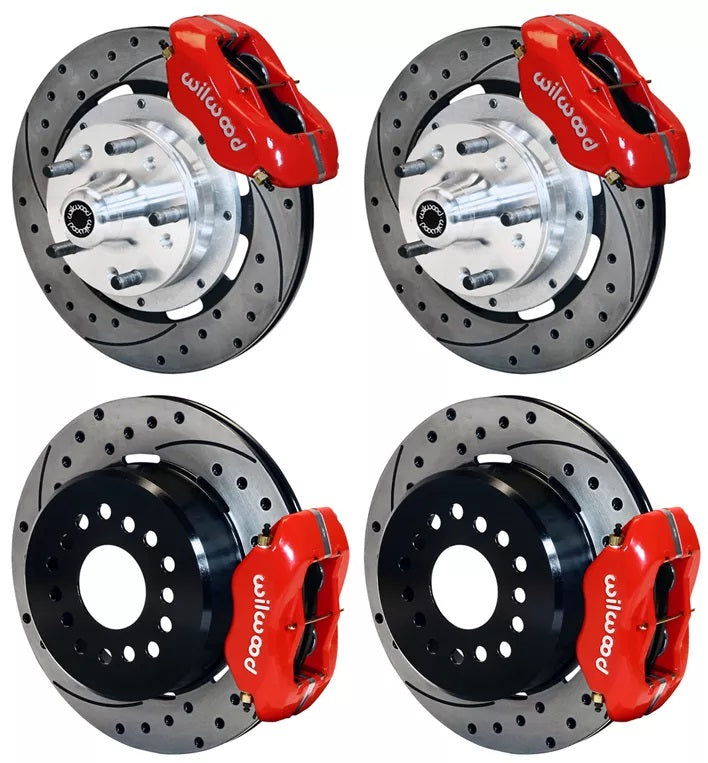

Brand New Wilwood Complete Pro Series Front & Rear Disc Brake Kit.

Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.

Brake Package Details: Click an arrow below to expand the specifications for each package.

11 Inch Rotors — WIL 140-12040X4

Complete Kit Includes:

  • Forged Dynalite Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-12040) for Both Front Wheels
  • Low-Profile Dynapro Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11385) for Both Rear Wheels

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 11.00" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 11.00" O.D. Rotors
  • Low-Profile Dynapro 4 Piston Calipers - Black or Red
  • Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 85 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

12 Inch Rotors — WIL 140-12045X4

Complete Kit Includes:

  • Forged Dynalite Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-12045) for Both Front Wheels
  • Forged Dynalite Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-10094) for Both Rear Wheels

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect complement wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 1.10" Thick X 12.19" O.D. Rotors
  • Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 12.19" O.D. Rotors
  • Forged Dynalite Calipers - Black or Red
  • Caliper Mounting Brackets
  • Drum Parking Brake Assemblies

Complete kit weighs approximately 94 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

Complete Kit Includes:

  • Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
  • Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

Fits:

  • Chevrolet Bel Air:
    • 1968 Without Power Disc Brakes (Single Piston Caliper)*
    • 1969-1970, All*
  • Chevrolet Biscayne:
    • 1968 Without Power Disc Brakes (Single Piston Caliper)*
    • 1969-1970, All*
  • Chevrolet Brookwood:
    • 1969 with Spindles Used on OE Drum Brakes*
    • 1970, All*
  • Chevrolet Caprice:
    • 1968 Without Power Disc Brakes (Single Piston Caliper)*
    • 1969-1970, All*
  • Chevrolet Impala:
    • 1968 Without Power Disc Brakes (Single Piston Caliper)*
    • 1969-1970, All*
  • Chevrolet Kingswood:
    • 1969 with Spindles Used on OE Drum Brakes*
    • 1970, All*
  • Chevrolet Townsman:
    • 1969 with Spindles Used on OE Drum Brakes*
    • 1970, All*
  • *The rear kit fits rear ends with the "Chevy C10" Axle Flanges and a 2.42" Axle Flange Offset (see diagrams below). Approximately 90% of all these applications will have those particular axle flanges with that offset. However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.*

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

Front Kit Includes Parts for Both Front Wheels:

  • Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Hubs, Bearings, Seals, &
  • All Hardware Necessary to Install the Complete Braking System on Both Front Wheels

Rear Kit Includes Parts for Both Rear Wheels:

  • BP-10 Smart Compound Brake Pads
  • All Hardware Necessary to Install the Complete Braking System on Both Rear Wheels
