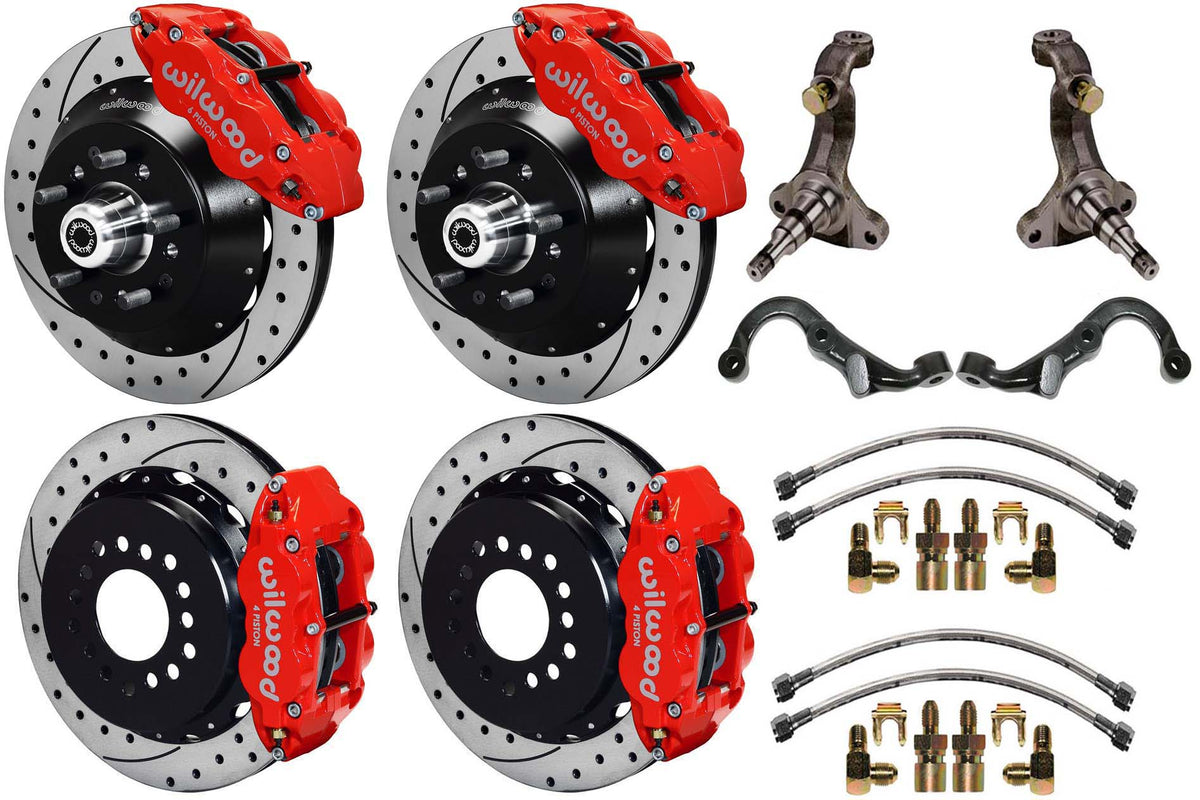

WILWOOD 67-69 GM F-BODY FULL DISC BRAKE KIT & STOCK SPINDLES & ARMS

WILWOOD 67-69 GM F-BODY FULL DISC BRAKE KIT & STOCK SPINDLES & ARMS

WIL 140-10996X6-6769-B

$2,589.99
$2,589.99
View full details

Brand New Wilwood Front & Rear Disc Brake Kit with Stock Height Spindles, Steering Arms, and Steel Braided Line Kits.

Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.

Brake Package Details: Click an arrow below to expand the specifications for each package.

11 Inch Rotors — WIL 140-10996X6-6769

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 4 Piston, 11" Disc Brake Kit (#140-10996)
  • Rear 4 Piston, 11" Disc Brake Kit (#140-11398)

For the front, Wilwood Pro Series brake kits provide the added advantage of premium 11" diameter brake rotors, forged Dynalite calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 11" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 0.81" Thick X 11" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • 0.81" Thick X 11" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 105 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

12 Inch Rotors — WIL 140-7675X6-6769

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 4 Piston, 12.19" Disc Brake Kit (#140-7675)
  • Rear 4 Piston, 12.19" Disc Brake Kit (#140-7141)

For the front, Wilwood Pro Series big brake kits provide the added advantage of premium 12.19" diameter brake rotors, forged Dynalite calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 12.19" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 0.81" Thick X 12.19" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • 0.81" Thick X 12.19" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 115 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

12 Inch Rotors / 6-Piston Front — WIL 140-10510X6-6769

Features Black or Red 6 Piston Front and 4 Piston Rear Calipers.

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 6 Piston, 12.19" Disc Brake Kit (#140-10510)
  • Rear 4 Piston, 12.19" Disc Brake Kit (#140-7141)

For the front, Wilwood Pro Series big brake kits provide the added advantage of premium 12.19" diameter brake rotors, forged Dynapro 6 piston calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 12.19" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 0.81" Thick X 12.19" O.D. Rotors
  • Forged Dynapro 6 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • 0.81" Thick X 12.19" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 115 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

13 Inch Front / 12 Inch Rear Rotors — WIL 140-12271X6-6769

Features Black or Red 6 Piston Front and 4 Piston Rear Calipers.

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 6 Piston, 13" Disc Brake Kit (#140-12271)
  • Rear 4 Piston, 12.19" Disc Brake Kit (#140-7141)

For the front, Wilwood premium big brake kits combined 12.90" diameter brake rotors, forged narrow Superlite 6 piston calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, FDL Pro Series disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite 4-piston calipers, 12.19" O.D. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 17" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 1.10" Thick X 12.90" O.D. Rotors
  • Forged Narrow Superlite 6 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • 0.81" Thick X 12.19" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 128 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

13 Inch Rotors — WIL 140-12271X8-6769

Features Black or Red 6 Piston Front and 4 Piston Rear Calipers.

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 6 Piston, 13" Disc Brake Kit (#140-12271)
  • Rear 4 Piston, 13" Disc Brake Kit (#140-12964)

For the front, Wilwood premium big brake kits combined 12.90" diameter brake rotors, forged narrow Superlite 6 piston calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, Superlite rear disc kits provide the ultimate big brake solution for popular muscle car rear axles that require a parking brake. Superlite 4-piston calipers, 12.88" O.D. rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 17" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 1.10" Thick X 12.90" O.D. Rotors
  • Forged Narrow Superlite 6 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • 1.10" Thick X 12.88" O.D. Rotors
  • Forged Superlite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 145 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

14 Inch Front / 13 Inch Rear Rotors — WIL 140-9804X6-6769

Features Black or Red 6 Piston Front and 4 Piston Rear Calipers.

This Combined Wilwood Kit by Southwest Speed Includes:

  • Front 6 Piston, 14" Disc Brake Kit (#140-9804)
  • Rear 4 Piston, 13" Disc Brake Kit (#140-12964)

For the front, Wilwood premium big brake kits combined 14" diameter brake rotors, forged narrow Superlite 6 piston calipers, and high performance Wilwood brake pads to generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.

For the rear, Superlite rear disc kits provide the ultimate big brake solution for popular muscle car rear axles that require a parking brake. Superlite 4-piston calipers, 12.88" O.D. rotors, and high friction pads provide optimized and balanced braking for all types of machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 18" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • 1.10" Thick X 14" O.D. Rotors
  • Forged Narrow Superlite 6 Piston Calipers - Black or Red
  • Brake Hats

Rear Kit Includes Parts for Both Rear Wheels:

  • 1.10" Thick X 12.88" O.D. Rotors
  • Forged Superlite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 150 lbs.

You can view and download the complete assembly instruction booklet for the front kit and the rear kit.

Fits:

  • 1967-1969 Chevy Camaro
  • 1968-1974 Chevy II / Nova
  • 1973-1974 Buick Apollo
  • 1973-1974 Oldsmobile Omega
  • 1967-1969 Pontiac Firebird
  • 1971-1974 Pontiac Ventura

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Southwest Speed 4140 steel spindles will accept stock ball joints

Front Kit Includes Parts for Both Front Wheels:

  • Front Stock Height Spindles (#103-9801)
  • Front Steering Arms (#101-9646)
  • Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Full Front Line Kit with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings; Connects to the Wilwood Calipers and Stock Hard Lines
  • Brake Hubs
  • All Bearings, Races, Seals, Bolts, Washers, and Shims Necessary to Install the Complete Braking System on Both Front Wheels

Rear Kit Includes Parts for Both Rear Wheels:

  • Drum Parking Brake Assemblies with Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Full Rear Line Kit with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings; Connects to the Wilwood Calipers and Stock Hard Lines
  • All Bolts, Washers, and Shims Necessary to Install the Complete Braking System on Both Rear Wheels
Bolt-On Disc Brake Kits > Chevy/GM Kits > Camaro/Firebird Front Kits, 1967-1969 > Front and Rear Kits with Stock Height Spindles
