WILWOOD 65-82 CORVETTE,FULL DISC BRAKE KIT
WILWOOD 65-82 CORVETTE,FULL DISC BRAKE KIT
SKU:WIL 140-10616X4B
Couldn't load pickup availability

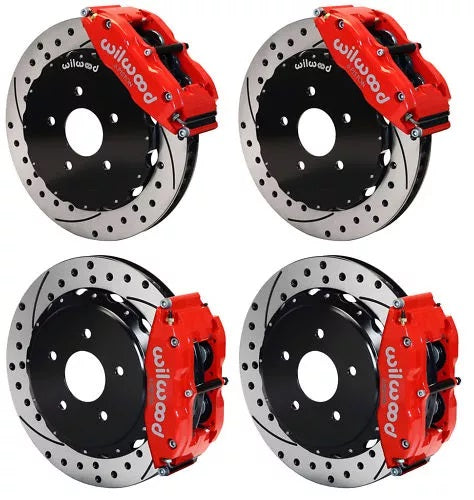

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.
Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.
Brake Package Details: Click an arrow below to expand the specifications for each package.
13 Inch Rotors — WIL 140-10616X4
Complete Kit Includes:
- Superlite 6R Bolt-on Front Hat & 13.06" Disc Brake Kit (Part #140-10616) for Both Front Wheels
- Superlite 4R Bolt-on Rear Hat & 12.90" Disc Brake Kit (Part #140-10471) for Both Rear Wheels
- Full Line Kit for the Rear with 12" Steel Braided Lines & Caliper Fittings. the 90 Degree Male Fitting on the End of the Lines Connect Straight to the Brake Lines.
For the Rear, Billet Superlite 4R Four piston calipers are combined with BP-10 compound pads and 13" rotors in this series of big brake kits for custom high performance street and show machines. This series of specialized kits retains full use of the OE parking brake, master cylinder output, and ABS where used.
These Big Brake kits require at least 17" diameter wheels.
Front Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 13.06" O.D. Rotors
Rear Kit Includes Parts for Both Rear Wheels:
- 1.10" Thick X 12.90" O.D. Rotors
- Billet Superlite 4R Calipers - Black or Red
Complete kit weighs approximately 102 lbs.
You can view and download the complete assembly instruction booklet for the Front kit here.
You can view and download the complete assembly instruction booklet for the Rear kit here.
14 Inch Rotors — WIL 140-10617X4
Complete Kit Includes:
- Superlite 6R Bolt-on Front Hat & 14" Disc Brake Kit (Part #140-10617) for Both Front Wheels
- Superlite 4R Bolt-on Rear Hat & 14" Disc Brake Kit (Part #140-10472) for Both Rear Wheels
- Full Line Kit for the Rear with 12" Steel Braided Lines & Caliper Fittings. the 90 Degree Male Fitting on the End of the Lines Connects Straight to the Stock Brake Lines.
For the Rear, Billet Superlite 4R Four piston calipers are combined with BP-10 compound pads and 14" rotors in this series of big brake kits for custom high performance street and show machines. This series of specialized kits retains full use of the OE parking brake, master cylinder output, and ABS where used.
These Big Brake kits require at least 18" diameter wheels.
Front Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 14.00" O.D. Rotors
Rear Kit Includes Parts for Both Rear Wheels:
- 1.10" Thick X 14.00" O.D. Rotors
- Billet Superlite 4R Calipers - Black or Red
Complete kit weighs approximately 121 lbs.
You can view and download the complete assembly instruction booklet for the Front kit here.
You can view and download the complete assembly instruction booklet for the Rear kit here.
Complete Kit Includes:
- Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
Fits:
- 1965-1967 Chevrolet Corvette C-2
- 1968-1982 Chevrolet Corvette C-3
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
For the Front, the unsurpassed braking capacity of the SL6 forged billet 6-piston caliper serves as the base of these Big Brake kits. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.
Big Brake kits provide increased brake capacity and complementary style with wheel, tire, and suspension upgrades on high performance street/track machines, daily drivers, and ultra-styled show machines.
Each kit is engineered specific for each vehicle.
Front Kit Includes Parts for Both Front Wheels:
- Billet Superlite 6R Calipers - Black or Red
- Caliper Mounting Brackets
- Spindle Mounting Brackets
- BP Smart Compound Brake Pads
- Brake Hats, &
- All Hardware Necessary to Install the Complete Braking System on Both Front Wheels
Rear Kit Includes Parts for Both Rear Wheels:
- Caliper Mounting Brackets
- BP Smart Compound Brake Pads
- Brake Hats, &
- All Hardware Necessary to Install the Complete Braking System on Both Rear Wheels
