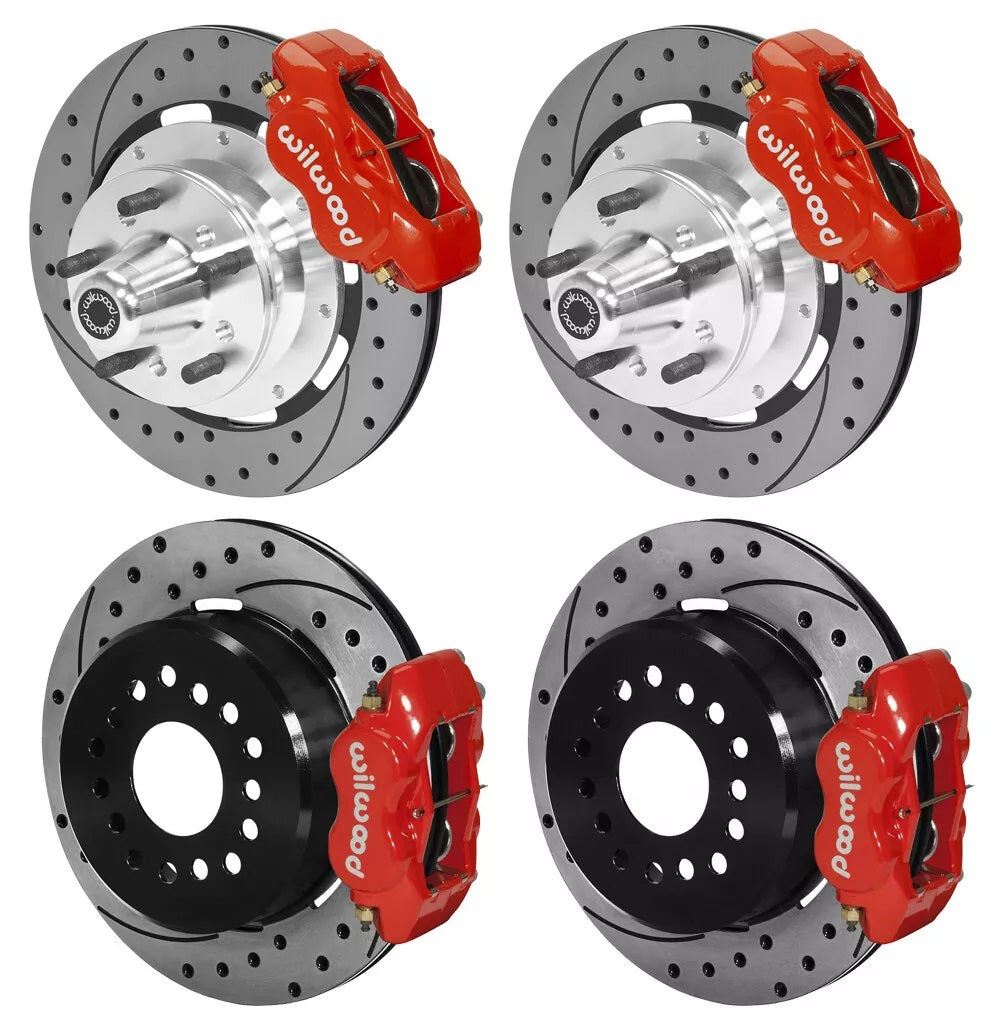

WILWOOD 65-72 CDP A-BODY W/DISC SPINDLES FULL DISC BRAKE KIT

Complete Kit Includes:

• Forged Dynalite Pro Series Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-15459) for Both Front Wheels
• Low-Profile Dynapro Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11395) for Both Rear Wheels

For the Front, FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 11.00" O.D. Rotors
• Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 88 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

Complete Kit Includes:

• Forged Dynalite 4 Piston Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-15461) for Both Front Wheels
• Forged Dynalite 4 Piston Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

For the Front, FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to complement wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

For the Rear, FDL Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 12.19" O.D. Rotors with Hats
• Forged Dynalite 4 Piston Calipers - Black or Red
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Bearing Retainers

Complete kit weighs approximately 96 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
