WILWOOD 65-69 FORD,MERCURY FULL DISC BRAKE KIT

WILWOOD 65-69 FORD,MERCURY FULL DISC BRAKE KIT

WIL 140-11071X4B

$2,329.99
$2,329.99
View full details

Brand New Wilwood Complete Pro Series Front & Rear Disc Brake Kit.

Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.

Brake Package Details: Click an arrow below to expand the specifications for each package.

11 Inch Rotors — WIL 140-11071X4

Complete Kit Includes:

  • Forged Dynalite Pro Series Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-11071) for Both Front Wheels
  • Low-Profile Dynapro Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11403) for Both Rear Wheels

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect complement wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 11.00" O.D. Rotors
  • Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 11.00" O.D. Rotors with Hats
  • Low-Profile Dynapro Calipers - Black or Red

Complete kit weighs approximately 84 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

12 Inch Rotors — WIL 140-11072X4

Complete Kit Includes:

  • Forged Dynalite Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-11072) for Both Front Wheels
  • Forged Dynalite Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-9282) for Both Rear Wheels

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect complement wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 12.19" O.D. Rotors
  • Forged Dynalite Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 12.19" O.D. Rotors with Hats
  • Forged Dynalite Calipers - Black or Red

Complete kit weighs approximately 93 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

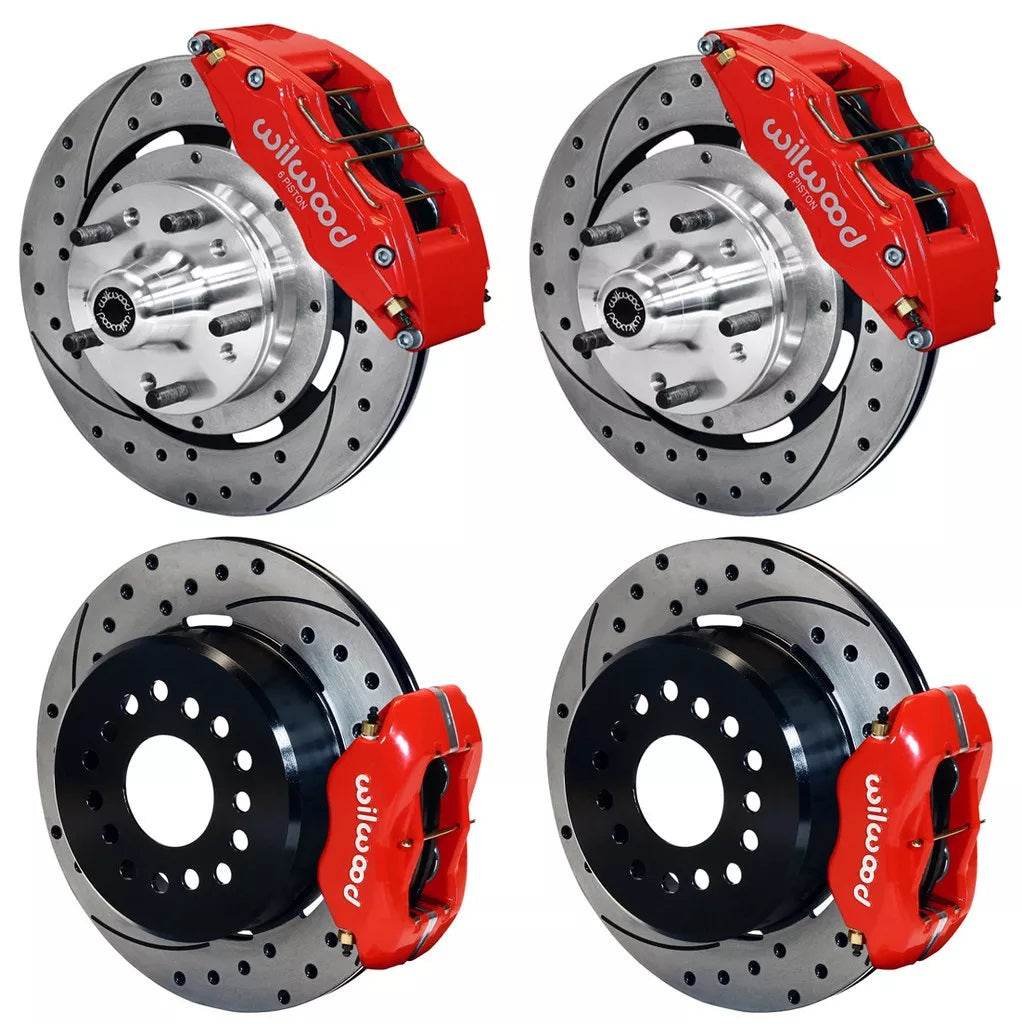

12 Inch Rotors / 6-Piston Front — WIL 140-12947X4

Complete Kit Includes:

  • Forged Dynapro 6 Piston, Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-12947) for Both Front Wheels
  • Forged Dynalite 4 Piston, Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-9282) for Both Rear Wheels

For the Front, DP6 Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. These versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 12.19" O.D. Rotors
  • Forged Dynapro 6 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 12.19" O.D. Rotors with Hats
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 97 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

Complete Kit Includes:

  • Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
  • Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

Fits:

  • Ford:
    • 1965-1966 Mustang with V-8 Spindles*
    • 1967-1969 Mustang, All*
    • 1970 Mustang, GT350 & 500 Only*
    • 1966-1969 Fairlane, All*
    • 1965 Falcon with V-8 Spindles*
    • 1966-1969 Falcon, All*
    • 1970 Falcon with Drum Brake Spindles (Through 8/24/1969 Only)*
    • 1970 Maverick with Drum Brake Spindles (Through 8/24/1969 Only)*
    • 1965 Ranchero with V-8 Spindles*
    • 1966-1969 Ranchero, All*
    • 1968-1969 Torino, All*
  • Mercury:
    • 1965 Comet with V-8 Spindles*
    • 1966-1969 Comet, All*
    • 1967-1969 Cougar, All*
    • 1967-1969 Cyclone, All*
    • 1968-1969 Montego, All*
  • *The rear kit fits Rear Ends with Small Bearing Ford Axle Flanges (3.336" x 2.000" Mounting Pattern) & with a 2.50" Axle Flange offset (see diagrams at the very bottom). Approximately 90% of all these vehicles will have that particular rear end with that offset. However, there are some that don't, so it is always better to measure your axle flange and axle flange offset to be sure your Ford or Mercury has this rear end.*

Front Kit Includes Parts for Both Front Wheels:

  • Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Hubs, Bearings, Seals, &
  • All Hardware Necessary to Install the Complete Braking System on Both Front Wheels

Rear Kit Includes Parts for Both Rear Wheels:

  • Drum Parking Brake Assemblies with Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • All Hardware Necessary to Install the Complete Braking System on Both Rear Wheels
Bolt-On Disc Brake Kits > Ford Kits > Mustang/Mid-Size Front & Rear Kits, 1965-1969
