WILWOOD 63-70 CHEVY C10 FRONT DISC BRAKE KIT & WIL IRON DROP SPINDLES,6-LUG
WILWOOD 63-70 CHEVY C10 FRONT DISC BRAKE KIT & WIL IRON DROP SPINDLES,6-LUG
SKU:WIL 140-15944X2-6370-B
Couldn't load pickup availability

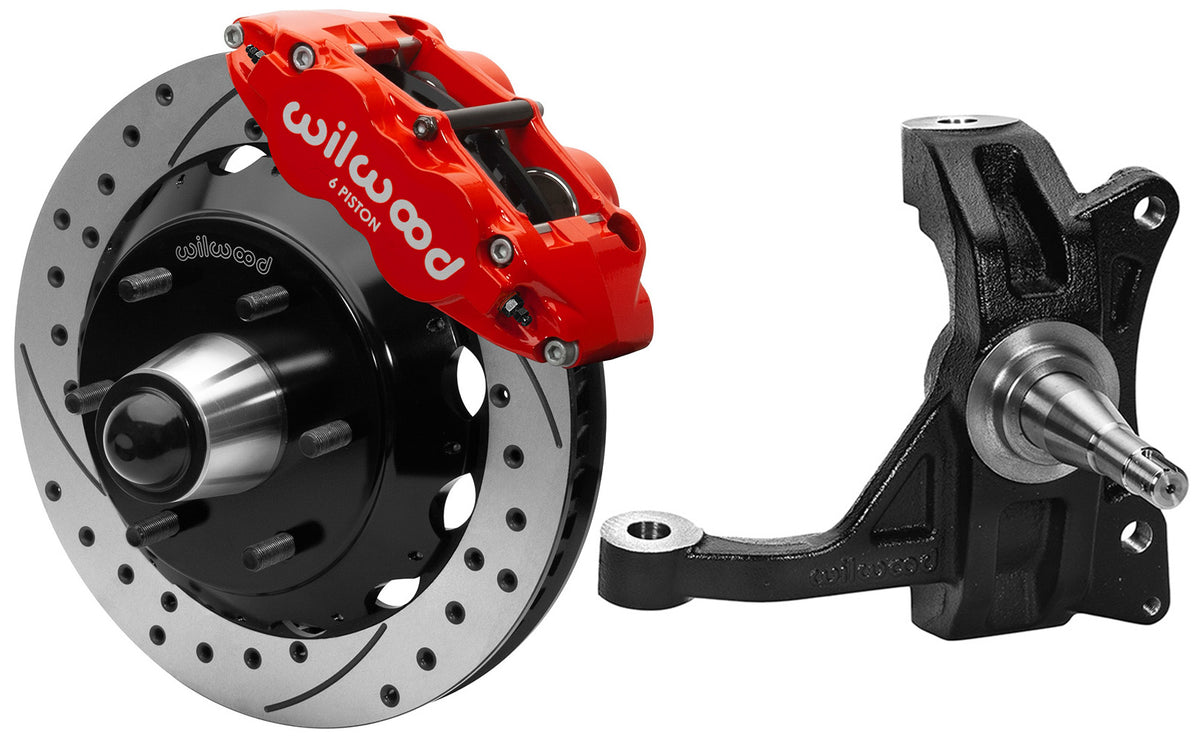

Brand New Wilwood Premium Big Brake Superlite Bolt-on Front Disc Brake Kit with Wilwood 2 1/2" Drop Cast Steel Pro Spindles.
Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.
Brake Package Details: Click an arrow below to expand the specifications for each package.
12 Inch Rotors — WIL 140-15944X2-6370
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 12.19" Disc Brake Kit (Part #140-15944) with Wilwood 2 1/2" Drop Cast Steel Pro Spindles (Part #831-15931).
The unsurpassed braking capacity of the forged narrow Superlite 6r six-piston caliper serves as the base of this 12.19" big rotor kit with Wilwood's new 1 piece iron drop pro spindles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complementary style with wheel, tire, and suspension upgrades. This kit contains hubs with 6 x 5.50" bolt circle .
These kits require at least 16" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.10" Thick X 12.19" O.D. 1-Piece Rotors & Hats
- BP-10 Smart Compound Brake Pads
- Hubs, Bearings, Seals
Complete kit weighs approximately 106 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
13 Inch Rotors — WIL 140-15945X2-6370
Brand New Wilwood Premium Big Brake Superlite Bolt-on Front 13" Disc Brake Kit (Part #140-15945) with Wilwood 2 1/2" Drop Cast Steel Pro Spindles (Part #831-15931).
The unsurpassed braking capacity of the forged narrow Superlite 6r six-piston caliper serves as the base of this 13" big rotor kit with Wilwood's new 1 piece iron drop pro spindles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complementary style with wheel, tire, and suspension upgrades. This kit contains hubs with 6 x 5.50" bolt circle .
These kits require at least 17" diameter wheels.
Kit Includes Parts for Both Front Wheels:
- 1.25" Thick X 13.06" O.D. Rotors
- BP-20 Smart Compound Brake Pads
- Brake Hats, Hubs, Bearings, Seals
Complete kit weighs approximately 99 lbs.
You can view and download the complete assembly instruction booklet for this kit here.
Fits:
- 1963-1970 Chevy C10 and GMC C15 2WD Trucks and Suburbans with 6-LUG Wheels
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
Wilwood's C10 steel ProSpindle kits contain a pair of one-piece spindles and integrated steering arms for Chevrolet & GMC 2WD C10/C15 pickups and suburbans. Specifically designed for use with these Wilwood's disc brake kits and with a 2.50" drop for a more aggressive stance without affecting steering geometry. Constructed from a proprietary grade of cast steel with a traditional bearing snout to support the large brakes.
Kit Includes Parts for Both Front Wheels:
- Wilwood 2 1/2" Drop Spindles
- Forged Narrow Superlite 6 Piston Calipers - Black or Red
- Caliper Mounting Brackets
- All Bolts, Washers, and Shims Necessary to Install the Complete Braking System on Both Front Wheels
