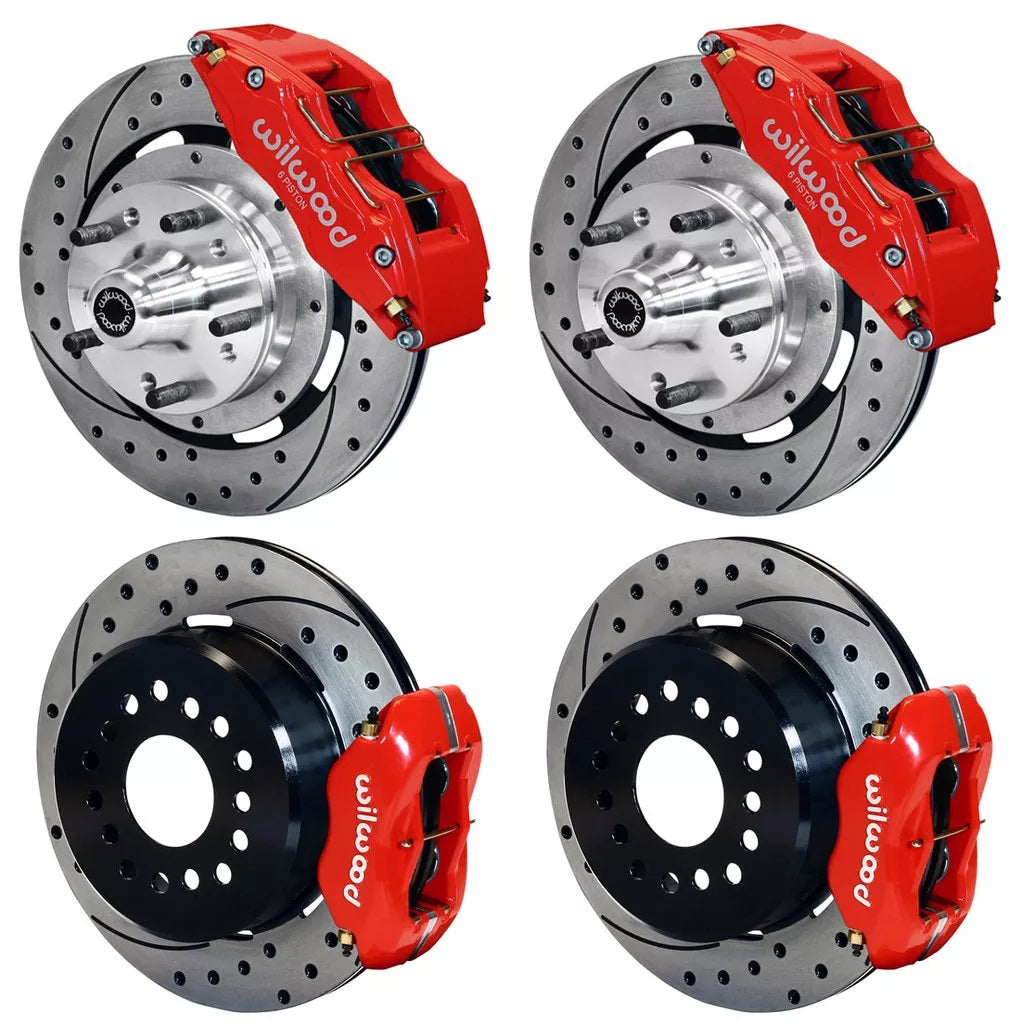

WILWOOD 62-72 CDP B&E BODY W/DRUMS FULL DISC BRAKE KIT

WILWOOD 62-72 CDP B&E BODY W/DRUMS FULL DISC BRAKE KIT

WIL 140-11020X4B

$2,499.99
$2,499.99
View full details

Brand New Wilwood Complete Zero-Offset Pro Series Front & Rear Disc Brake Kit.

Select your brake package, caliper finish, and rotor style above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.

Brake Package Details: Click an arrow below to expand the specifications for each package.

11 Inch Rotors — WIL 140-11020X4

Complete Kit Includes:

  • Forged Dynalite 4 Piston Pro Series Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-11020) for Both Front Wheels
  • Low-Profile Dynapro 4 Piston Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11395) for Both Rear Wheels

For the Front, Wilwood's "Zero-Offset" FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. They are designed specifically to maintain the factory wheel position. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 11.00" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 11.00" O.D. Rotors with Hats
  • Low-Profile Dynapro 4 Piston Calipers - Black or Red

Complete kit weighs approximately 84 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

12 Inch Rotors — WIL 140-9828X4

Complete Kit Includes:

  • Forged Dynalite 4 Piston Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-9828) for Both Front Wheels
  • Forged Dynalite 4 Piston Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. They are designed specifically to maintain the factory wheel position. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc brake kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 12.19" O.D. Rotors
  • Forged Dynalite 4 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 12.19" O.D. Rotors with Hats
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 95 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

12 Inch Rotors / 6-Piston Front — WIL 140-10740X4

Complete Kit Includes:

  • Forged Dynapro 6 Piston Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-10740) for Both Front Wheels
  • Forged Dynalite 4 Piston Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

For the Front, Dynapro 6 forged billet calipers are combined with 12.19" diameter rotors for traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc brake kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 16" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

  • .810" Thick X 12.19" O.D. Rotors
  • Forged Dynapro 6 Piston Calipers - Black or Red

Rear Kit Includes Parts for Both Rear Wheels:

  • .810" Thick X 12.19" O.D. Rotors with Hats
  • Forged Dynalite 4 Piston Calipers - Black or Red

Complete kit weighs approximately 99 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

Complete Kit Includes:

  • Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
  • Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
  • Parking Brake Cable Kit That Connects to the Wilwood Parking Brake Assemblies, Then Comes Together to Join the Stock Cable Behind the Transmission

Fits:

  • *Make Sure to See the Notes About the Rear Kit Fitment Below the Vehicle List*
  • Dodge:
    • 1963-1964 Dodge 330*
    • 1963-1964 Dodge 440*
    • 1962-1964 Dodge B-Body*
    • 1965-1972 Dodge B-Body with Drum Brake Front Spindles*
    • 1970-1972 Dodge Challenger with Drum Brake Front Spindles*
    • 1966-1972 Dodge Charger with Drum Brake Front Spindles*
    • 1965-1972 Dodge Coronet with Drum Brake Front Spindles*
    • 1970-1972 Dodge E-Body with Drum Brake Front Spindles*
    • 1962-1964 Dodge Polara*
    • 1968-1971 Dodge Super Bee with Drum Brake Front Spindles*
  • Plymouth:
    • 1962-1964 Plymouth B-Body*
    • 1965-1972 Plymouth B-Body with Drum Brake Front Spindles*
    • 1970-1972 Plymouth Barracuda with Drum Brake Front Spindles*
    • 1962-1964 Plymouth Belvedere*
    • 1965-1970 Plymouth Belvedere with Drum Brake Front Spindles*
    • 1970-1972 Plymouth E-Body with Drum Brake Front Spindles*
    • 1962-1964 Plymouth Fury*
    • 1967-1972 Plymouth GTX with Drum Brake Front Spindles*
    • 1968-1972 Plymouth Road Runner with Drum Brake Front Spindles*
    • 1965-1972 Plymouth Satellite with Drum Brake Front Spindles*
    • 1962-1964 Plymouth Savoy*
  • *The rear kit fits 8 3/4" and 9 3/4" Mopar / Dana 60 rear ends with the Axle Flanges shown below and a 2.36" Axle Flange Offset (see diagram below to show how to measure that offset). Approximately 90% of all these Dodge and Plymouth cars came stock with these particular axle flanges with that offset. However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.*
  • *Also, This Rear Kit Requires the Use of the Snap Ring Style, Non-Adjustable Green Bearings (MO-400). for Wilwood's More Detailed Description of This Bearing, You Can See Page 2 of the Rear Assembly Instruction Booklet.*

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

These kits are the perfect complement wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

Front Kit Includes Parts for Both Front Wheels:

  • Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Hubs, Bearings, Seals, &
  • All Hardware Necessary to Install the Complete Braking System on Both Front Wheels

Rear Kit Includes Parts for Both Rear Wheels:

  • Drum Parking Brake Assemblies with Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • All Hardware Necessary to Install the Complete Braking System on Both Rear Wheels
