WILWOOD 1965-1982 CORVETTE D8 BRAKE CALIPER & PAD SET,FRONT & REAR

WILWOOD 1965-1982 CORVETTE D8 BRAKE CALIPER & PAD SET,FRONT & REAR

WIL 140-10789X2B

$1,679.99
$1,679.99
View full details

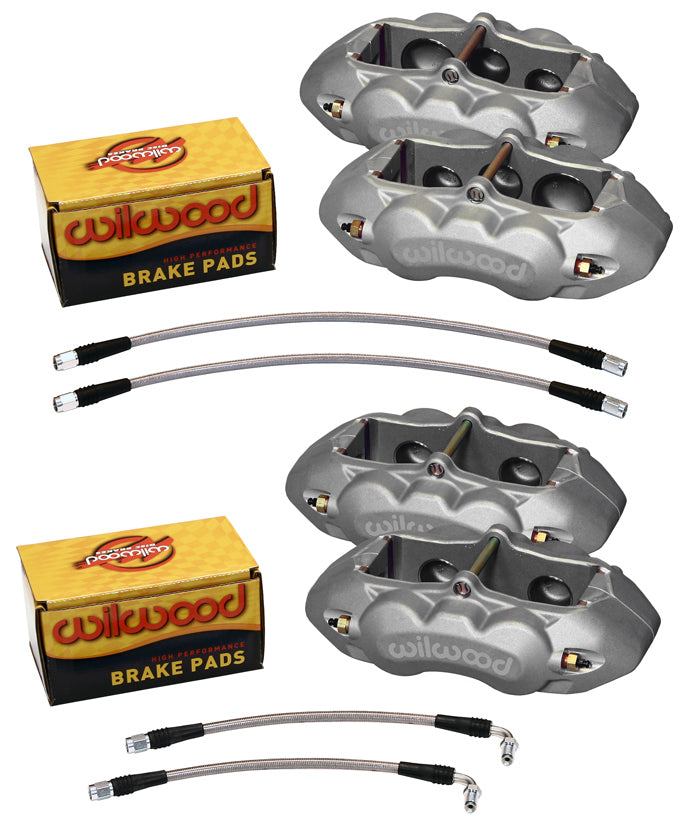

Brand New Wilwood Selected Caliper Finish Caliper Set with D8-6 Calipers, D8-4 Calipers, Pads, & Flexline Kit for Both Front & Rear Wheels.

Select your brake package, caliper finish above, then add the selected item to your cart. Review the specifications, included components, wheel-clearance requirements, and vehicle fitment below for your chosen package.

Brake Package Details: Click an arrow below to expand the specifications for each package.

4-Piston Front / 4-Piston Rear — WIL 140-10789X2

Brand New Wilwood Black or Red Caliper Set with D8-6 Calipers, D8-4 Calipers, Pads, & Flexline Kit for Both Front & Rear Wheels (Part #140-11857-BK, 140-10790-BK).

  • Wilwood D8 Front and Rear Caliper, Pad, & Flex Line Kit for:
    *1965-1982 Chevrolet Corvette
  • Featuring Black or Red Powder Coated 4 Piston Calipers
  • Wilwood Brake Kits Consist of Specifically Engineered & Matched Groups of Components Designed to Provide Superior Brake System Performance & Custom Appeal Over a Wide Range of Applications
  • The D8-4 Caliper Is a Direct Bolt-on Replacement for the Factory Original Calipers on All 1965-1982 Corvettes
  • Forged Billet Aluminum Bodies, Stainless Steel Pistons, & Competition Style High-Temperature Seals Put an End to the Rust, Bore Pitting, and Seal Failures That Plague the OE Caliper Design
  • Kit Includes:
    *D8-4 Calipers - Black or Red,
    *BP-10 Brake Pads, &
    *Stainless Steel Flexline Kit for All 4 Wheels
  • You Can Download the Complete Assembly Instruction Booklets for the Front and Rear
    • 6-Piston Front / 4-Piston Rear — WIL 140-11857X2

    Fits:

    • Chevrolet:
      • 1965-1967 Corvette C-2
      • 1968-1982 Corvette C-3

    The D8-6 caliper is a direct bolt-on replacement for the factory original calipers on all 1965-82 Corvette's. Forged billet aluminum bodies, stainless steel pistons and competition style high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. Calipers can be used with any wheel that clears the OE calipers. The factory piston sizes were duplicated to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain DOT compliant stainless steel braided brake lines with BP-10 high friction pads.

    The D8-4 caliper is a direct bolt-on replacement for the factory original calipers on all 1965-1982 Corvette's. Forged billet aluminum bodies, stainless steel pistons, & competition style high-temperature seals put an end to the rust, bore pitting, & seal failures that plague the OE caliper design. Kits contain DOT compliant stainless steel braided brake lines with BP-10 high friction pads.

    Kit Includes Parts for Both Front and Rear Wheels:

    • D8-6 Front Calipers - 6 Piston
    • BP-10 Smart Compound Brake Pads
    • Stainless Steel Flexline Kit
    • D8-4 Rear Calipers - 4 Piston
    • Stainless Steel Flexline Kit

    Complete kit weighs approximately 34 lbs.

    You can download the complete assembly instruction booklets for the front and rear.
