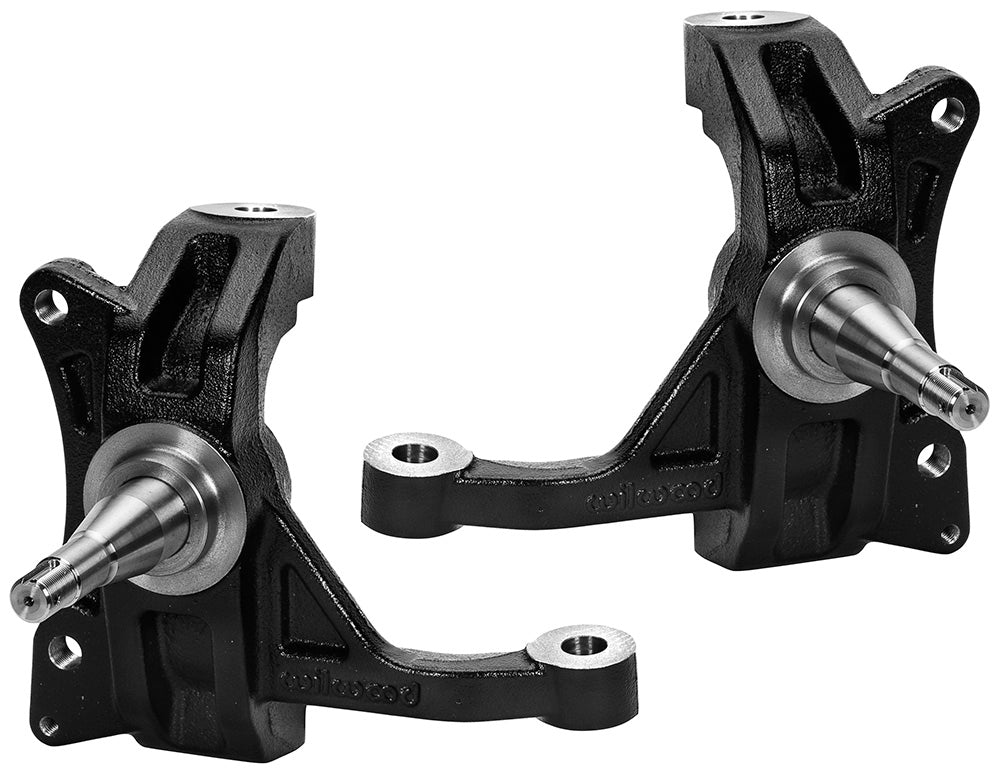

PRO SPINDLE PAIR,71-87 C10,2.5" DROP,STEEL

PAIR OF BRAND NEW WILWOOD 2.5" DROP PROSPINDLES FOR GM PICKUPS & SUVS WITH COMPATIBLE WILWOOD BRAKES (PART #831-15932).

WILWOODS C10 STEEL PROSPINDLE KITS CONTAIN A PAIR OF ONE PIECE SPINDLES AND INTEGRATED STEERING ARMS FOR 71-87 CHEVROLET & GMC 2WD C10/C15 PICKUPS AND SUBURBANS. SPECIFICALLY DESIGNED FOR USE WITH WILWOODS DISC BRAKE KITS AND WITH A 2.50" DROP FOR A MORE AGGRESSIVE STANCE WITHOUT AFFECTING STEERING GEOMETRY. CONSTRUCTED FROM A PROPRIETARY GRADE OF CAST STEEL WITH A TRADITIONAL BEARING SNOUT THAT SUPPORTS WILWOOD KIT SPECIFIC HUBS IN BOTH 5 X 4.75" AND 5 X 5.00" OR 6 X 5.50" WHEEL BOLT CIRCLES.

NOTE: THIS PROSPINDLE KIT FITS THE FOLLOWING CARS WHEN USED WITH THESE COMPATIBLE WILWOOD BRAKE KITS:

• FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT KITS WITH 12.19" ROTORS (5 LUG)
• FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT KITS WITH 13.06" ROTORS (5 LUG)
• FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT KITS WITH 12.19" ROTORS (6 LUG)
• FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT KITS WITH 13.06" ROTORS (6 LUG)

NOTE: MODEL YEARS 1971-1972 WILL REQUIRE UPDATING TO 1973-1987 BALL JOINTS FOR PROPER FITMENT TO THIS PROSPINDLE

COMPATIBLE WITH:

• CHEVROLET:
• 1971-1986 C10 PICKUP, 2WD*
• 1987 R10 PICKUP, 2WD
• 1971-1986 C10 SUBURBAN, 2WD*
• 1987 R10 SUBURBAN, 2WD
• 1971-1982 BLAZER, 2WD*
• *MODEL YEARS 1971-1972 REQUIRE UPDATING TO 1973-87 C10/C15 UPPER & LOWER BALL JOINTS, WHICH ARE NOT INCLUDED*
• GMC:
• 1971-1986 C15/C1500 PICKUP, 2WD*
• 1987 R1500 PICKUP, 2WD
• 1971-1986 C15/C1500 SUBURBAN, 2WD*
• 1987 R1500 SUBURBAN, 2WD
• 1971-1982 JIMMY, 2WD*
• *MODEL YEARS 1971-1972 REQUIRE UPDATING TO 1973-87 C10/C15 UPPER & LOWER BALL JOINTS, WHICH ARE NOT INCLUDED*

COMPLETE KIT WEIGHS APPROXIMATELY 36 LBS.
