WWE PRO SPINDLE PAIR,71-87 C10,2.5" DROP

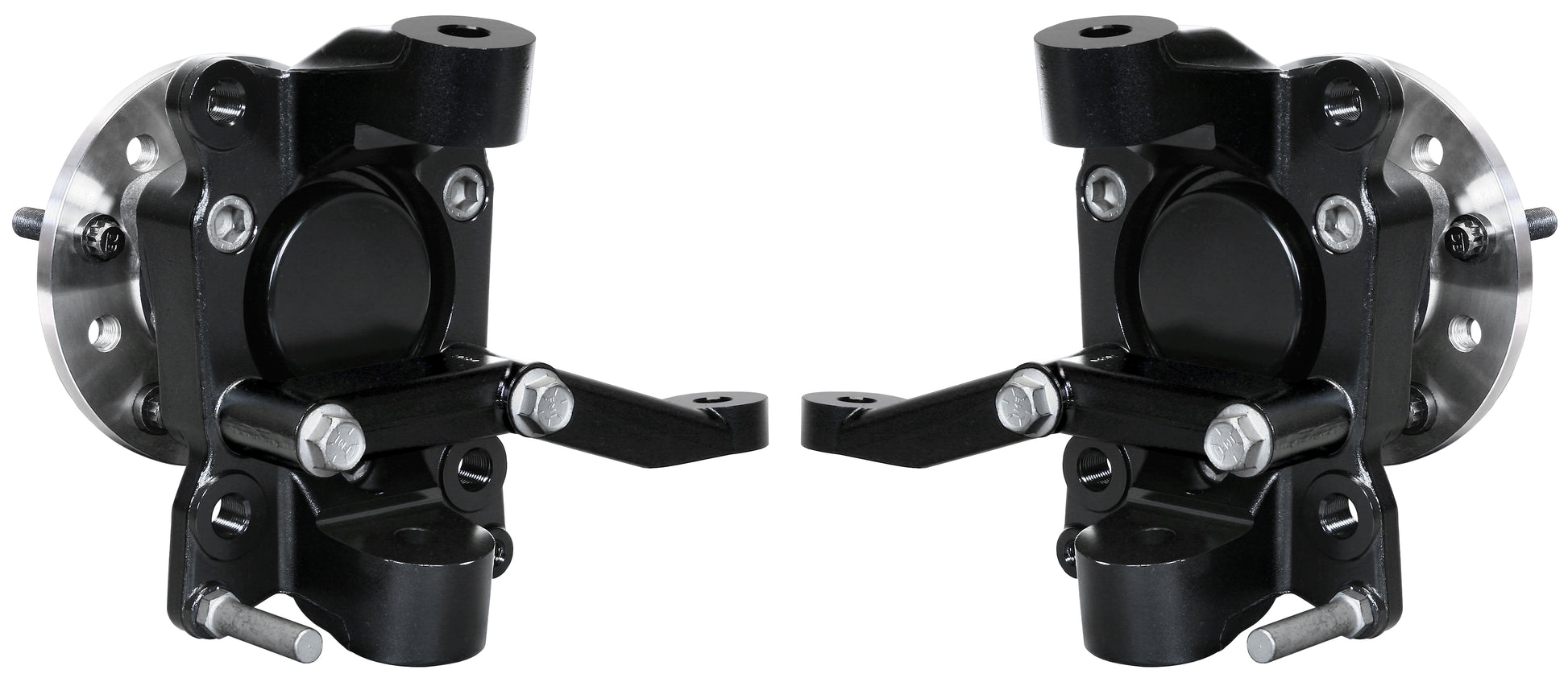

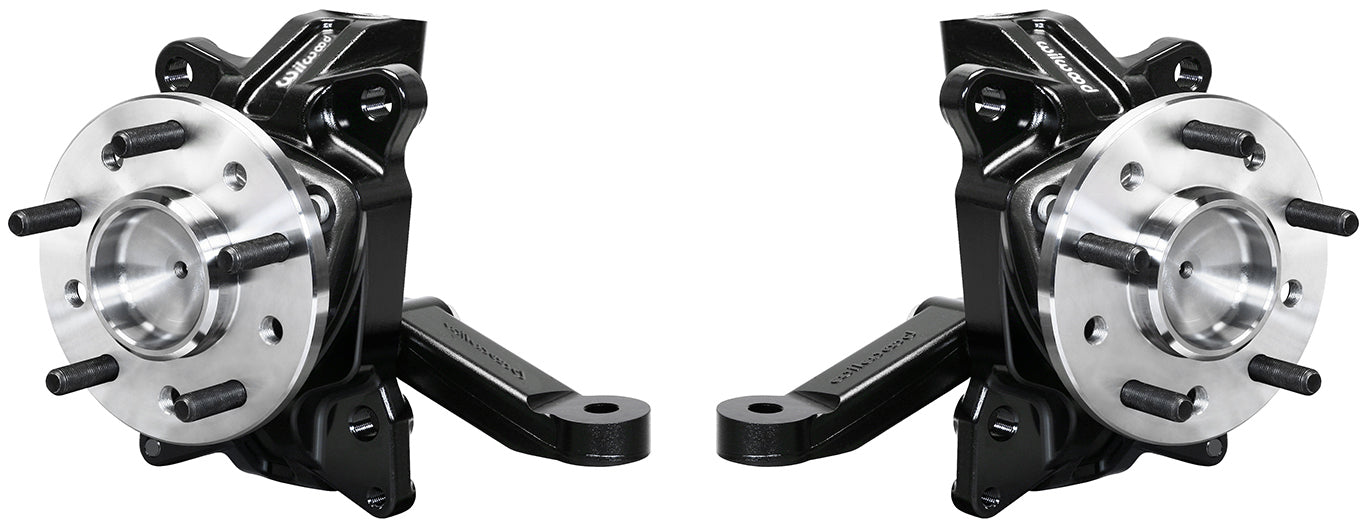

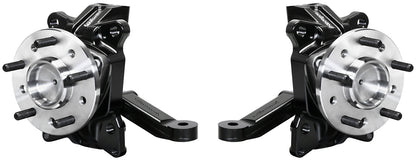

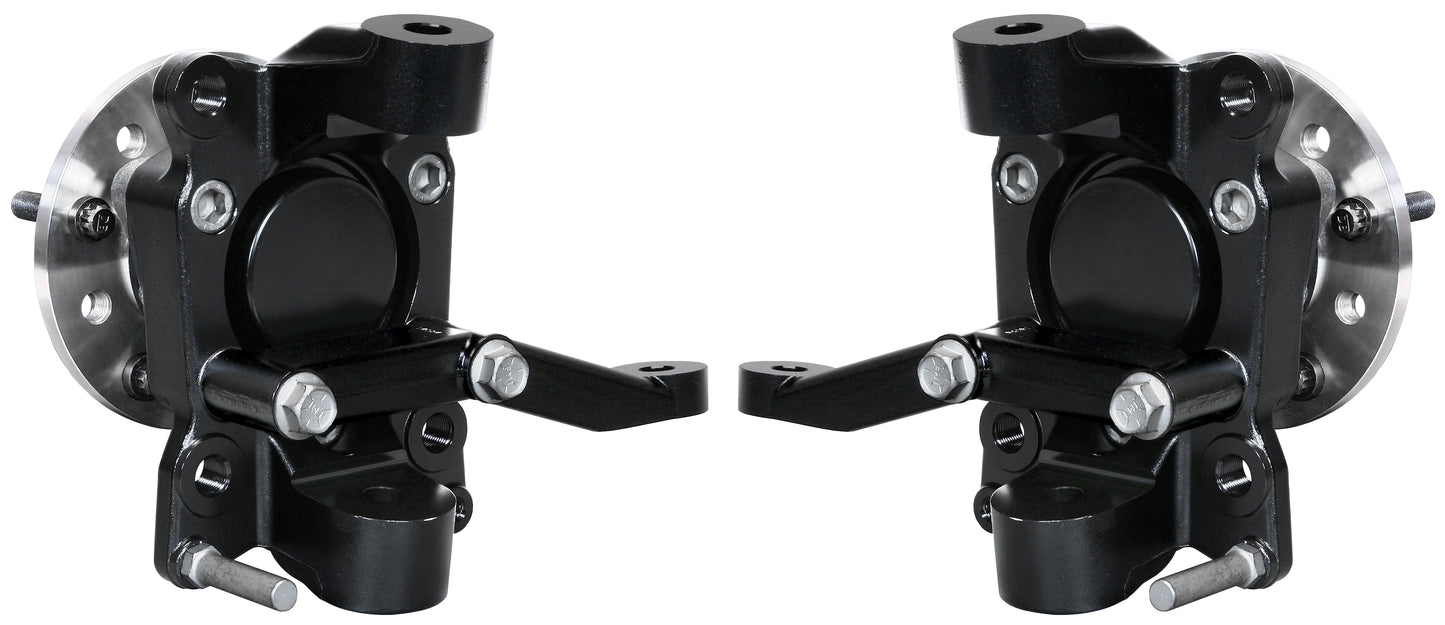

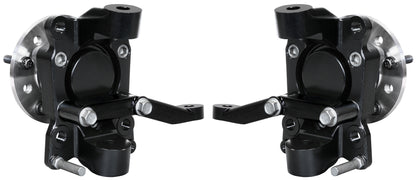

PAIR OF BRAND NEW WILWOOD WWE 2 1/2" DROP PROSPINDLES FOR 71-87 CHEVY C10 AND GMC C15 TRUCKS WITH SPECIFICALLY DESIGNED WILWOOD DISC BRAKES (PART #831-14202).

THIS INCLUDES THE 2 1/2" DROP MODULAR SPINDLES, STEERING ARMS, HUBS, AND BOLTS FOR BOTH FRONT WHEELS.

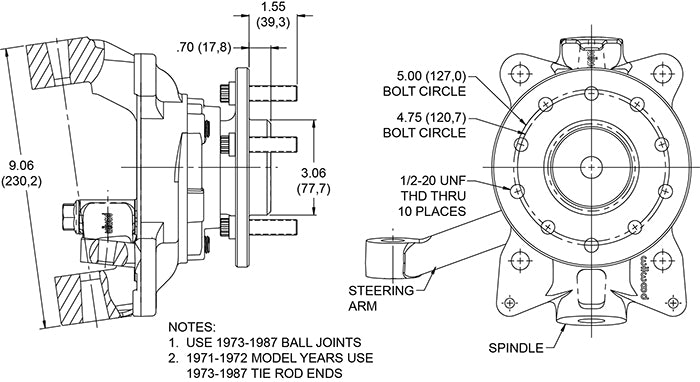

WILWOODS PROSPINDLES ARE SPECIFICALLY DESIGNED FOR USE WITH WILWOODS DISC BRAKE KITS. THEY HAVE A 2.50" DROP FOR A MORE AGGRESSIVE STANCE WITHOUT AFFECTING STEERING GEOMETRY. CONSTRUCTED FROM A PROPRIETARY GRADE OF FORGED ALUMINUM WITH AN INTEGRATED MODULAR BEARING HUB ASSEMBLY THAT SUPPORTS BOTH 5 X 4.75" AND 5 X 5.00" WHEEL BOLT CIRCLES. DIRECT MOUNTING FOR RADIAL CALIPER BRACKETS CREATE STRONG, ZERO-FLEX PLATFORM FOR BRAKE MOUNTING.

PRO SPINDLE FEATURES:

• 2.50" DROP IMPROVES HANDLING AND DELIVERS A CUSTOM LOWERED STANCE
• BLACK E-COATING FINISH
• 1/2"-20 WHEEL STUDS

FITMENT:

• CHEVY:
• 1971-1987 C10 2WD TRUCKS*
• 1971-1987 C10 2WD SUBURBANS*
• *1971-1972 MODELS REQUIRE THE USE OF 73-87 C10 UPPER AND LOWER BALL JOINTS & TIE ROD ENDS, WHICH ARENT INCLUDED*
• GMC:
• 1971-1987 C15/C1500 2WD TRUCKS*
• 1971-1987 C15/C1500 2WD SUBURBANS*
  • *1971-1972 MODELS REQUIRE THE USE OF 73-87 C10 UPPER AND LOWER BALL JOINTS & TIE ROD ENDS, WHICH ARENT INCLUDED*
• THESE SPINDLE SETS ARE DESIGNED TO BE USED ONLY WITH THE WILWOOD BRAKES THAT ARE SHOWN BELOW IN SEVERAL DIFFERENT CONFIGURATIONS:
  • WITH 12" ROTORS AND 4 PISTON CALIPERS
  • WITH 13" ROTORS AND 6 PISTON CALIPERS
  • WITH 14" ROTORS AND 6 PISTON CALIPERS
