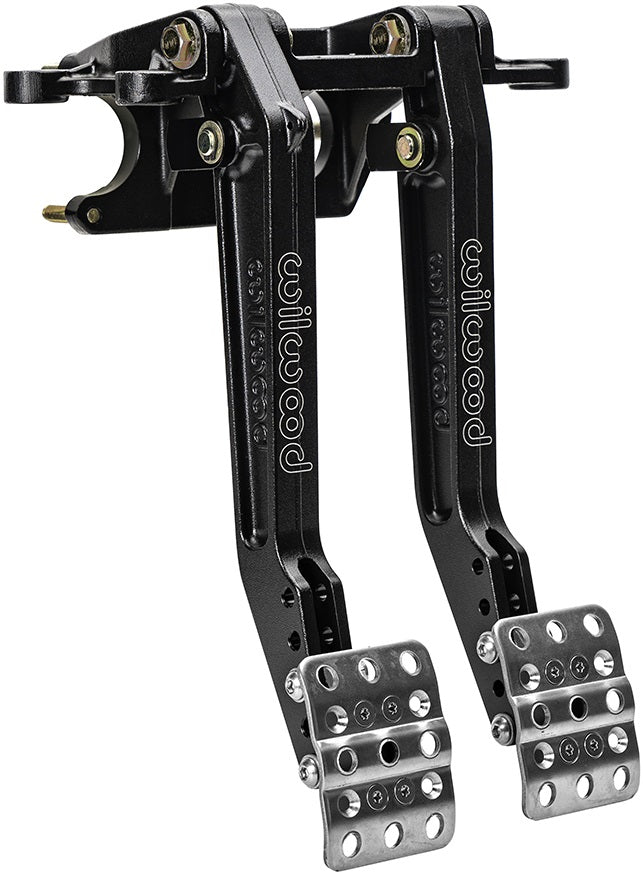

ADJUSTABLE DUAL FORWARD MOUNT SWING PEDAL,SINGLE BRAKE MASTER CYLINDER,ADJ RATIO

BRAND NEW WILWOOD SWING MOUNT TANDEM BRAKE & CLUTCH PEDAL, BLACK FINISH, ADJUSTABLE RATIO, FORWARD FACING MOUNT

ADJUSTABLE RATIO BRAKE PEDAL AND CLUTCH PEDAL COMBO, IN A FORWARD SWING HANGING ASSEMBLY. PEDAL HEAD ADJUSTS VERTICALLY TO PROVIDE A 6.25, 6.63, OR 7.00:1 RATIO FOR MORE FEEL OR LESS PEDAL EFFORT. A CLUTCH MASTER CYLINDER AND TANDEM BRAKE MASTER CYLINDER MOUNT TO THE ASSEMBLY THROUGH THE FIREWALL. THE NON-SKID WAFFLED PEDAL PADS CAN BE LATERALLY ADJUSTED TO BE FROM 3 TO 5 INCHES ON CENTER FOR DRIVER PREFERENCE.

THE PEDALS FEATURE A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARMS. A PIN AND CLEVIS PUSHROD ATTACHMENT SYSTEM ENSURES THE SMALLEST POSSIBLE MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. THIS PEDAL ACCEPTS A 2.25 INCH VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDER FOR THE CLUTCH, AND A WILWOOD 3.25 INCH HORIZONTAL FLANGE TANDEM MASTER CYLINDER FOR THE BRAKES.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: SWING
• MOUNT FACING: FORWARD
• BALANCE BAR: NO
• PEDAL 1 RATIO: 6.25-7:1
• PEDAL 2 RATIO: 6.25-7:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PEDAL KIT HERE.
