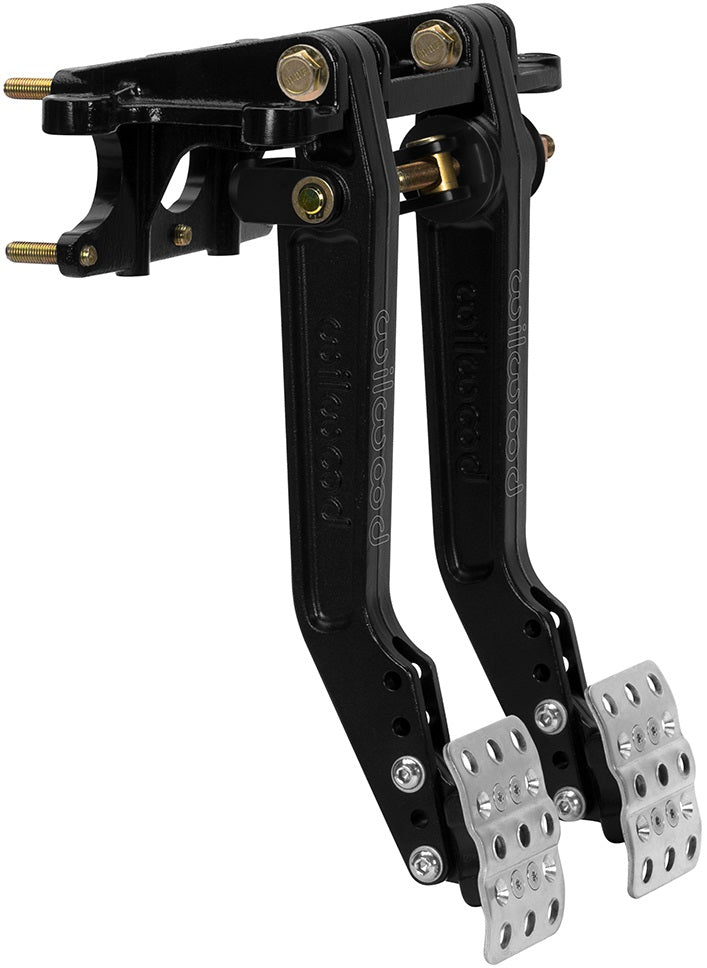

ADJUSTABLE DUAL FORWARD MOUNT SWING PEDAL,TRIPLE MASTER CYLINDER,ADJ. RATIO

BRAND NEW WILWOOD SWING MOUNT BRAKE & CLUTCH PEDAL WITH BALANCE BAR, BLACK FINISH, ADJUSTABLE RATIO, FORWARD FACING MOUNT

ADJUSTABLE RATIO BALANCE BAR BRAKE PEDAL AND CLUTCH PEDAL COMBO, IN A FORWARD SWING HANGING ASSEMBLY. PEDAL HEAD ADJUSTS VERTICALLY TO PROVIDE A 5.50, 5.88, OR 6.25:1 RATIO FOR MORE FEEL OR LESS PEDAL EFFORT. A CLUTCH MASTER CYLINDER AND TWO BRAKE MASTER CYLINDERS MOUNT TO THE ASSEMBLY THROUGH THE FIREWALL, WITH AN ADJUSTABLE BALANCE BAR PROVIDING FRONT TO REAR BRAKE BIAS FINE TUNING. THE NON-SKID WAFFLED PEDAL PADS CAN BE LATERALLY ADJUSTED TO BE FROM 3 TO 5 INCHES ON CENTER FOR DRIVER PREFERENCE.

THE PEDALS FEATURE A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARMS. THE BALANCE BAR INCORPORATES A POSITIVE DETENT STOP EVERY FULL TURN TO MAINTAIN ADJUSTMENT POSITION & CAN BE LOCKED IN PLACE WITH INCLUDED JAM NUT, OR USED WITH AN OPTIONAL REMOTE KNOB FOR QUICK ON-TRACK ADJUSTMENTS. A PIN & CLEVIS PUSHROD ATTACHMENT SYSTEM ENSURES THE SMALLEST POSSIBLE MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. ACCEPTS ANY THREE WILWOOD 2.25 INCH VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDERS.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: SWING
• MOUNT FACING: FORWARD
• BALANCE BAR: YES
• PEDAL 1 RATIO: 5.5-6.25:1
• PEDAL 2 RATIO: 5.5-6.25:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PEDAL KIT HERE.
