BRAKE OR CLUTCH PEDAL,SWING,6.25-7:1,W/ MASTER CYLINDER,3/4"

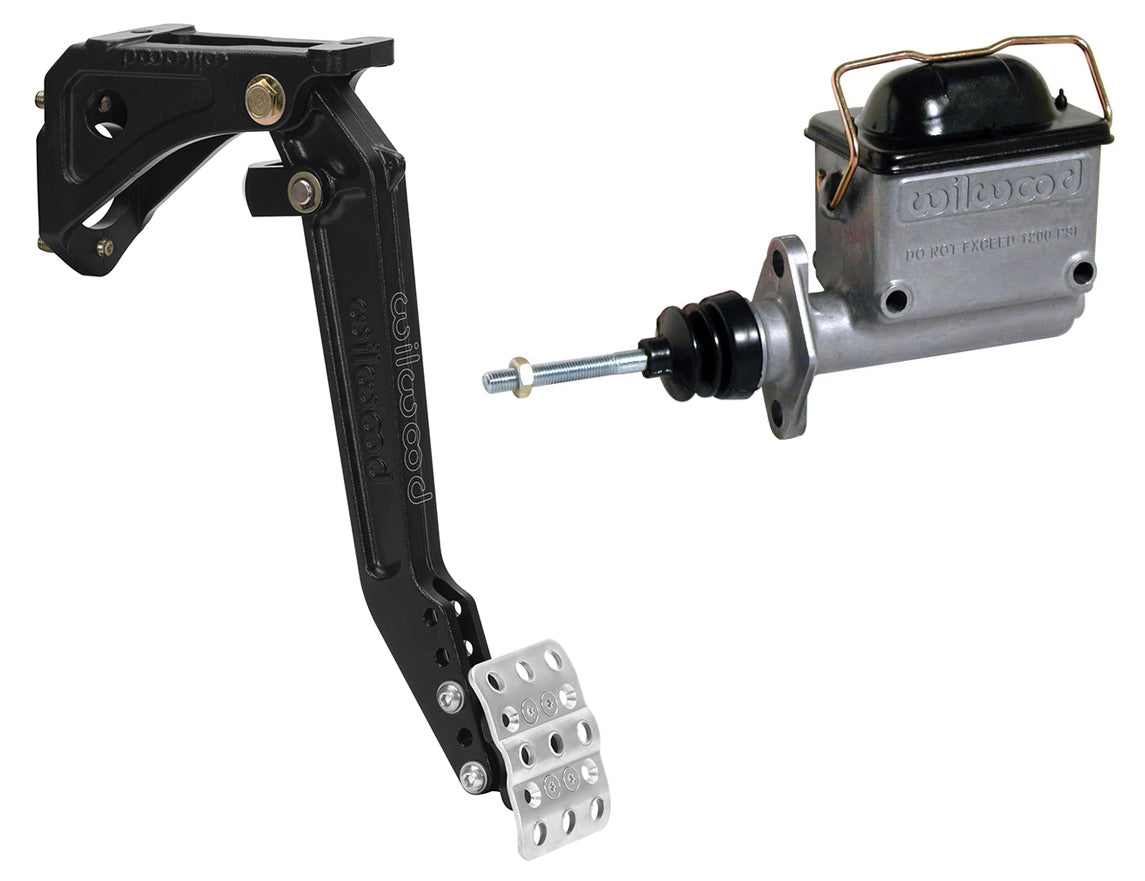

Brand New Wilwood Swing Mount Pedal Assembly with Master Cylinder.

Note: This pedal kit includes a 3/4" master cylinder by default. We also have the 7/8" and 1" available as well. If you would like to change the master cylinder to a 7/8" or 1", let us know when you order.

Kit includes:

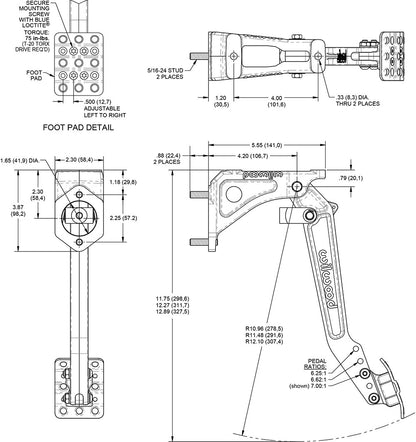

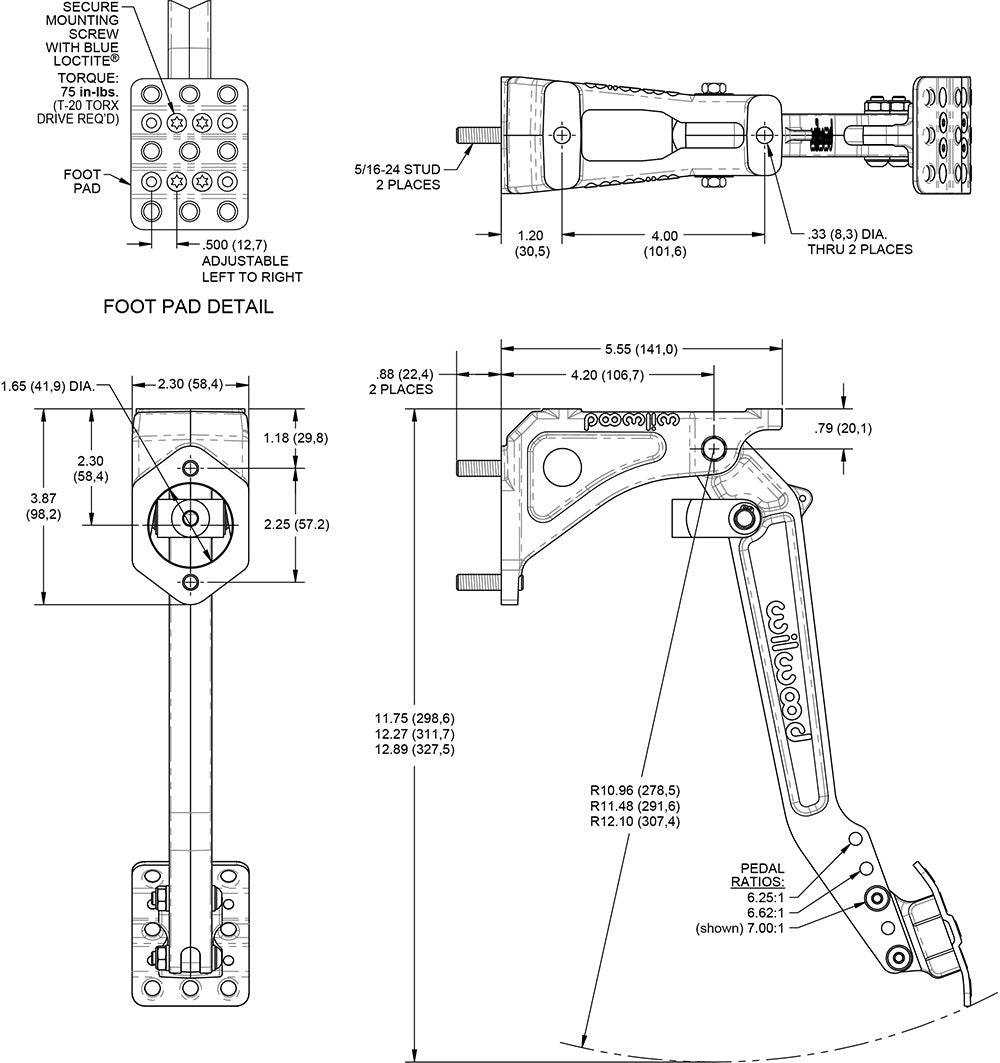

• Wilwood Swing Mount Clutch / Brake Pedal - Adjustable 6.25-7:1 Ratio (#340-16381):
• Adjustable ratio single clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel.
• Material: Aluminum
• Finish: Black E-coat
• Mount Loc: Swing
• Mount Facing: Forward
• Balance Bar: No
• Pedal Ratio: 6.25-7:1
• Wilwood High Volume Aluminum Master Cylinder - 3/4" (#260-6764):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 3/4"
• Area (in²): 0.440
• Stroke: 1.43
• Volume (cu in): 0.62
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80

You can view and download the complete assembly instruction booklet here.
