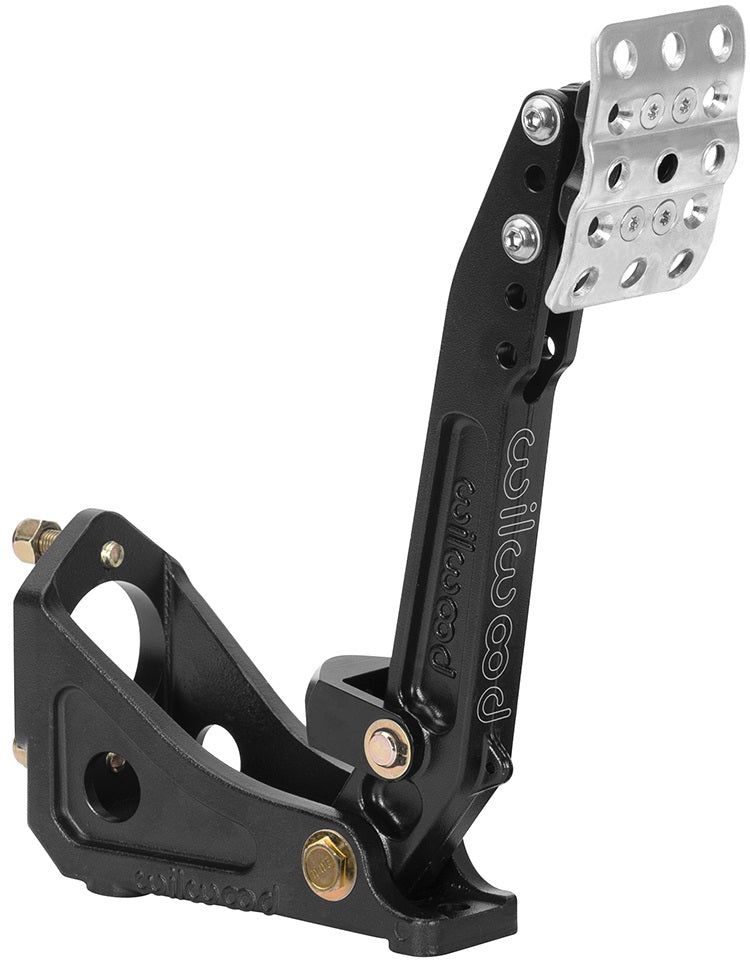

BRAKE OR CLUTCH PEDAL,FLOOR MOUNT WITH CLEVIS,ADJUSTABLE RATIO

BRAND NEW WILWOOD FLOOR MOUNT CLUTCH/BRAKE PEDAL, BLACK FINISH, ADJUSTABLE RATIO, FORWARD FACING MOUNT

ADJUSTABLE RATIO SINGLE CLUTCH PEDAL, IN A FLOOR MOUNT ASSEMBLY. PEDAL HEAD ADJUSTS VERTICALLY TO PROVIDE A 5.25, 5.63, OR 6.00:1 RATIO FOR MORE FEEL OR LESS PEDAL EFFORT. THE NON-SKID WAFFLED PEDAL PAD CAN BE LATERALLY ADJUSTED 1/2 INCH IN EITHER DIRECTION FOR DRIVER PREFERENCE.

THE PEDAL FEATURES A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARM. A PIN AND CLEVIS PUSHROD ATTACHMENT SYSTEM ENSURES THE SMALLEST POSSIBLE MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. THIS PEDAL ACCEPTS WILWOOD 2.25 INCH VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDERS.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: FLOOR
• MOUNT FACING: FORWARD
• BALANCE BAR: NO
• PEDAL 1 RATIO: 5.25-6:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PEDAL KIT HERE.
