BRAKE OR CLUTCH PEDAL,SWING,7:1,W/ MASTER CYLINDER,3/4"

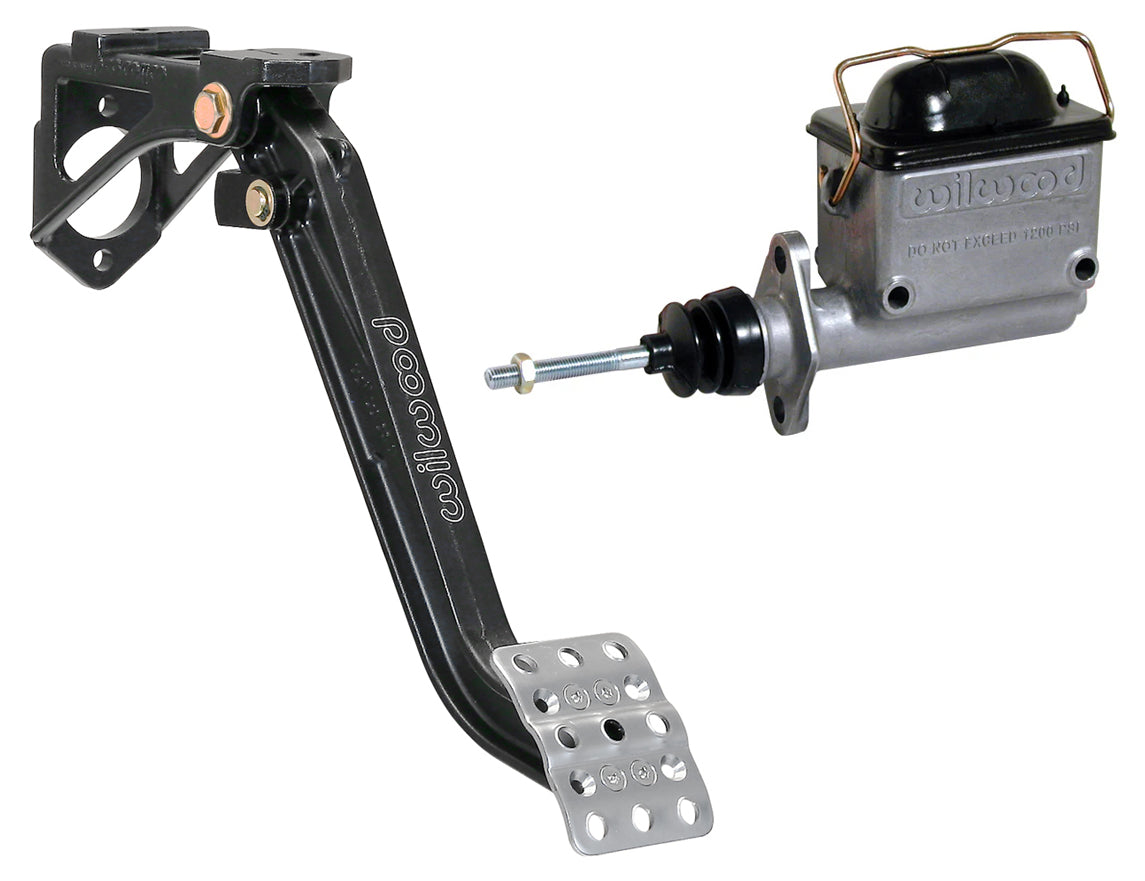

Brand New Wilwood Swing Mount Pedal Assembly with Master Cylinder.

Note: This pedal kit includes a 3/4" master cylinder by default. We also have the 7/8" and 1" available as well. If you would like to change the master cylinder to a 7/8" or 1", let us know when you order.

Kit includes:

• Wilwood Swing Mount Clutch / Brake Pedal - 7:1 Ratio (#340-13834):
• This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary.
• Material: Aluminum
• Finish: Black E-coat
• Mount Loc: Swing
• Mount Facing: Forward
• Balance Bar: No

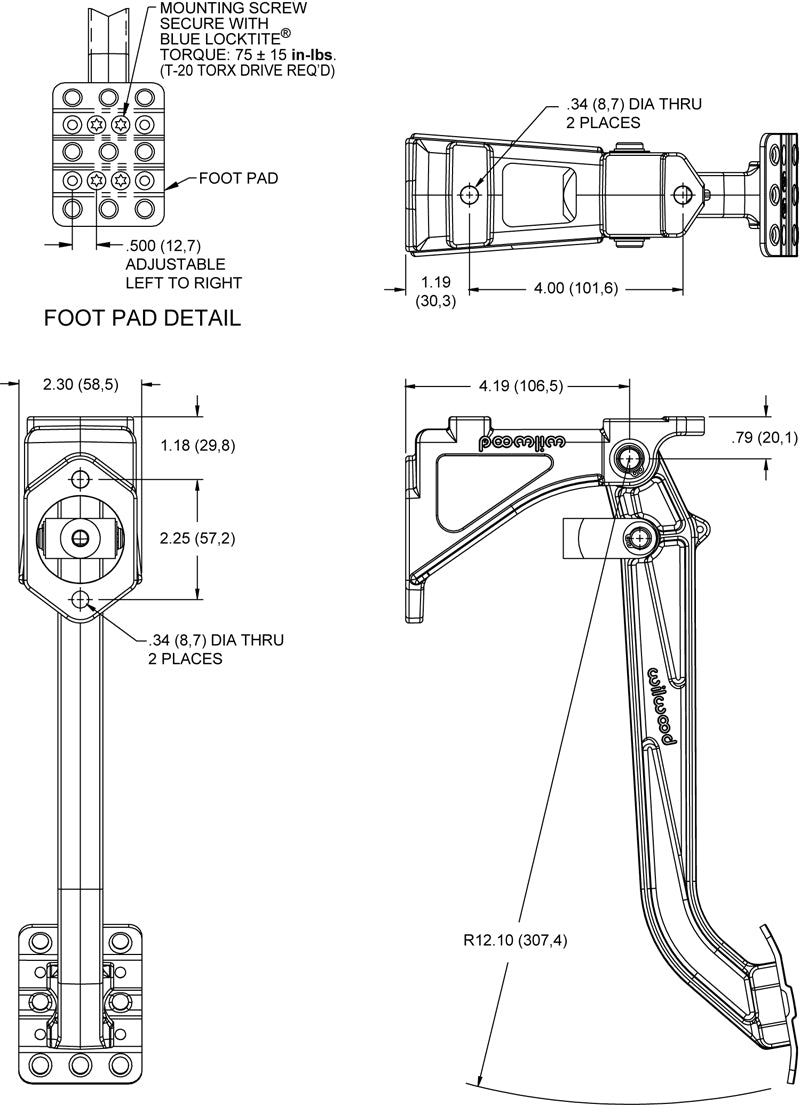

• Mount Length (in): 12.89
• Pedal Ratio: 7.0 to 1
• Pedal Length (in): 12.10
• Wilwood High Volume Aluminum Master Cylinder - 3/4" (#260-6764):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 3/4"
• Area (in²): 0.440
• Stroke: 1.43
• Volume (cu in): 0.62
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80

You can view and download the complete assembly instruction booklet here.
