BRAKE OR CLUTCH PEDAL,SWING MOUNT WITH CLEVIS,LONG

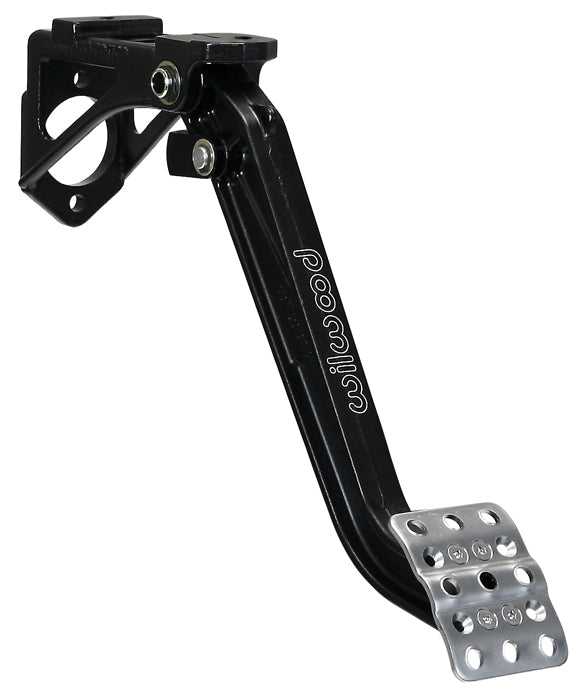

BRAND NEW WILWOOD FORWARD SWING MOUNT CLUTCH PEDAL OR BRAKE PEDAL (WILWOOD PART #340-13834).

THIS SWINGING MOUNT PEDAL ASSEMBLY MOUNTS A SINGLE BRAKE OR CLUTCH MASTER CYLINDER IN A FORWARD POSITION OUTSIDE THE FIREWALL. IT FEATURES A LIGHTWEIGHT ALUMINUM FRAME, WITH A HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED 7:1 RATIO PEDAL ARM. THE NON-SKID WAFFLED PEDAL PAD CAN BE LATERALLY ADJUSTED FOR DRIVER PREFERENCE OR CLEARANCE AS NECESSARY. THIS PEDAL ACCEPTS ANY WILWOOD VERTICAL MOUNT FLANGE SINGLE OR TANDEM OUTLET MASTER CYLINDER. HORIZONTAL MOUNT FLANGE MASTER CYLINDERS REQUIRE AN ADAPTER KIT. MASTER CYLINDERS ARE ORDERED SEPARATELY BY STYLE AND BORE SIZE.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: SWING
• MOUNT FACING: FORWARD
• BALANCE BAR: NO
• MOUNT LENGTH (IN): 12.89
• PEDAL 1 RATIO 7.0 TO 1
• PEDAL 1 LENGTH (IN): 12.10

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
