BRAKE PEDAL ASSEMBLY,FLOOR,BALANCE BAR,6:1,DUAL M/C,7/8" & 1"

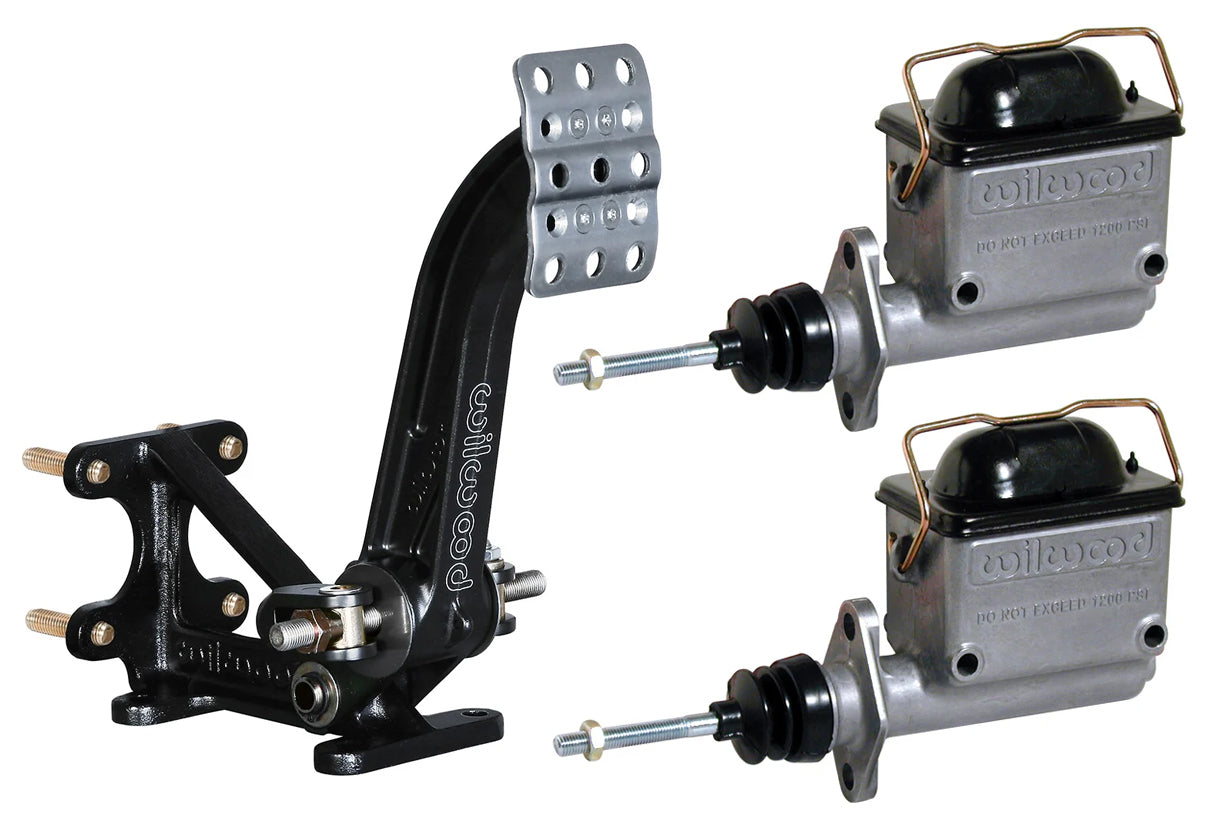

Brand New Wilwood Floor Mount Brake Pedal Assembly with Dual Master Cylinders.

Note: This pedal kit includes (1) 7/8" and (1) 1" master cylinder by default, but we also have the 3/4" available as well. If you would like to change to a different combination of master cylinders, let us know when you order.

Kit includes:

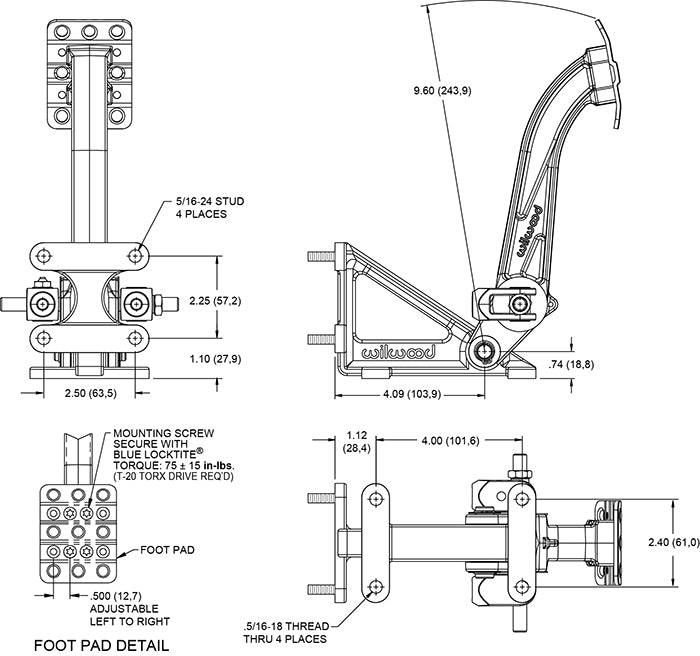

• Wilwood Floor Mount Brake Pedal - 6:1 Ratio (#340-13831):
• This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments.
• Material: Aluminum
• Finish: Black E-coat
• Mount Loc: Floor
• Mount Facing: Forward
• Balance Bar: Yes
• Mount Length (in): 10.34
• Pedal Ratio: 6.0 to 1
• Pedal Length (in): 9.60
• Wilwood High Volume Aluminum Master Cylinder - 7/8" (#260-6765):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 7/8"
• Area (in²): 0.600
• Stroke: 1.43
• Volume (cu in): 0.85
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80
• Wilwood High Volume Aluminum Master Cylinder - 1" (#260-6766):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 1"
• Area (in²): 0.780
• Stroke: 1.43
• Volume (cu in): 1.11
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80

You can view and download the complete assembly instruction booklet here.
