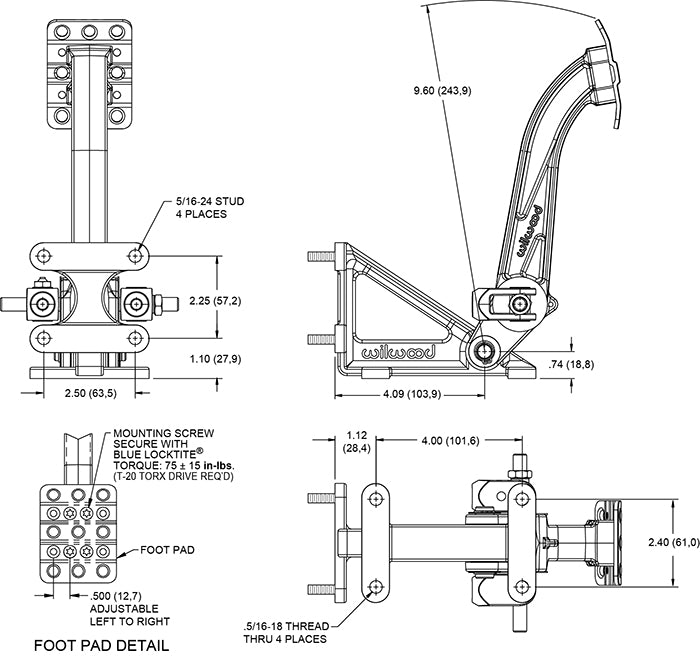

BRAKE PEDAL ASSEMBLY,FLOOR,WITH BALANCE BAR,6:1,SHORT

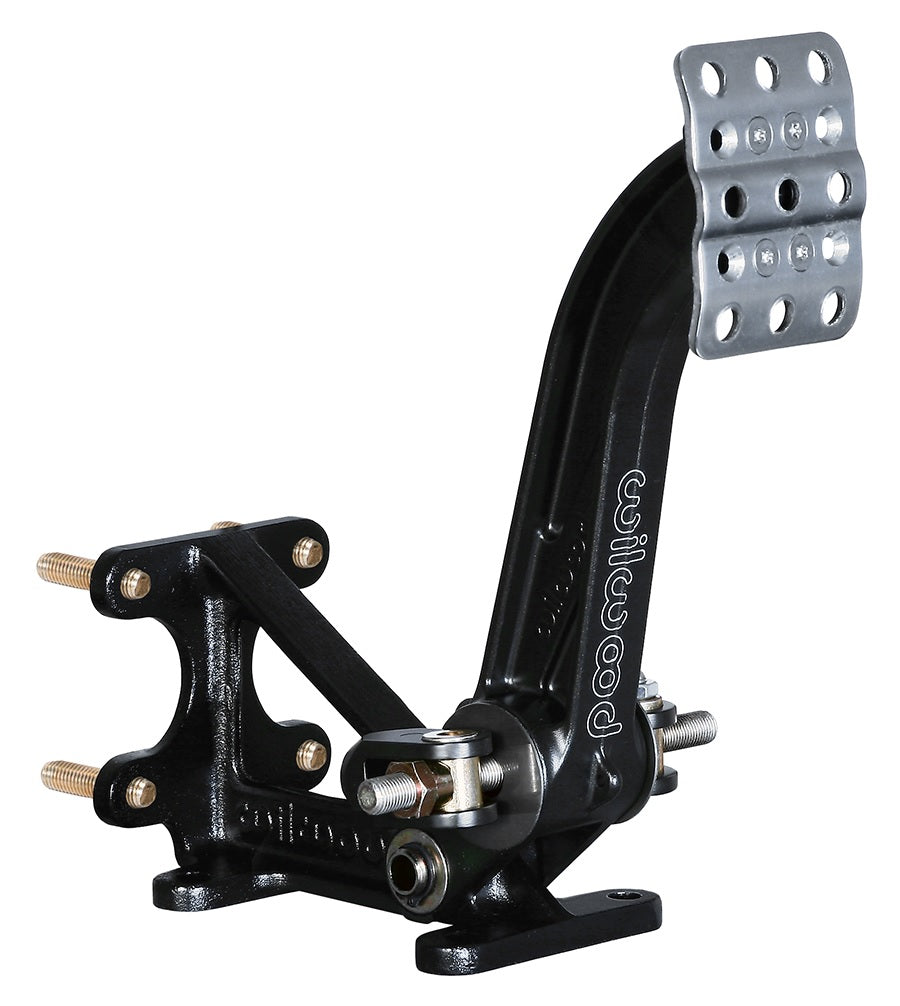

BRAND NEW WILWOOD FLOOR MOUNT BRAKE PEDAL (WILWOOD PART #340-13831).

THIS FLOOR MOUNT PEDAL ASSEMBLY MOUNTS TWO SINGLE OUTLET BRAKE MASTER CYLINDERS IN A FORWARD POSITION OUTSIDE THE FIREWALL. IT FEATURES A LIGHTWEIGHT ALUMINUM FRAME, WITH A HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED 6:1 RATIO PEDAL ARM. THE NON-SKID WAFFLED PEDAL PAD CAN BE LATERALLY ADJUSTED FOR DRIVER PREFERENCE OR CLEARANCE AS NECESSARY. THE BALANCE BAR INCORPORATES A POSITIVE DETENT STOP EVERY FULL TURN TO MAINTAIN ADJUSTMENT POSITION AND DRIVER AWARENESS. A PIN AND CLEVIS PUSHROD ATTACHMENT SYSTEM PROVIDES HIGHEST POSSIBLE DEGREE OF MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. THE BALANCE BAR CAN BE LOCKED IN PLACE WITH THE INCLUDED JAM NUT, OR USED WITH AN OPTIONAL REMOTE CABLE FOR QUICK ON-TRACK ADJUSTMENTS. THIS PEDAL ACCEPTS ANY WILWOOD VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDERS THAT ARE ORDERED SEPARATELY BY STYLE AND BORE SIZE.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: FLOOR
• MOUNT FACING: FORWARD
• BALANCE BAR: YES
• MOUNT LENGTH (IN): 10.34
• PEDAL 1 RATIO 6.0 TO 1
• PEDAL 1 LENGTH (IN): 9.60

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
