BRAKE CLUTCH & THROTTLE PEDAL,FLOOR,5.25:1,THROTTLE LINK,3 M/C,3/4",7/8",1"

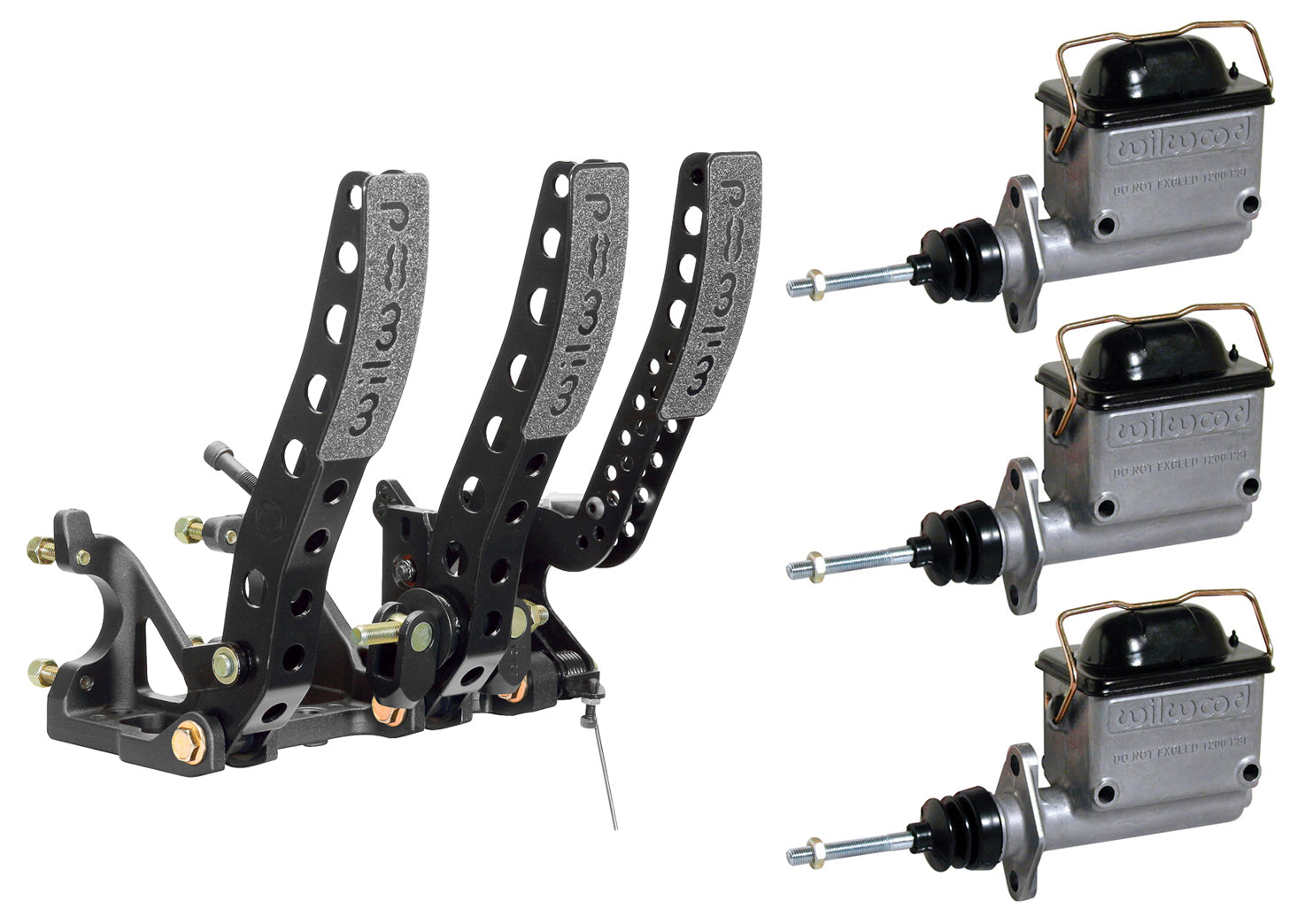

Brand New Wilwood Floor Mount Brake, Clutch, & Throttle Pedal Assembly with Three Master Cylinders.

Note: This pedal kit includes (1) 3/4", (1) 7/8", and (1) 1" master cylinder by default, but we can do any combination of those three. If you would like to change to a different combination of master cylinders, let us know when you order.

Note: Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly.

Kit includes:

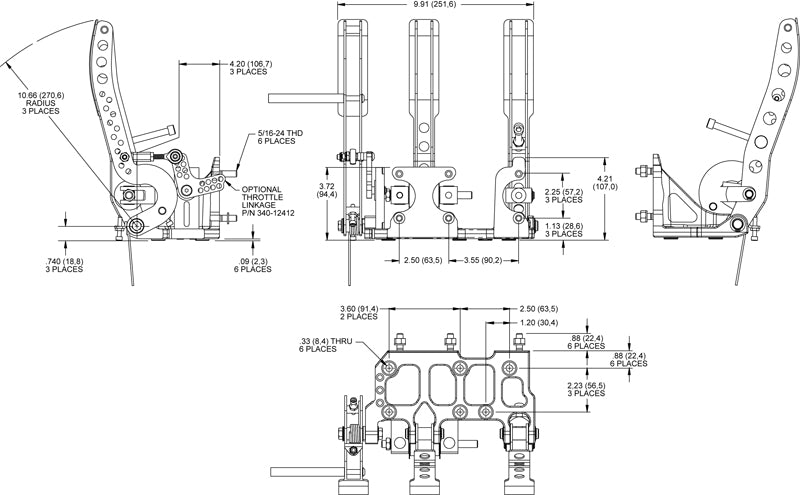

• Wilwood Floor Mount Brake, Clutch, & Throttle Pedal - 5.25:1 Ratio (#340-12411):
• Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
• Material: Aluminum
• Finish: Black E-coat
• Mount Loc: Floor
• Mount Facing: Forward
• Balance Bar: Yes
• Mount Length (in): 11.40
• Pedal Ratio: 5.25 to 1
• Pedal Length (in): 10.66
• Wilwood High Volume Aluminum Master Cylinder - 3/4" (#260-6764):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 3/4"
• Area (in²): 0.440
• Stroke: 1.43
• Volume (cu in): 0.62
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80
• Wilwood High Volume Aluminum Master Cylinder - 7/8" (#260-6765):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 7/8"
• Area (in²): 0.600
• Stroke: 1.43
• Volume (cu in): 0.85
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80
• Wilwood High Volume Aluminum Master Cylinder - 1" (#260-6766):
• Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
• Bore Size: 1"
• Area (in²): 0.780
• Stroke: 1.43
• Volume (cu in): 1.11
• Outlets: 1
• Finish: Bare
• Res Type: Integral
• Res Size (oz): 8.2
• Res Size(cu in): 14.80

You can view and download the complete assembly instruction booklet here.
