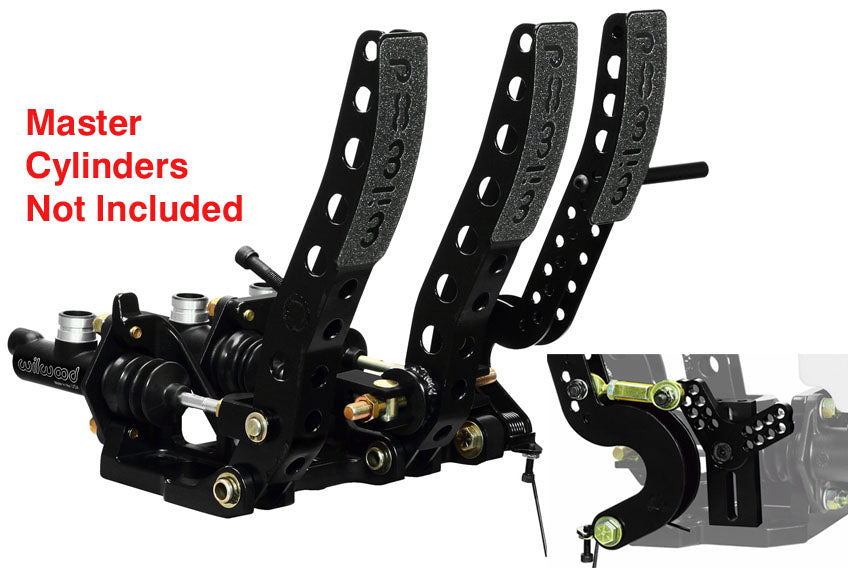

TRIPLE FLOOR MOUNT PEDAL ASSEMBLY WITH THROTTLE LINKAGE,FOR FRONT ENGINE CARS

BRAND NEW WILWOOD FLOOR MOUNT TRIPLE PEDAL ASSEMBLY WITH BRAKE, CLUTCH, AND GAS PEDALS, WITH THROTTLE LINKAGE, FOR FRONT ENGINE VEHICLES (WILWOOD PART # 340-12411).

THIS ASSEMBLY DOES NOT INCLUDE THE MASTER CYLINDERS, BUT WE HAVE SEVERAL DIFFERENT STYLES OF CYLINDERS AVAILABLE THAT WILL FIT THIS.

THIS PARTICULAR PEDAL SET IS FOR FRONT ENGINE VEHICLES ONLY, BECAUSE IT INCLUDES THE THROTTLE LINKAGE ASSEMBLY. WE HAVE THE PEDAL SET AVAILABLE HERE FOR REAR ENGINE VEHICLES THAT DOES NOT INCLUDE THE LINKAGE.

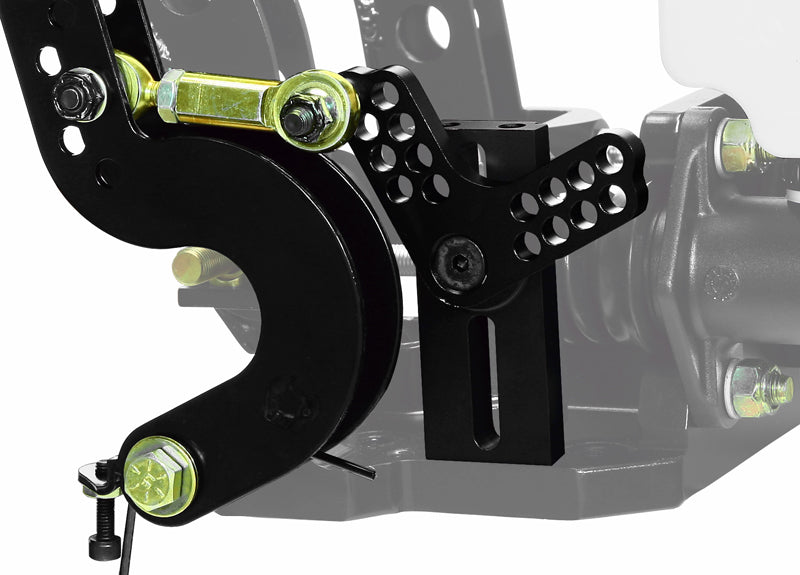

WILWOODS FLOOR MOUNT PEDAL ASSEMBLY HAS A BRAKE / CLUTCH / THROTTLE TRIPLE PEDAL DESIGN. THERE ARE THREE INDIVIDUAL FABRICATED STEEL PEDALS WITH NON-SLIP PEDAL PADS TO CONTROL BRAKE, CLUTCH AND THROTTLE. PEDAL ASSEMBLY PART NUMBER 340-12411 IS FOR FRONT ENGINE CARS AND INCLUDES A THROTTLE BELL CRANK AND LINKAGE. THIS UNIT FEATURES AN ALUMINUM FRAME WITH STRONG LIGHTWEIGHT FABRICATED STEEL PEDAL ARMS. THE FRAME AND THE PEDAL ARMS HAVE A BLACK E-COAT FINISH FOR PROTECTION AND AN ATTRACTIVE APPEARANCE. ALSO INCLUDED WITH THE PEDAL ASSEMBLY ARE MOUNTING STUDS, CLEVISES, AND BALANCE BAR ASSEMBLY THAT IS DESIGNED TO PROVIDE SMOOTH AND ACCURATE SETTINGS OF THE BRAKE PEDAL BIAS. THE BALANCE BAR CAN BE SET AND LOCKED DOWN WITH THE JAM NUT, OR ATTACHED TO A REMOTE CABLE FOR QUICK ON-TRACK ADJUSTMENTS.

FEATURES:
• LIGHTWEIGHT CONSTRUCTION
• INCLUDES ADJUSTABLE BRAKE BALANCE BAR AND CLEVIS
• BRAKE AND CLUTCH PEDALS HAVE 5.25:1 NOMINAL RATIO
• HIGH STRENGTH STEEL MASTER CYLINDER MOUNTING STUDS
• EASY MOUNTING LOCATION
• WILWOODS DURABLE BLACK E-COAT FINISH
• HIGH QUALITY HARDWARE
• FULLY ADJUSTABLE ALUMINUM PEDAL PADS WITH WAFFLE STYLE NON-SLIP SURFACE
• HIGH STRENGTH FORGED ALUMINUM LADDER STYLE PEDAL ARMS

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION BOOKLET FOR THIS ASSEMBLY HERE .
