TANDEM COMPACT MASTER CYLINDER & R/H PROP VALVE,MOPAR 4-BOLT,1" W/ ROD,BLACK

TANDEM COMPACT MASTER CYLINDER & R/H PROP VALVE,MOPAR 4-BOLT,1" W/ ROD,BLACK

WIL 261-17797-BK

$530.71
$530.71
View full details

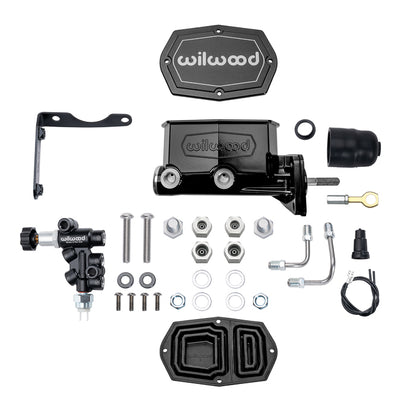

Brand New Wilwood Compact Tandem Master Cylinder with Black Finish, Right-Hand Bracket, Proportioning Valve, Pushrod, and 1" Bore Size (Part #261-17797-BK).

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's.

Fits:
  • Mopar:
    • 1960-1970s A-Body with 4 Bolt Firewall Mount
    • 1960-1970s B-Body with 4 Bolt Firewall Mount
    • 1960-1970s E-Body with 4 Bolt Firewall Mount

Note:

  • High temperature brake fluid recommended for racing applications.

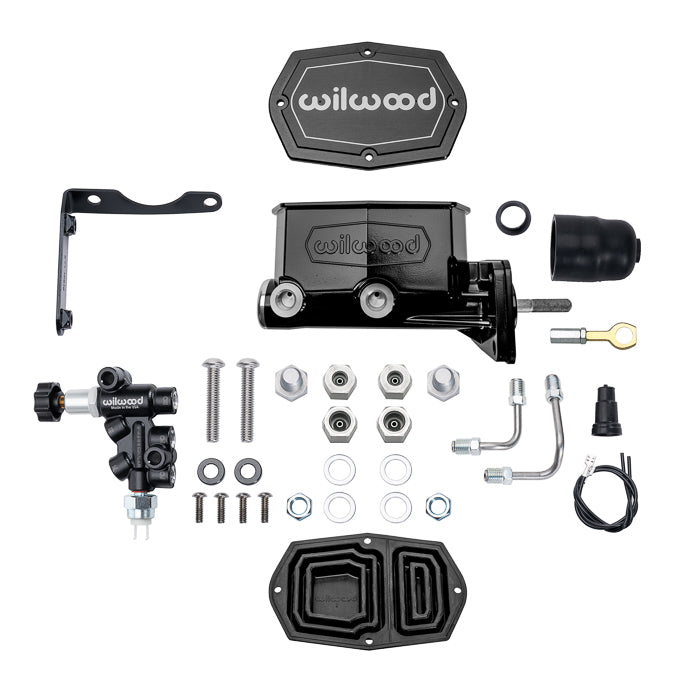

Includes:

  • Compact Tandem Chamber Master Cylinder
  • Combination Proportioning Valve
  • Right-Hand Mounting Bracket
  • Fluid Tubes
  • Pushrod
  • Mounting Hardware
Specs:
  • Bore Size: 1"
  • Area (In²): 0.69
  • Stroke: 1.10
  • Outlets: 2
  • Material: Aluminum
  • Finish: Black
  • Res Type: Integral
  • Res Size (Oz): 7.8 / 4.7
  • Res Size(Cu In): 14.0 / 8.5
  • Overall Length(in): 8.92"
  • Flange to End Length (in): 6.55"
  • Outlet Size 1 (in): 1/2-20
  • Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
  • Outlet Size 2 (in): 1/2-20
  • Outlet Fit 2 (in): 3/8-24 IF or 9/16-20 IF

You can view and download the assembly instruction booklet here.
