ANGLED TANDEM REMOTE MASTER CYLINDER & VALVE SET,1",CHROME

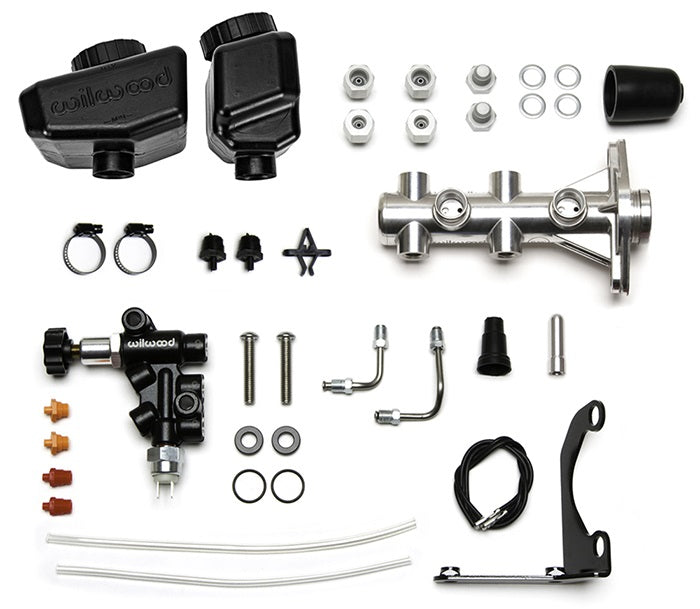

Brand New Wilwood  Chrome Powder-Coated 1" Bore Aluminum Remote Tandem Master Cylinder, GM-Style Angled Reservoirs, Combination Proportioning Valve, Bracket, & Mounting Hardware (Part #261-16962-P).

Wilwood has packaged the Remote Tandem Master Cylinder in a kit with the GM style angled reservoirs, Combination Proportioning Valve, mounting bracket, fluid tubes, and mounting hardware. Wilwood's Tandem Master Cylinders represent the latest in refinements in brake pressure actuation and fluid control, and the durable nylon reservoirs are designed so that the top is level when mounted at the 15° angle typical of GM power brake applications. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Rear brake circuit reservoir, closest to the booster, holds nearly 5 oz, while front brake reservoir holds 8 oz. both made of black plastic with black screw caps.

Fits:

• GM Power Brake Applications with 15 Degree Mounting Angle

Note:

• High temperature brake fluid recommended for racing applications.

Includes:

• Remote Tandem Master Cylinder
• Combination Proportioning Valve
• Mounting Bracket
• Fluid Tubes
• Mounting Hardware

Specs:

• Bore Size: 1"
• Area (in²): 0.780
• Stroke: 1.10
• Type: Tandem Outlet
• Outlets: 2
• Material: Aluminum
• Finish: Chrome Powder-Coat
• Res Type: Remote
• Res Size (oz): 7.8 / 4.7
• Res Size(cu in): 14.0 / 8.5
• Overall Length(in): 7.16"
• Flange to End Length (in): 6.56"
• Inlet Size (in): .87" or 11/16-20
• Outlet Size 1 (in): 1/2-20
• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
• Outlet Size 2 (in): 1/2-20
• Outlet Fit 2 (in): 3/8-24 IF or 9/16-18 IF

You can view and download the assembly instruction booklet here.
